Appendix C. Programming with PanaView
110 DigitalFlow™ GF868 Programming Manual (1-Channel)
C.6 Changing Meter Settings (cont.)

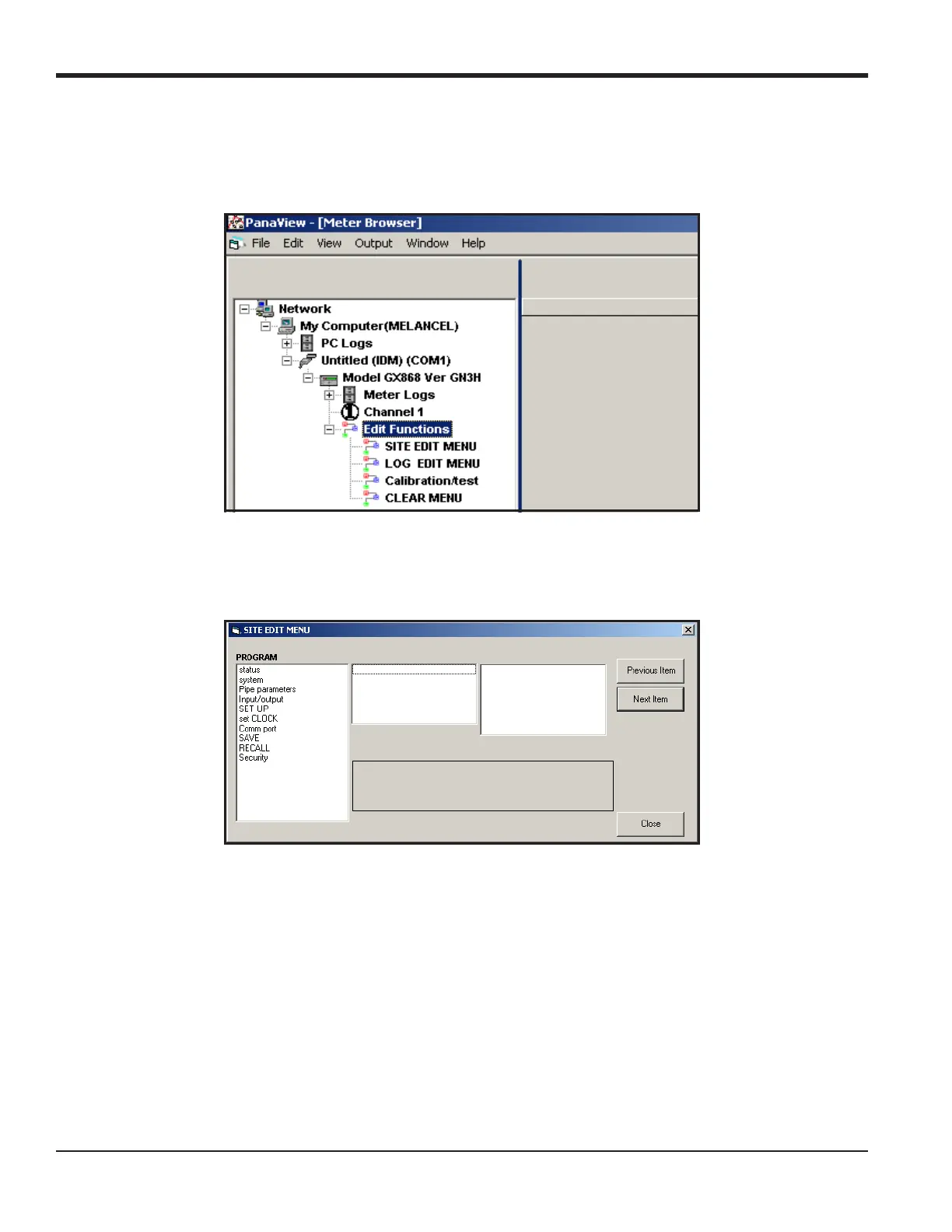

4. From the meter tree, expand the Edit Functions option. The window now appears similar to Figure 35, with a list of
available menus. The menus listed are those available on the meter.
Figure 35: Meter Tree with Edit Functions Option
5. To open a particular menu, double-click on that menu on the tree. For example, if you double-click on the Site Edit
Menu, a window opens similar to Figure 36.
Figure 36: The Site Edit Menu Window
Note: The options listed in the left pane correspond to the options available in the GX868 PROGRAM menus. For
more information about the options in your instrument program and about appropriate parameters for the
GF868, consult the previous chapters in this manual.
