DigitalFlow™ GF868 Programming Manual (1-Channel) 111
Appendix C. Programming with PanaView
C.6 Changing Meter Settings (cont.)
6. To enter a particular option:
a. Highlight and double-click on the desired option in the left pane. Figure 37 shows the first entry (Transducer
Number) in the Pipe parameters option. The title above the center pane lists the current entry, while the center
pane displays the available selections for that entry.
b. Click on the desired choice; if the entry requires a numeric value, change the value displayed in the right pane.

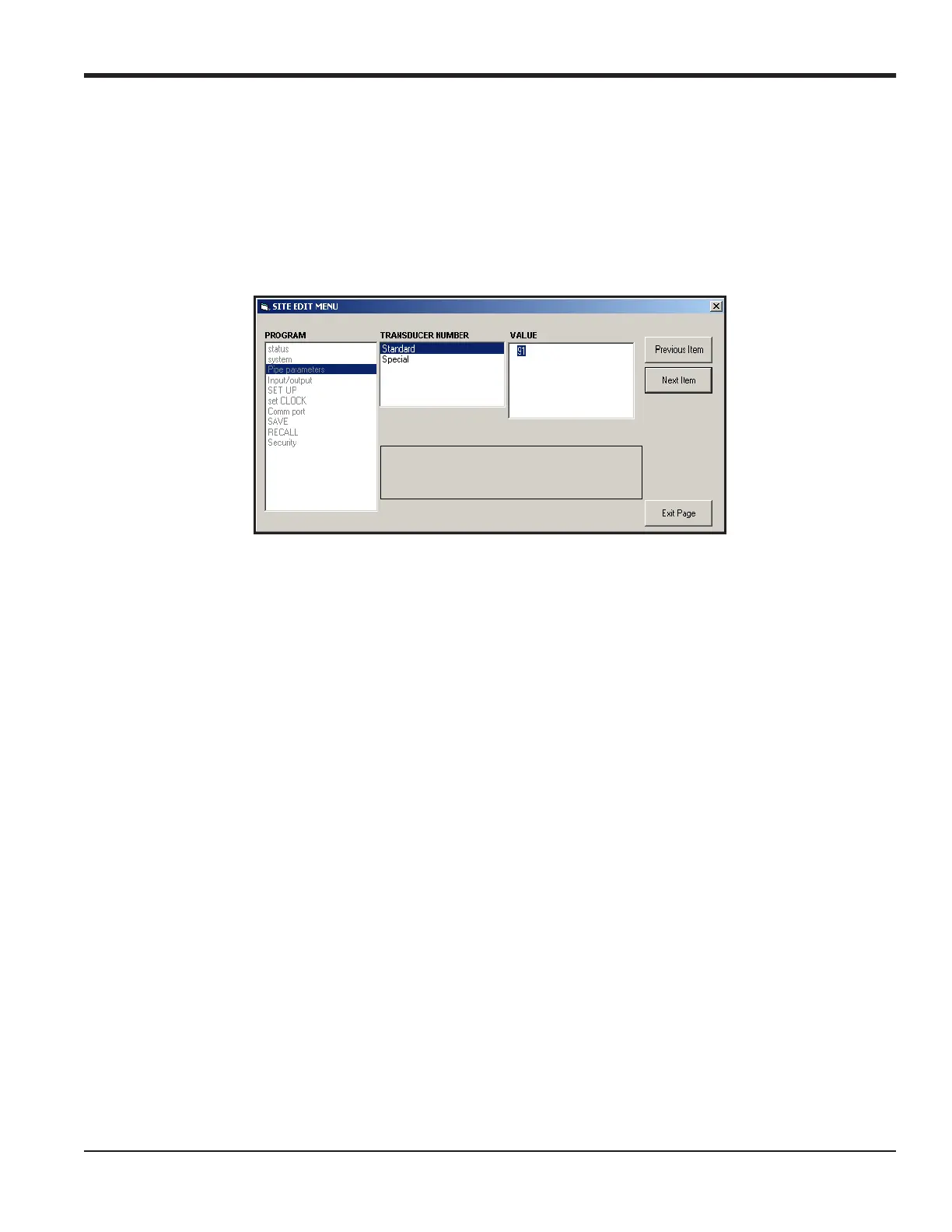

Figure 37: Pipe Parameters Option in Site Edit Menu
c. Do one of the following:
Click on
[Next Item] to proceed to the next menu item,
or
Click on
[Previous Item] to return back through the menu to a previous item.
Note: If you click on either [Next Item] or [Previous Item] without changing the settings, the current settings remain
unchanged.
As you step through the menu, the bottom panel lists the current settings you have modified or left unchanged (see
Figure 38 on page 112). If you modify or step through more than five items, a scroll bar at the right of the panel lets you
review the earlier settings.
