GE LOGIQ E9

Safety
4-38 LOGIQ E9 – User Guide
Direction 5454884-100 English
Rev. 1
Authorized European Representative
address
• Rear Panel
Use two people to transport system on
inclines. This label also indicates the
system weight.
• Rear Panel
IP Code
• IPX8
• IPX7
Indicates the degree of protection
provided by the enclosure per IEC60
529. Can be used in operating room
environment.
• Footswitch
• Probes
Type BF Applied Part (man in the box)
symbol is in accordance with IEC
60417-5333.
• Probe Connector Panel
• Probes
Type BF Applied Part (man in the box
with paddle) symbol is in accordance
with IEC 60417-5334.
• Probes
Type CF Applied Part (heart in the
box) symbol is in accordance with IEC
60878-02-03.
• CW Probe Connector
• Patient Cardiac Connectors
• Probes
Type CF Defib-Proof Applied Part
(heart in the box with paddle) symbol
is in accordance with IEC
60878-02-06.
• ECG Connector
• Probes
“ATTENTION” - Consult
accompanying documents” is intended
to alert the user to refer to the operator
manual or other instructions when
complete information cannot be
provided on the label.
• Rear Panel
• Inside of Console
• Rear of the LCD monitor
• Probes
“General Warning Sign” • Rear Panel
• Patient Cardiac and ECG
Connectors
• Peripheral/Accessory
Connector Panel
• Probe Connector Panel
• Circuit Breaker Panel
• Inside of Console
• Probes

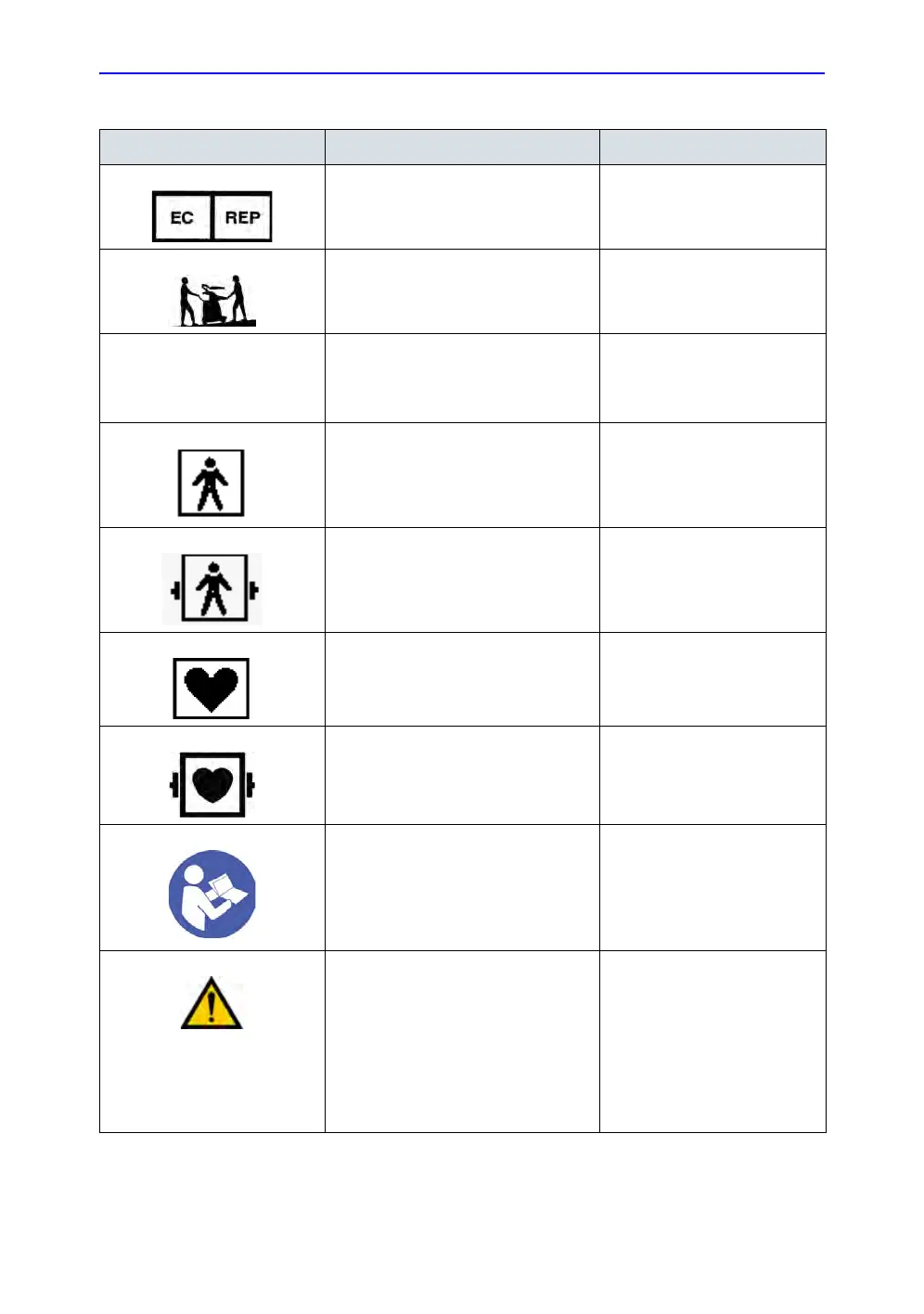

Table 4-7: Label Icons (Continued)
Label/Icon Purpose/Meaning Location
