GE LOGIQ E9

Device Labels
LOGIQ E9 – User Guide 4-39
Direction 5454884-100 English Rev. 1
“Warning” - Dangerous voltage” (the
lightning flash with arrowhead) is used
to indicate electric shock hazards.
• Rear Panel
• Inside of Console
• Circuit Breaker Panel
“Mains OFF” indicates the power off
position of the mains power breaker.
• Circuit Breaker Panel
“Mains ON” indicates the power on
position of the mains power breaker.
• Circuit Breaker Panel
“ON” indicates the power on position
of the power switch.
CAUTION: This Power Switch DOES
NOT ISOLATE Mains Supply.
• Power On/Off Switch
“Protective Earth” indicates the
protective earth (grounding) terminal.
• Inside of Console
“Equipotentiality” indicates the
terminal to be used for connecting
equipotential conductors when
interconnecting (grounding) with other
equipment.
Connection of additional protective
earth conductors or potential
equalization conductors is not
necessary in most cases and is only
recommended for situations involving
multiple equipment in a high-risk
patient environment to provide
assurance that all equipment is at the
same potential and operates within
acceptable leakage current limits. An
example of a high-risk patient would
be a special procedure where the
patient has an accessible conductive
path to the heart such as exposed
cardiac pacing leads. IEC60417-5021
• Circuit Breaker Panel
Alternating Current symbol is in
accordance with IEC 60878-01-14.
• Rear Panel
• Rating Plate

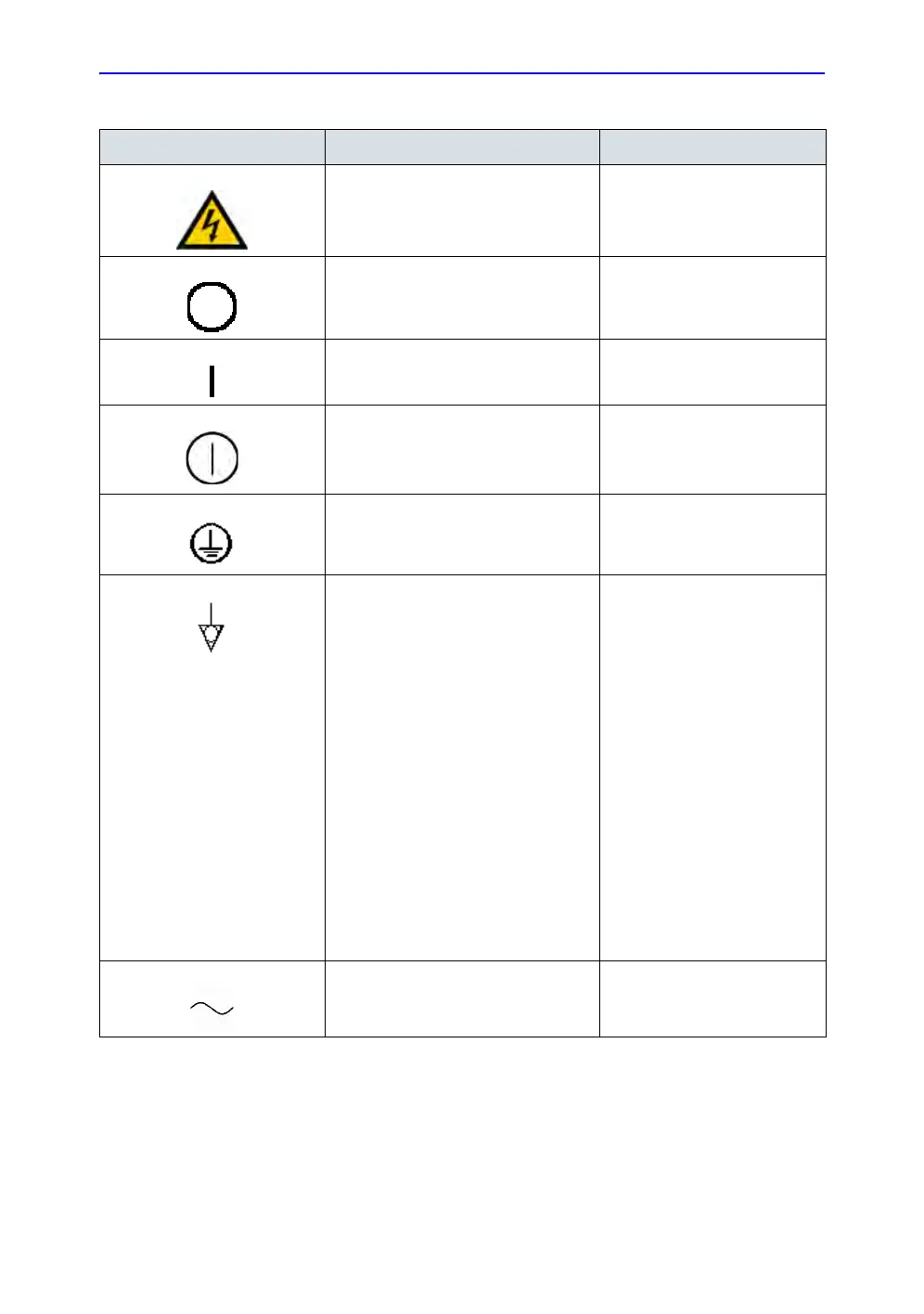

Table 4-7: Label Icons (Continued)
Label/Icon Purpose/Meaning Location
