GE LOGIQ E9 User Guide

Probes
LOGIQ E9 – User Guide 1-47
Direction 5454884-100 English Rev. 1
Fixed Needle Biopsy Guide Assembly
1. Identify the appropriate biopsy guide bracket by matching
the label on the bracket with the probe to be used.
2. Orient the bracket so that the needle clip attachment will be
on the same side as the probe orientation mark (ridge).

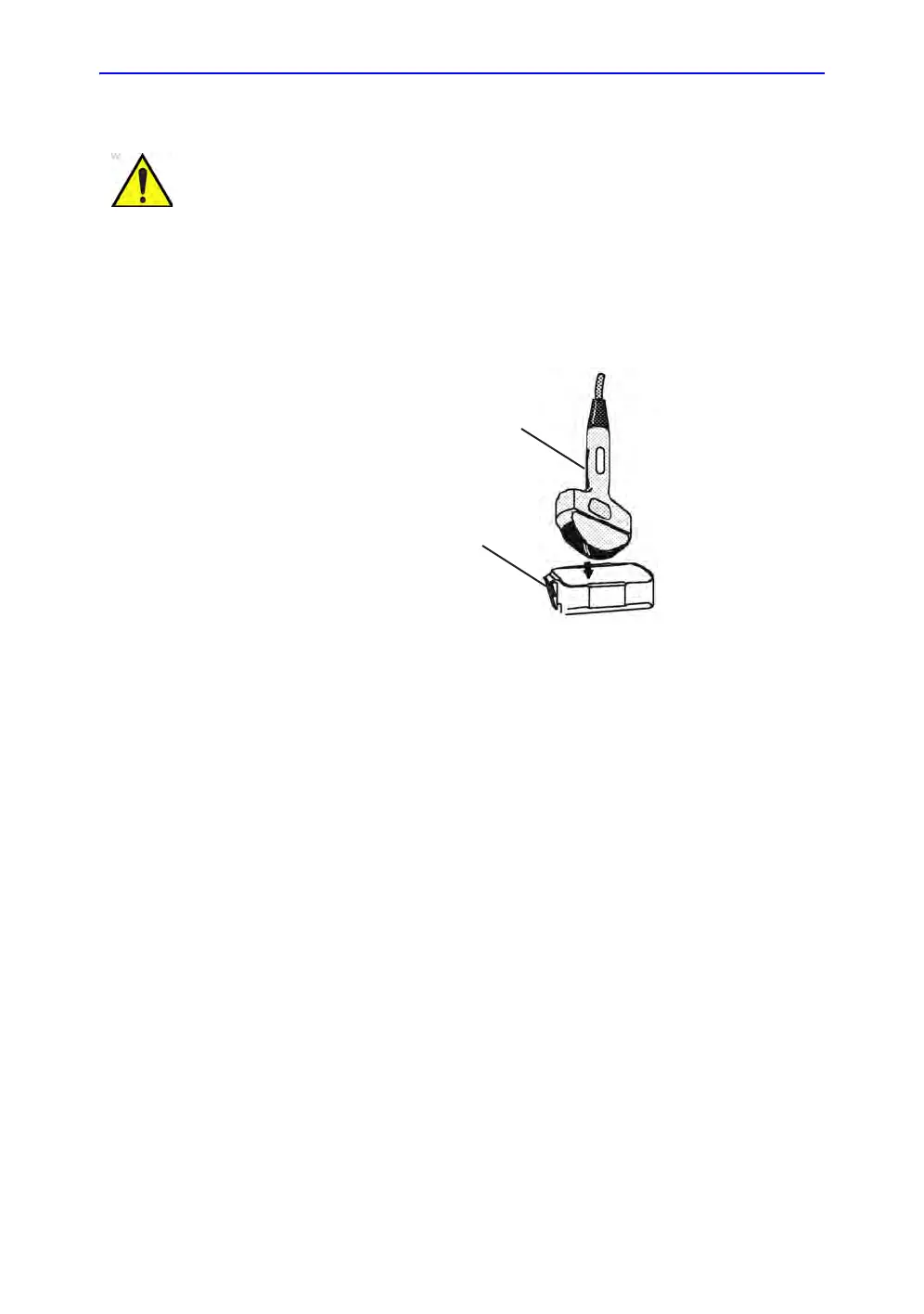

Figure 1-20. Probe/Bracket Alignment
a. Probe Orientation Mark
b. Bracket
3. Attach the biopsy bracket to the probe by sliding the bracket
over the end of the probe until it clicks or locks in place.
4. Place an adequate amount of coupling gel on the face of the
probe.
WARNING
DO NOT attempt to use the biopsy bracket and needle guide
until the manufacturer's instructions, provided with the biopsy
bracket and needle guide in the kit, have been read and
thoroughly understood.
a
b

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
