GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-56 Section 8-5 - USB Cable Set (FRU P/N: 5315039)
8-5-1 LV and Power distribution Board (Part No: 5315028) / Power distribution Board
Assembly (Part no: 5315104) - LOGIQ P3
8-5-1-1 Tools
• Common Phillips screwdrivers
8-5-1-2 Needed Manpower
• 1person, 15 minutes
8-5-1-3 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system
8-5-1-4 Removal Procedure
1) Loosen the Two screw (A) and pull out the Cables which are connected to PDB as shown in rectangle
box (B) in the Figure 8-61 on page 8-53
2) Remove LV & PDB assembly.Refer Figure 8-63 on page 8-56

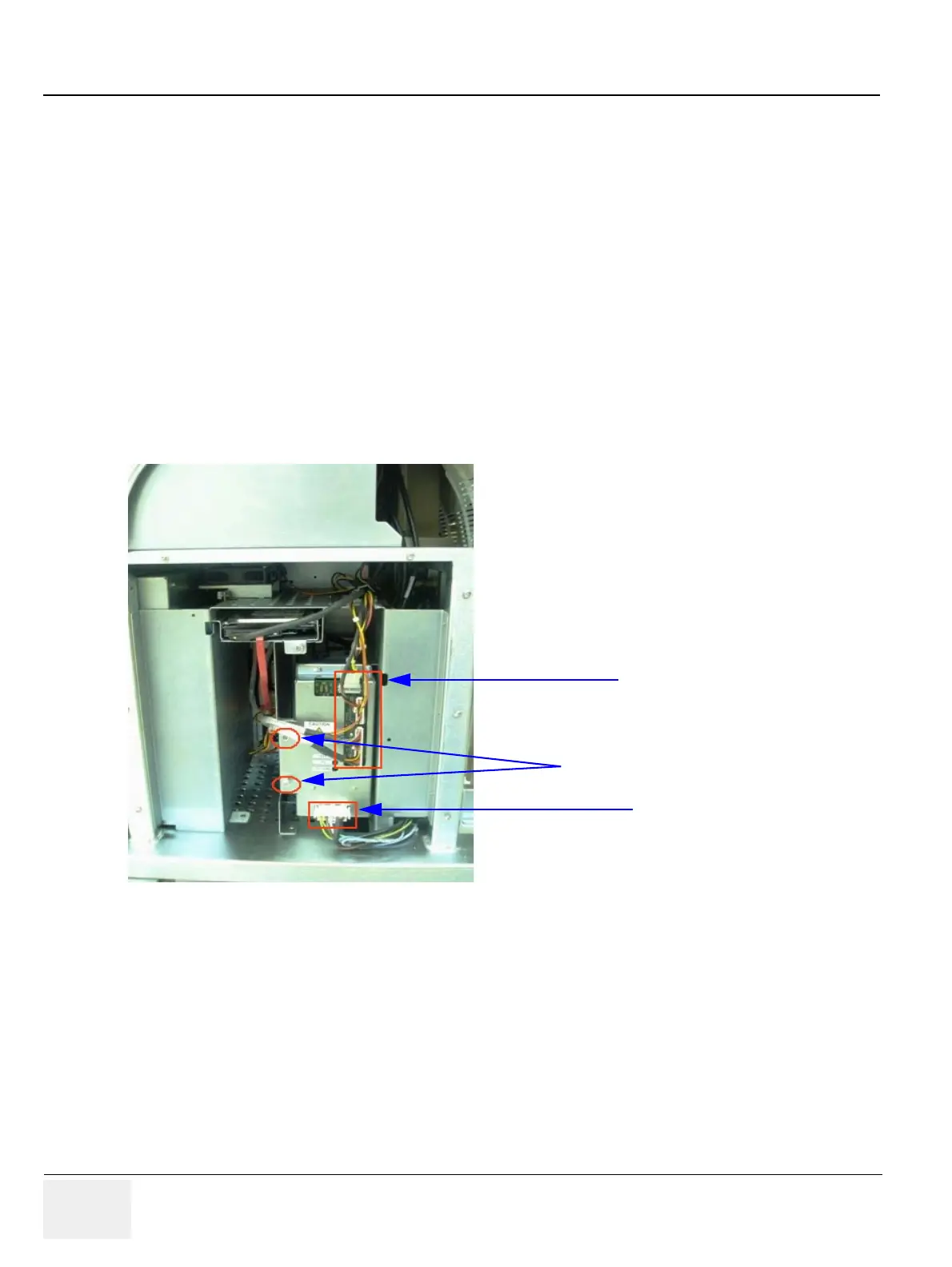

Figure 8-63 Removing Hard Disk Drive Power cable
(B) Power cables
(A) Two Screws
(B) Power cable
