GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 16 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-4-3 Removal procedure (cont’d)

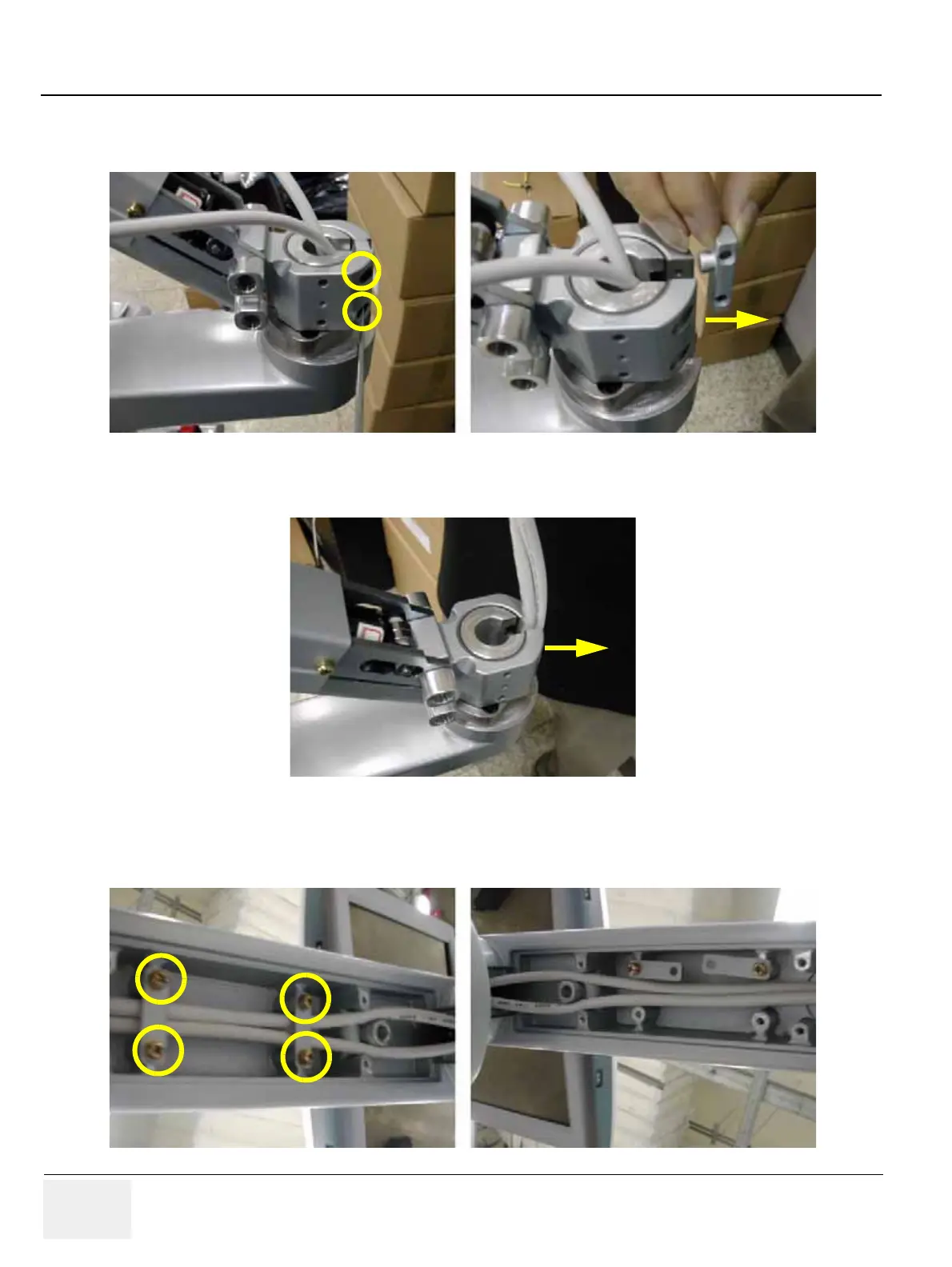

12.)Unscrew 2 screws (5257149, HSH M4X20) to remove the Arm stopper. Refer to the figure below.
13.)Pull out power cable & DVI cable. Make sure flexible arm not to rotate. Refer to the figure below.
14.)Unscrew 4 screws (2159625, PH M4x8 W/SP) to remove the Lower cable bracket and pull out
power cable & DVI cable. Refer to the figure below.
Figure 8-28 Removing the Arm stopper
Figure 8-29 Pulling out power cable & DVI cable
Figure 8-30 Unscrewing 4 screws
