GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 17
8-2-4-3 Removal procedure (cont’d)
15.)Unscrew 3 screws (2159634, BH M4x10 WHT) after removing the rubber caps to remove neck front
cover, neck rear cover. Refer to the figure below.
16.)Unscrew 3 screws(5327646, HSH M6 X 16 WHT) to separate the flexible arm neck pipe. Refer to
the figure below.

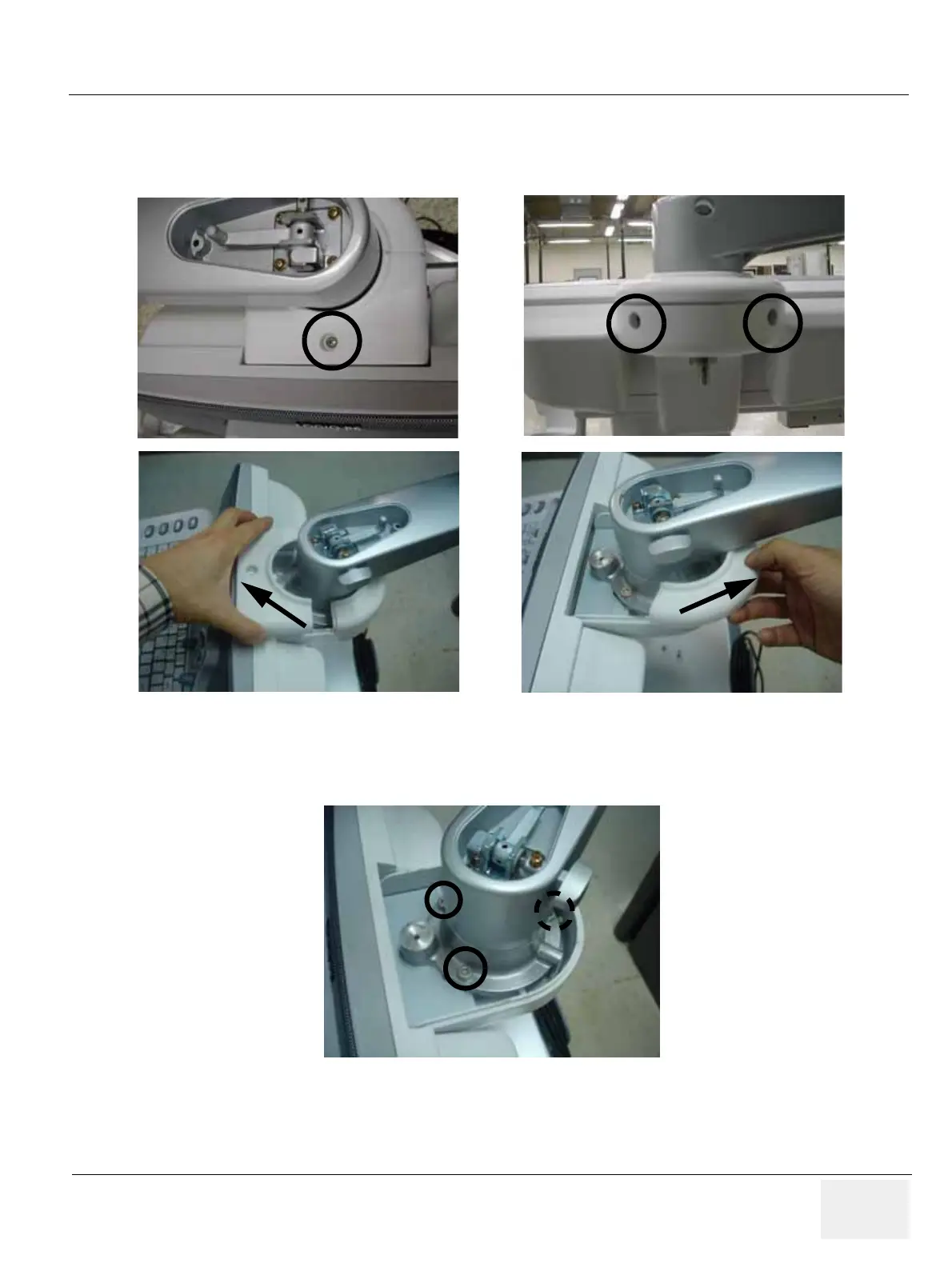

Figure 8-31 Unscrewing 3 screws and removing the neck front cover & neck rear cover
Figure 8-32 Separating the neck pipe
