GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 18 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-4-3 Removal procedure (cont’d)

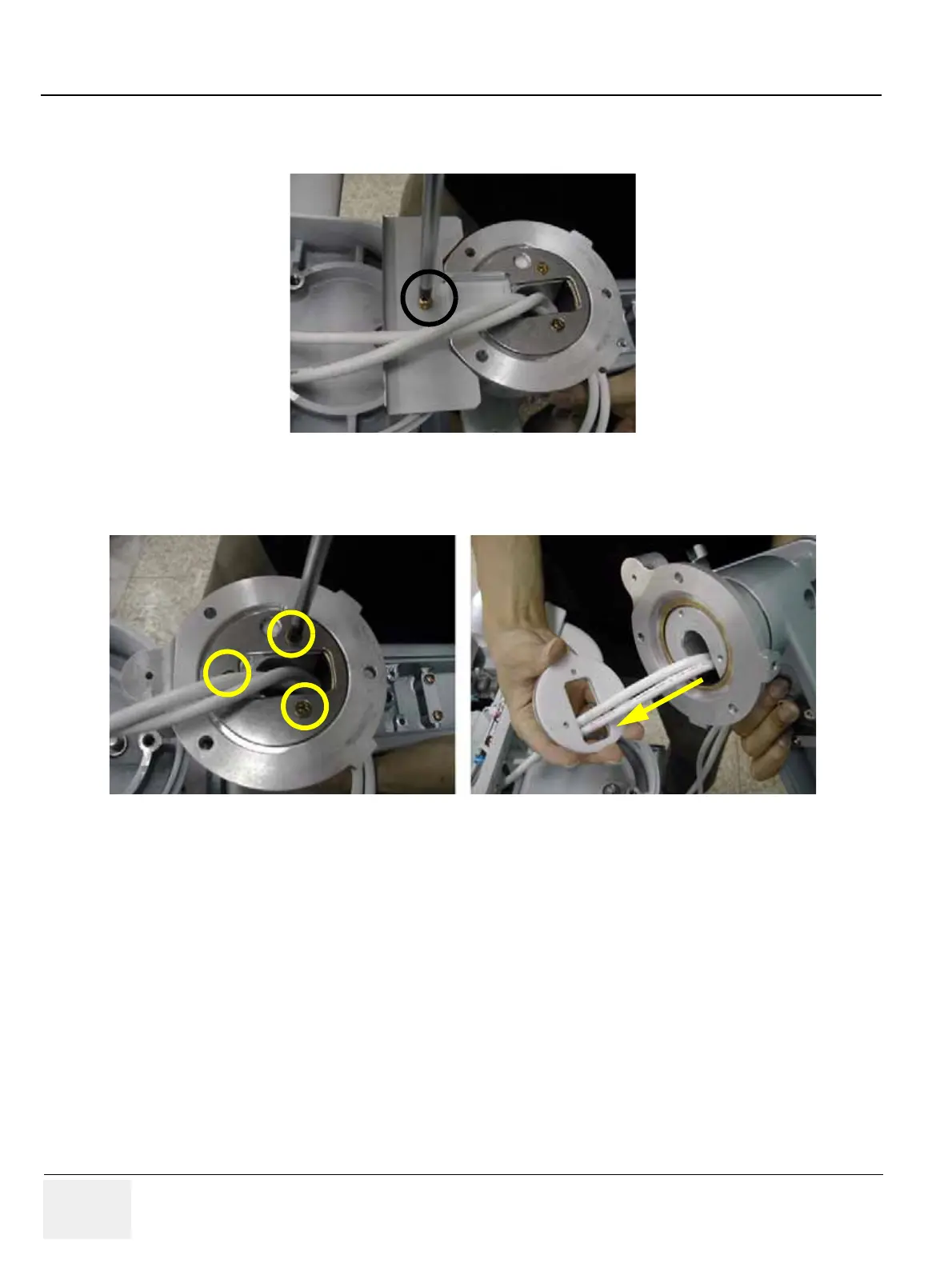

17.)Unscrew 1 screw (2159625, PH M4x8 W/SP) to remove the OP bracket. Refer to the figure below.
18.)Unscrew 3 screws (2373562, FH M4x10 YEL) to separate the Flexible arm stopper(A+B). Refer to
the figure below.
Figure 8-33 Removing OP bracket
Figure 8-34 Separating the flexible arm stopper
