DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 19
8-2-4-3 Removal procedure (cont’d)

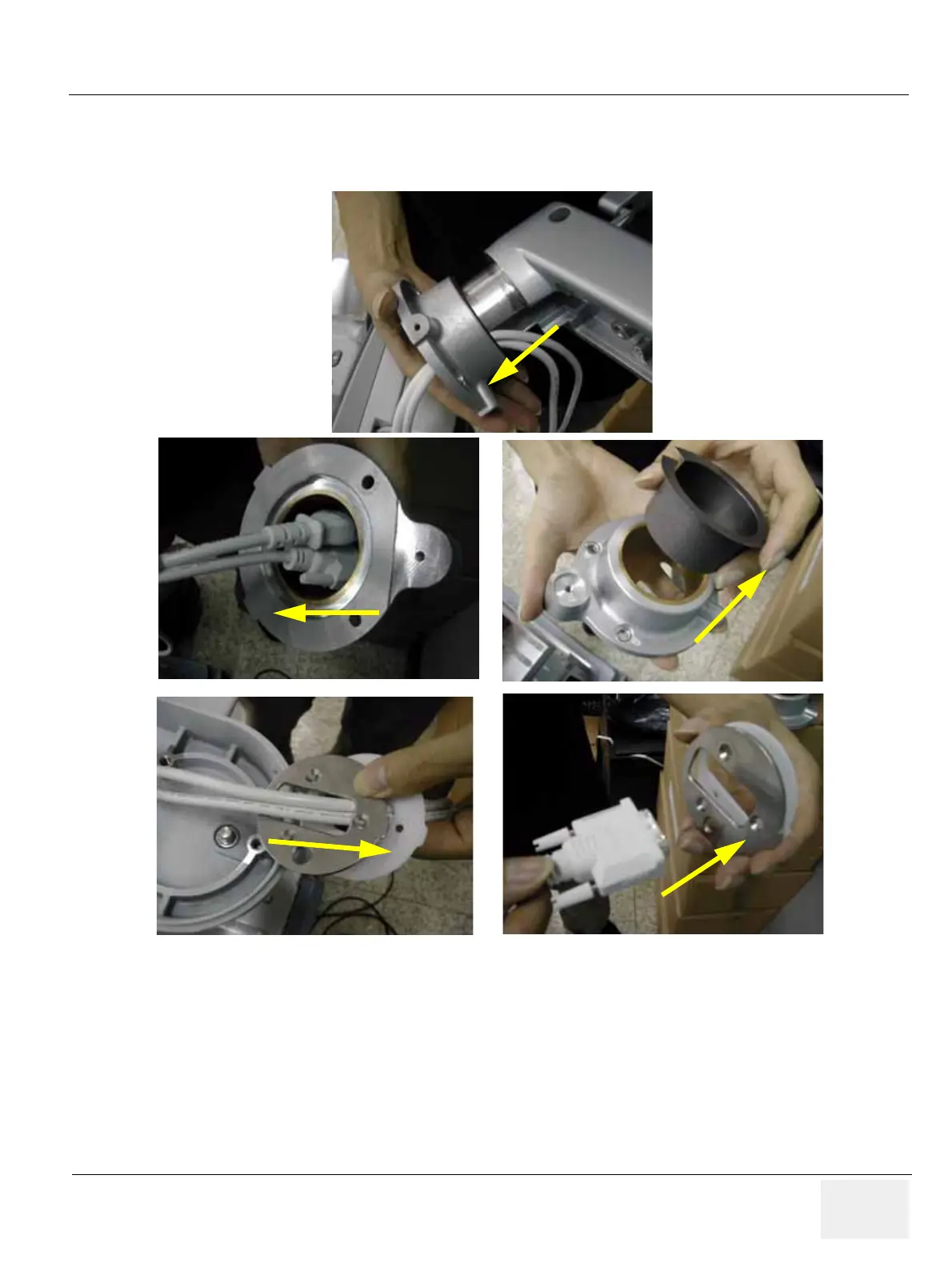

19.)Pull out power cable & DVI cable and remove the oilless bush after separating the neck pipe. Refer
to the figure below.
Figure 8-35 Pulling out power cable & DVI cable and removing the stopper

GE LOGIQ P6 Specifications

General

Type	Ultrasound System
Connectivity	DICOM, USB, Ethernet
Applications	Obstetrics, Gynecology, Vascular, Cardiology, Musculoskeletal
Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler
Portability	Mobile
Transducer Ports	3 active ports
