DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 36 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6 Main Keyboard Assy
8-2-6-1 Tools
• Common philips screwdrivers
8-2-6-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-6-3 Removal procedure
1.) Remove the 3 Probe holders & Cup holder from the keyboard. Refer to the Figure 8-70.
2.) Unscrew 4 screws from the bottom front of the keyboard. Refer to the Figure 8-71.

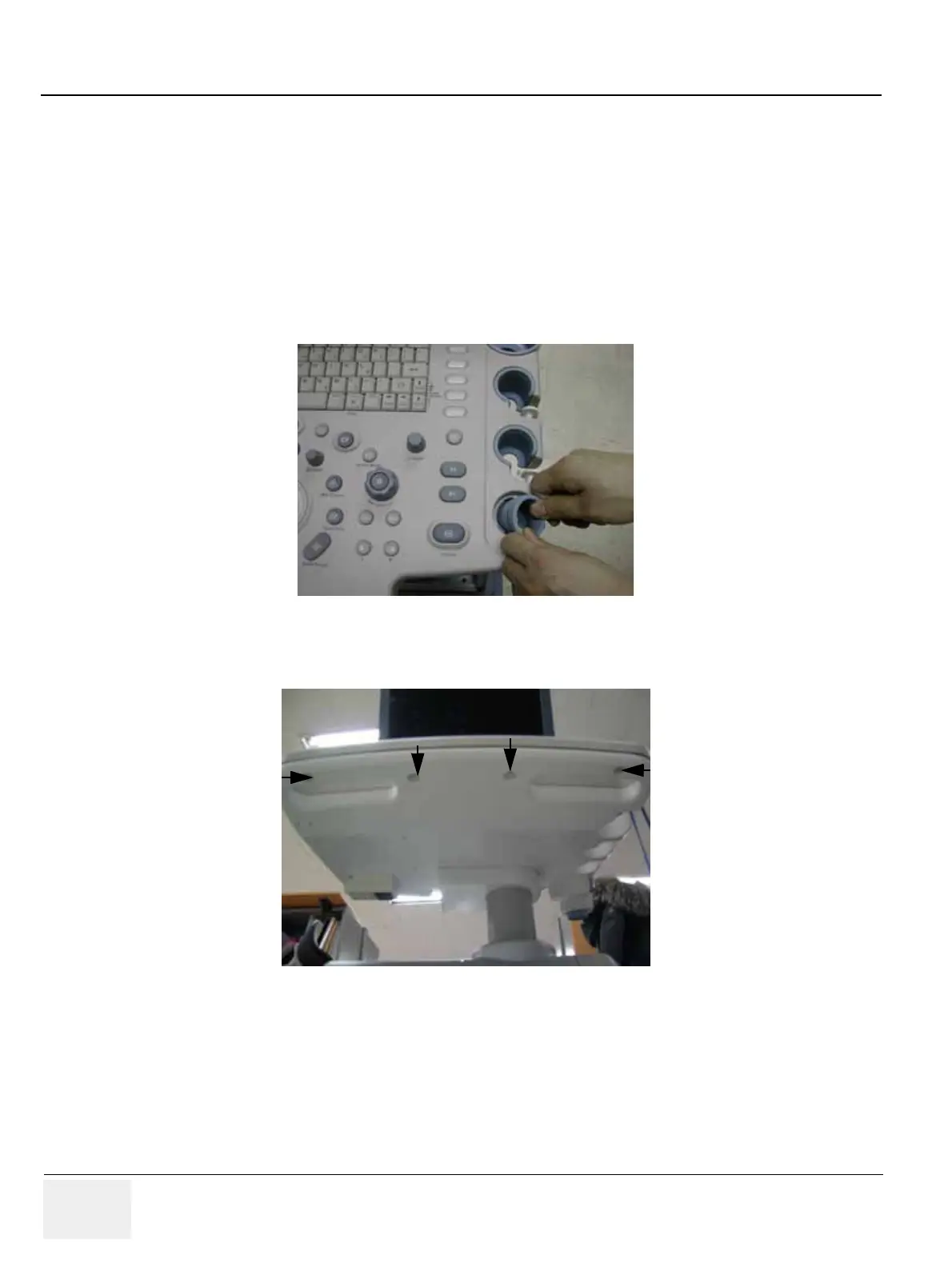

Figure 8-70 Removing holders
Figure 8-71 Unscrews 4 screws
(1) (4)
(2)
(3)
