DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 73
8-2-30-3 Removal procedure (cont’d)
6.) Mount ASIR ROM to new SYSCONML Assy. Refer to the Figure 8-115.
7.) Confirm mounting direction and pin number.
NOTE: It is important to swap ASIR ROM(U23). Because it contains the serial Number and option the
system.

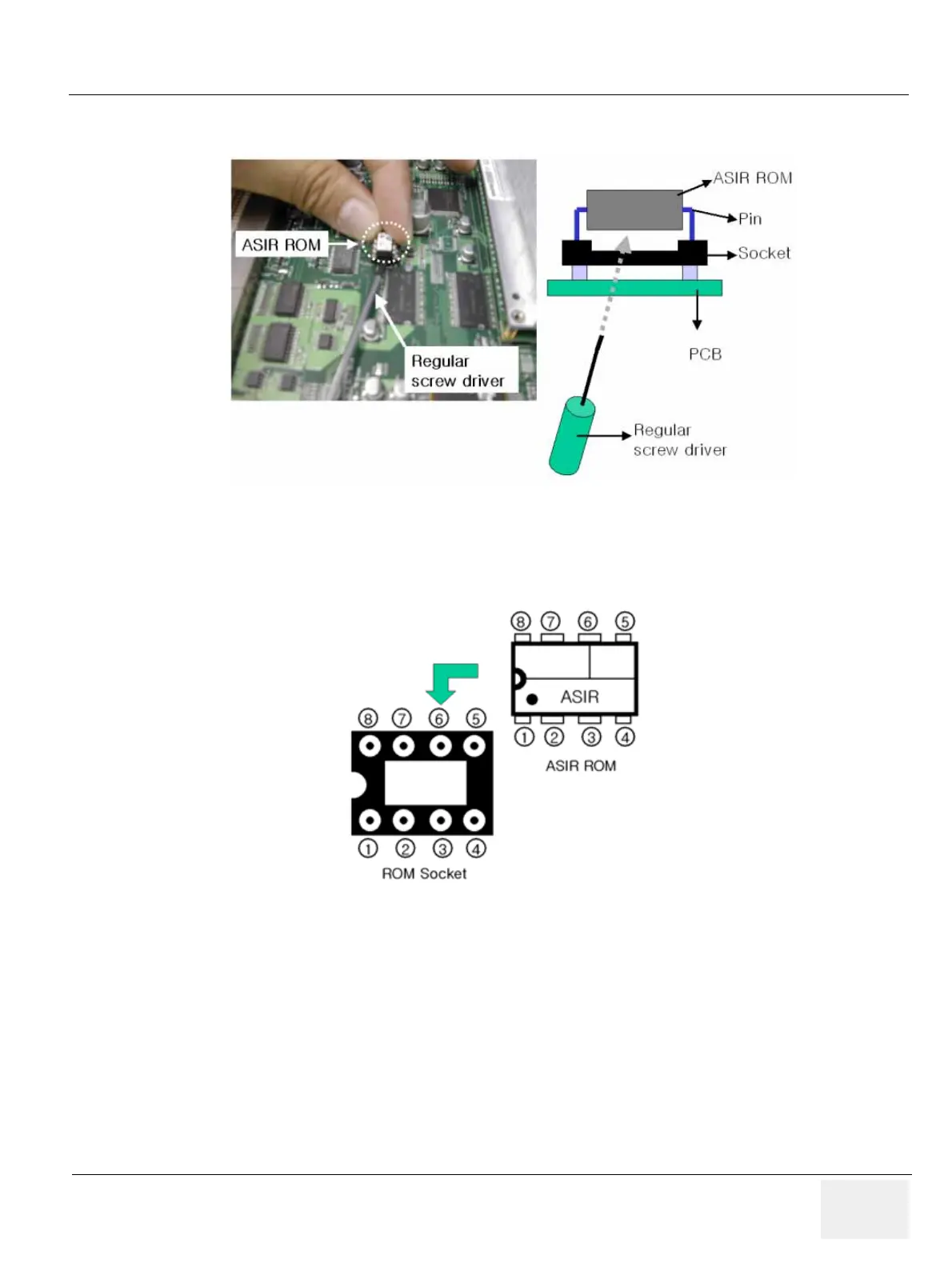

Figure 8-114 Seperation of ASIR ROM
Figure 8-115 ASIR ROM mounting direction
