GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 72 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-30 SYSCONML Assy
8-2-30-1 Tools
• Common philips screwdrivers
8-2-30-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-30-3 Removal procedure
1.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47.
2.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-62.
3.) Disconnect the AEXP cable. Refer to the Figure 8-112.
4.) Remove the SYSCONML Assy in slot #4 in the nest box.
5.) Eject ane ASIR ROM from old SYSCONML with regular screw driver. Refer to the Figure 8-113.
Seperate ASIR ROM form new SYSCONML as same procedure.

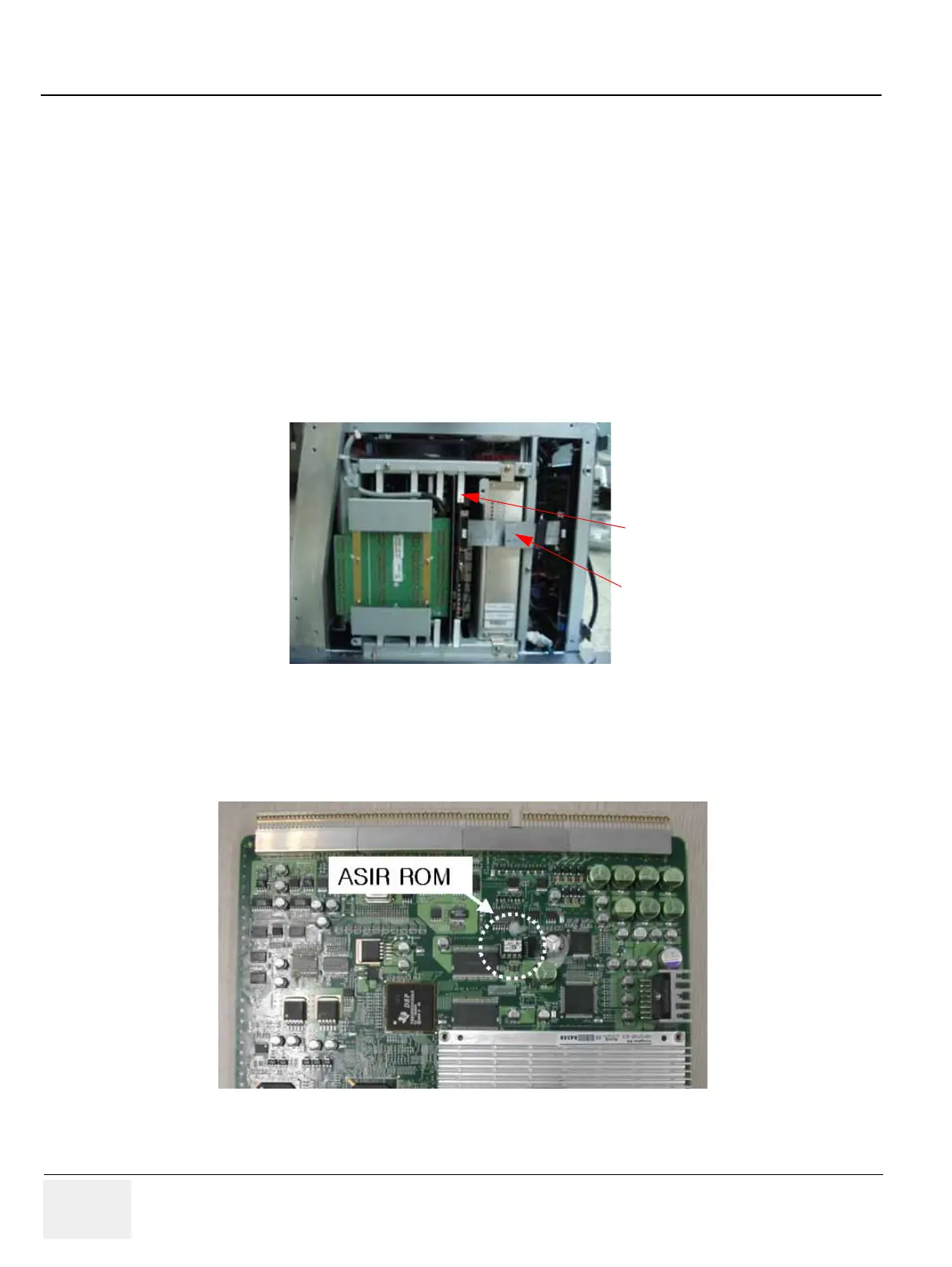

Figure 8-112 SYSCONML Assy
Figure 8-113 ASIR location
SYSCONML Assy
AEXP cable

GE LOGIQ P6 Specifications

General

Type	Ultrasound System
Connectivity	DICOM, USB, Ethernet
Applications	Obstetrics, Gynecology, Vascular, Cardiology, Musculoskeletal
Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler
Portability	Mobile
Transducer Ports	3 active ports
