8 - 62 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-24 EMI Cover L and R
8-2-24-1 Tools
• Common philips screwdrivers
8-2-24-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-24-3 Removal procedure
1.) Remove the Side Left Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47
2.) Unscrew the 6 screws on left EML cover and 9 screws on thr right EMI cover. Refer to the Figure
8-102.
3.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-24-4 Mounting Procedure
Install the new parts in the reverse order of removal.

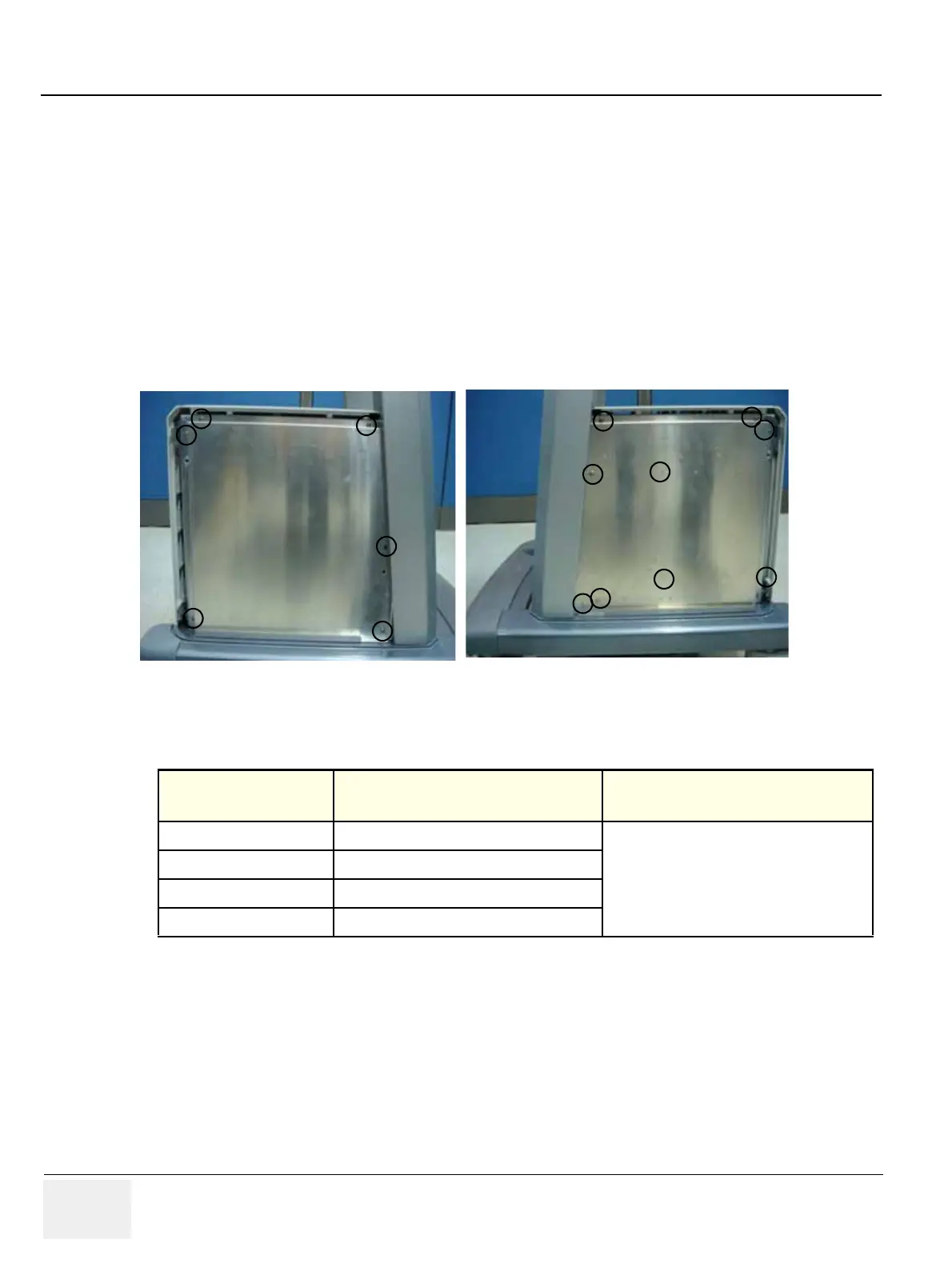

Figure 8-102 EMI Cover Land R
Table 8-25 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-24. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
To Next Page
