GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 63
8-2-25 APS II Assy
NOTE: APS Power Supply can not be adjusted.
8-2-25-1 Tools
• Common philips screwdrivers
• Nipper
8-2-25-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-25-3 Removal procedure
1.) Remove the Side Left Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47.
2.) Remove the EMI Cover L. Refer to the 8-2-24 "EMI Cover L and R" on page 8-62.
3.) Remove HDD power cable.
4.) Extract 3 power connector from back plane.
5.) Disconnect the AC input connector.
6.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47.
7.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-62.

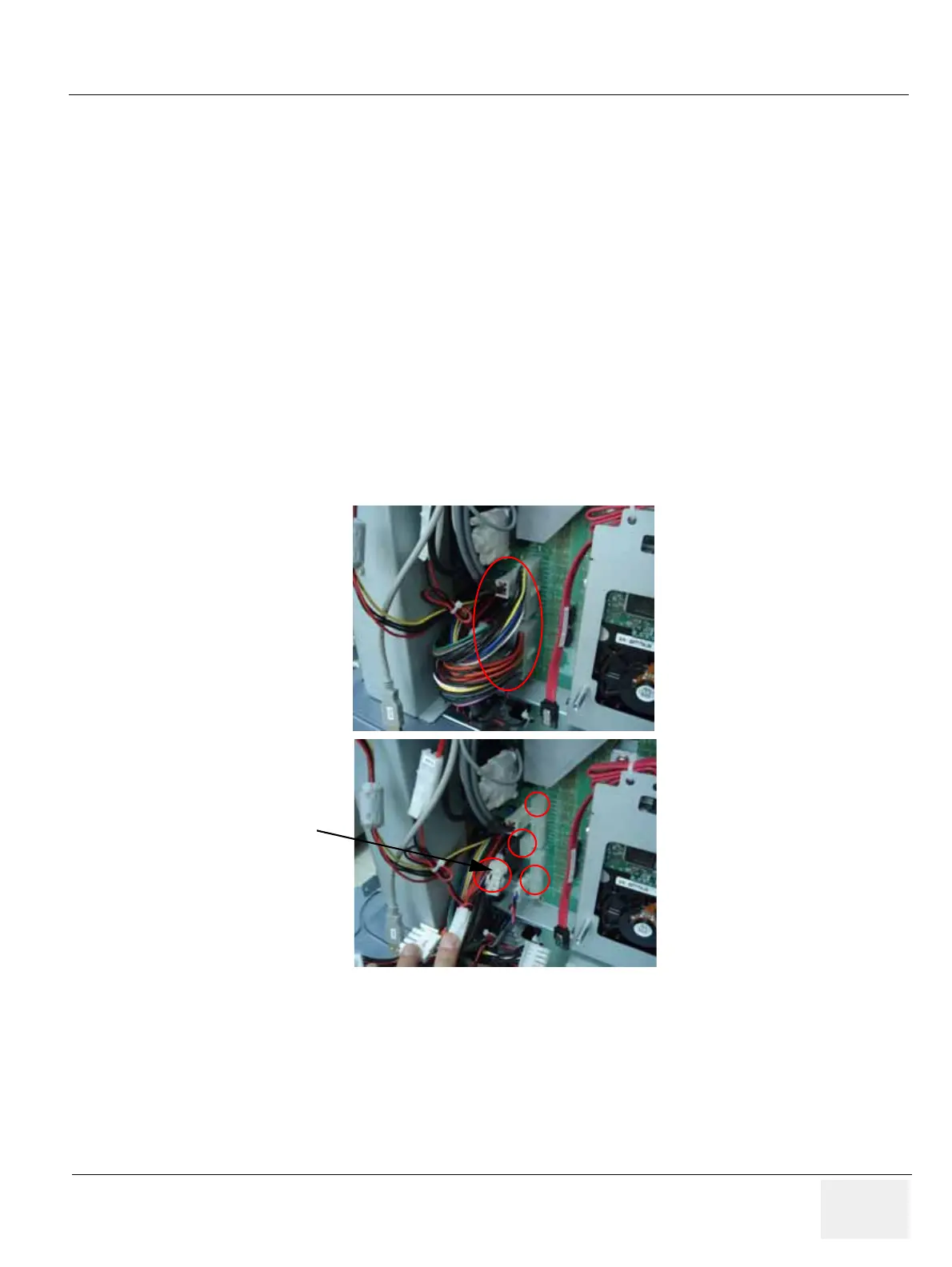

Figure 8-103 APS IIConnectors of backplane
AC Input Connector
To Next Page
