DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 161
8-7-1-3 Removal procedure (cont’d)

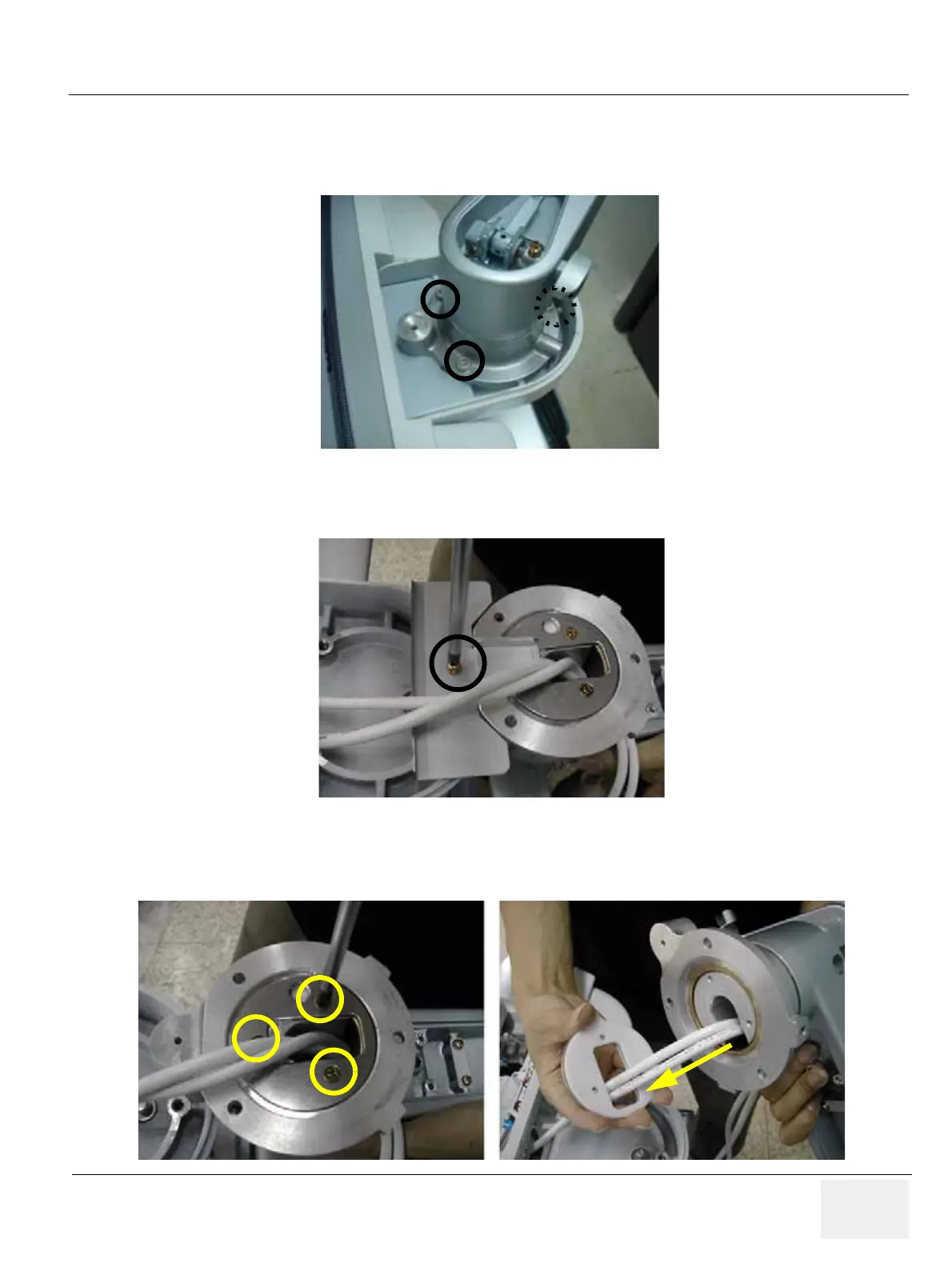

16.) Unscrew 3 screws(5327646, HSH M6 X 16 WHT) to separate the flexible arm neck pipe. Refer to
the figure below.
17.) Unscrew 1 screw (2159625, PH M4x8 W/SP) to remove the OP bracket. Refer to the figure below.
18.) Unscrew 3 screws (2373562, FH M4x10 YEL) to separate the Flexible arm stopper(A+B). Refer to
the figure below.
Figure 8-246 Separating the neck pipe
Figure 8-247 Removing OP bracket
Figure 8-248 Separating the flexible arm stopper
