8 - 160 Section 8-7 - Mechanical Option Installation instruction
8-7-1-3 Removal procedure (cont’d)

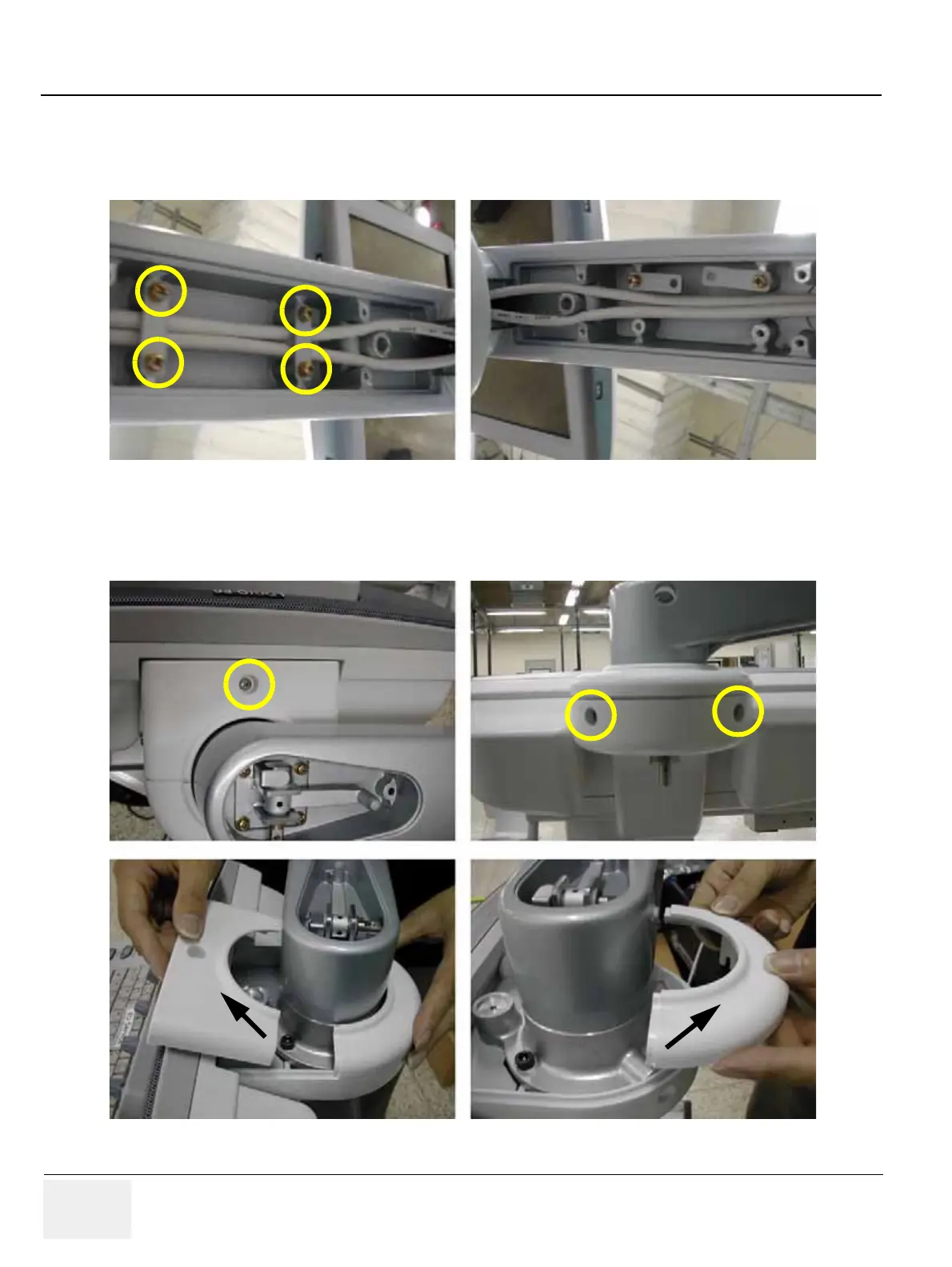

14.) Unscrew 4 screws (2159625, PH M4x8 W/SP) to remove the Lower arm Cable bracket and pull out
power cable & DVI cable. Refer to the figure below.
15.) Unscrew 3 screws (2159634, BH M4x10 WHT) after removing the rubber caps to remove neck front
cover, neck rear cover. Refer to the figure below.
Figure 8-244 Unscrewing 4 screws
Figure 8-245 Unscrewing 3 screws and removing the neck front cover & neck rear cover
To Next Page
