GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 165
8-7-1-4 Assembly procedure (cont’d)

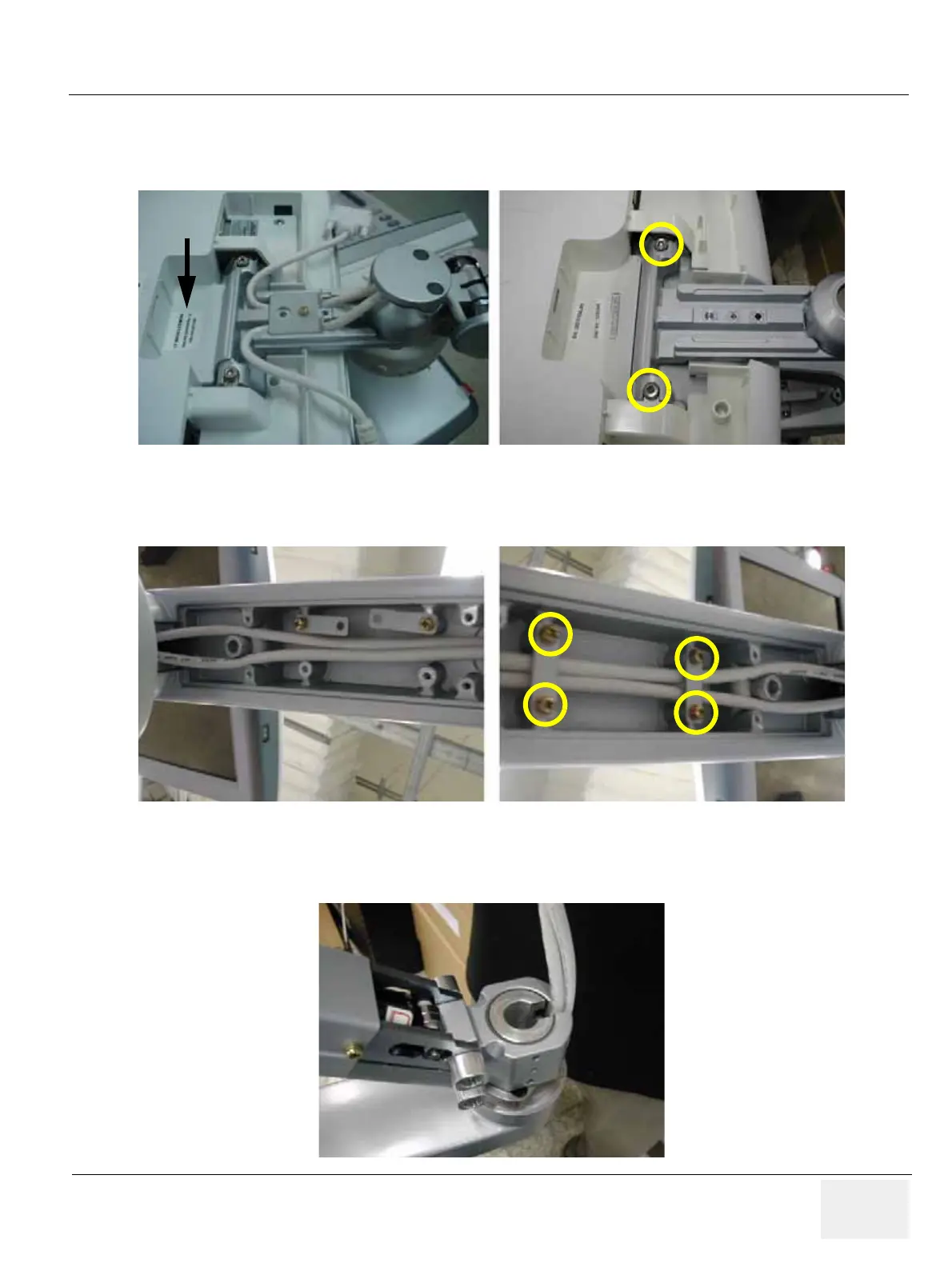

7.) Screw 2 screws (5177684, HSH M5X20 WHT) to assemble the LCD monitor with flexible arm Top
part. Refer to the figure below.
8.) Insert the two cables inside the Flexible arm and Screw 4 screws (2159625, PH M4X8 W/SP) to
assemble the Lower arm cable bracket
9.) Put in the two cables. Refer to the figure below. Make sure place DVI cable be on the right side,
power cable on the left side.
Figure 8-256 Screwing 2 screws
Figure 8-257 Screwing 4 screws
Figure 8-258 Putting in the cables
To Next Page
