GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 172 Section 8-7 - Mechanical Option Installation instruction
8-7-1-4 Assembly procedure (cont’d)
23.) Screw 1 screw (2329677, TAP M4X16) to assemble the Fold Cover. Refer to the figure below.
24.) Screw 2 screws (2337572, FH M3X6 WHT) to assemble the Arm cover L & R. Refer to the figure
below.

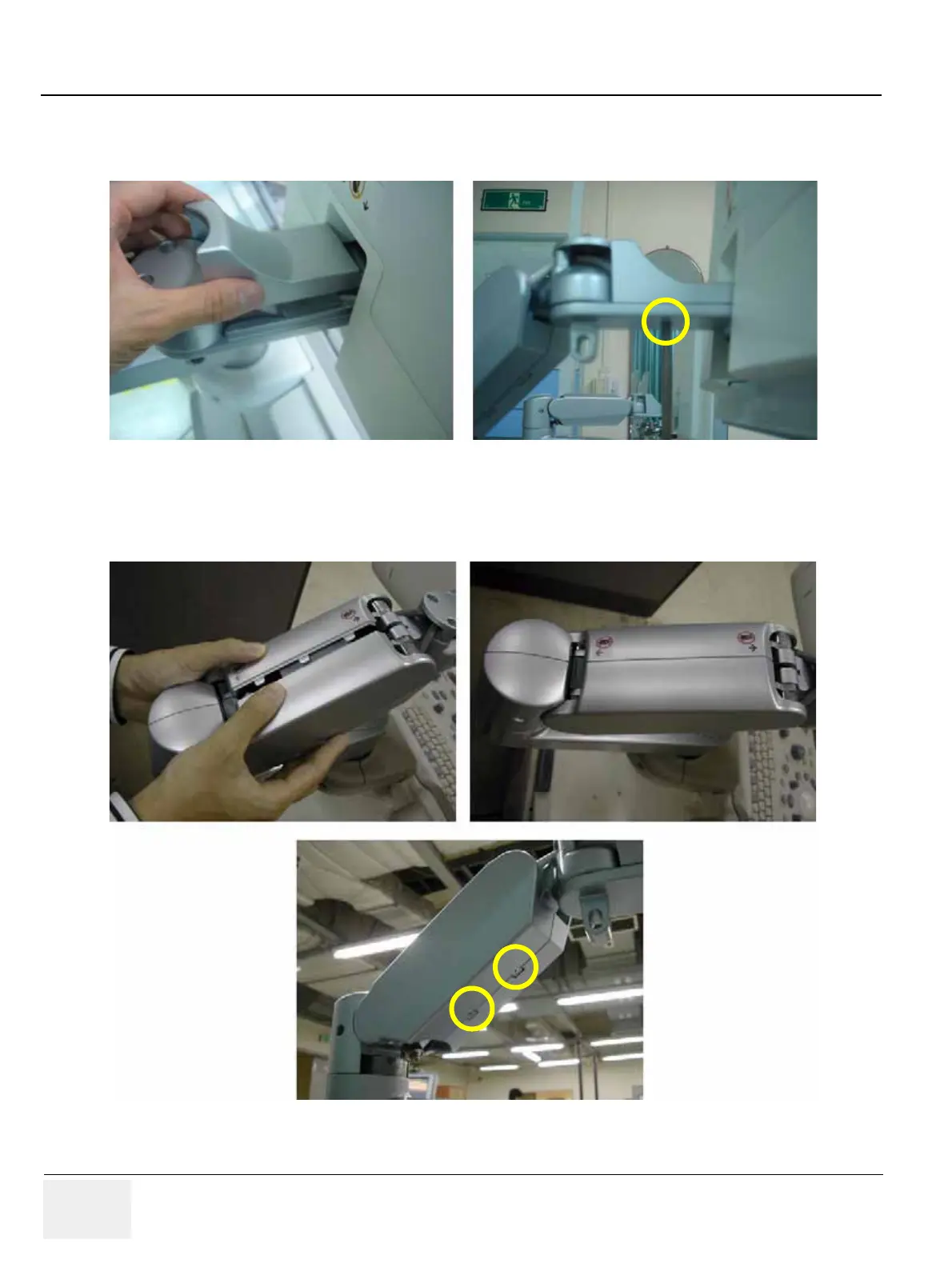

Figure 8-272 Assembling the Fold Cover
Figure 8-273 Assembling the Arm Cover L & R
