8-7-1-4 Assembly procedure (cont’d)
25.) Screw 4 screws (2159634, BH M4X10 WHT) to assemble the Arm bottom Cover. Refer to the figure
below.
26.) Completed picture of the Flexible Arm.

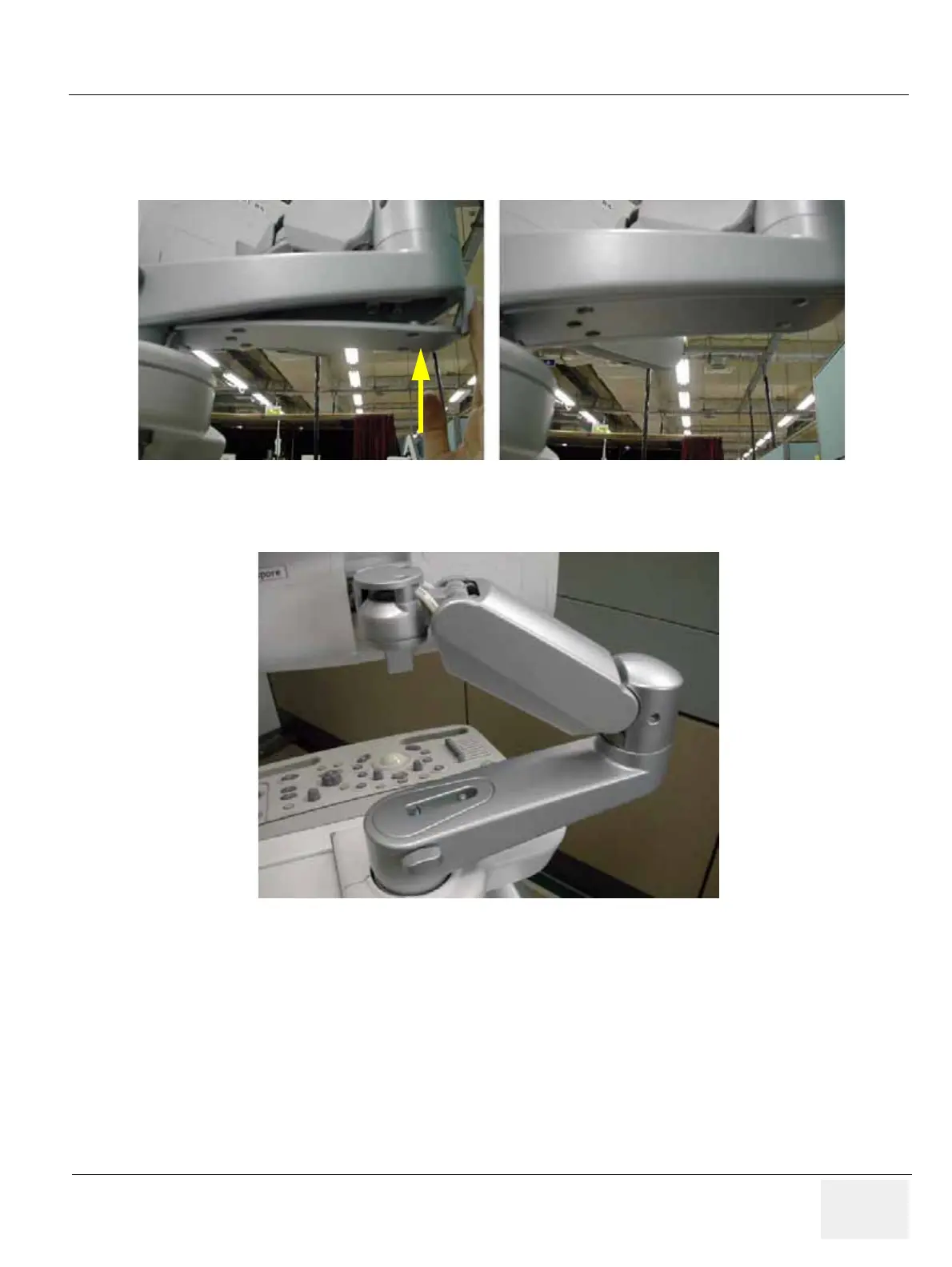

Figure 8-274 Assembling the Arm bottom cover
Figure 8-275 Flexible Arm
