DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 174 Section 8-7 - Mechanical Option Installation instruction
8-7-2 Endo Probe Holder Installation
1.) This section describes the installation procedure of EndoProbe Holder.
2.) Install Cable Arm Hook. Refer to the Figure 8-276.
3.) Check out the 2 screw holes to be used to install Endo Probe Holder. Refer to the Figure 8-276.
4.) Install Endo Probe holder on the bottom side of the the Cable Arm Hook by screwing 2 screws (1-
2). Refer to the Figure 8-277.

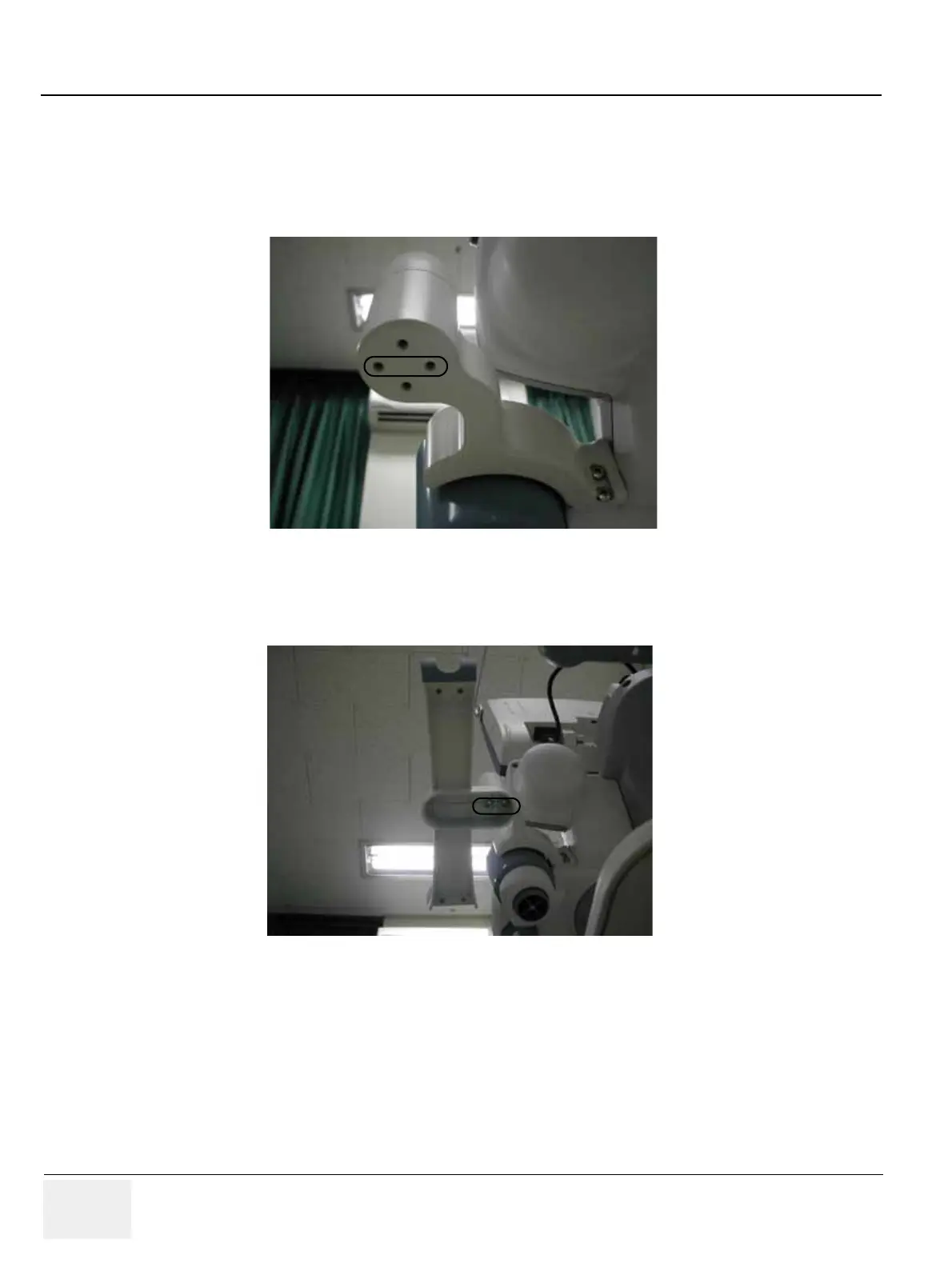

Figure 8-276 Endo Probe Holder Installation
Figure 8-277 Endo Probe Holder
