Section 8-7 - Mechanical Option Installation instruction 8 - 175
8-7-3 Microphone Option fixture Installation
1.) This section describes the installation procedure of the microphone option fixture.
2.) Use 2 holes at the bottom of the keyboard. Refer to the Figure 8-278.
3.) Screw 2 screws to fix the Microphone fixture. Refer to the Figure 8-279.

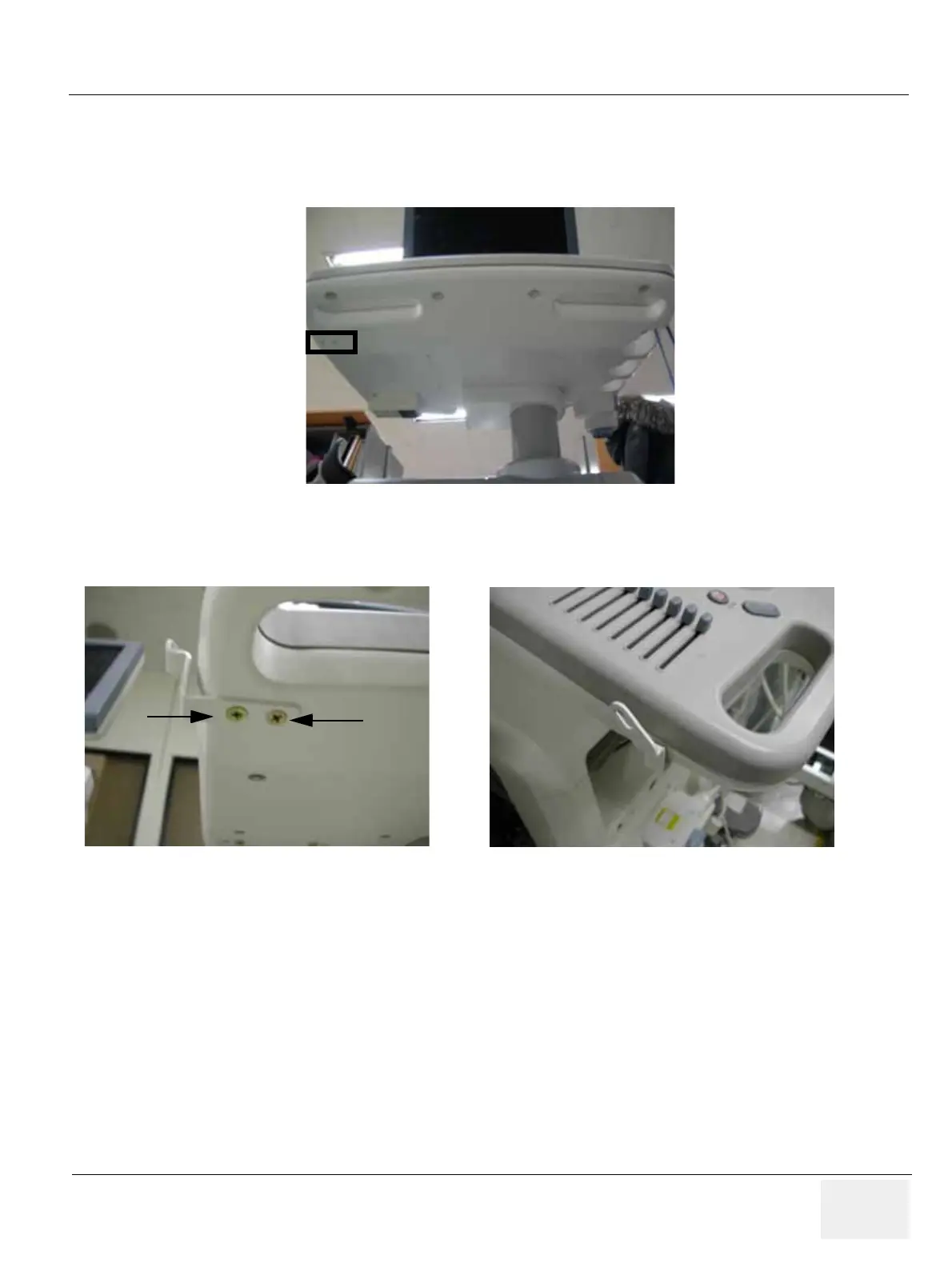

Figure 8-278 Microphone option holes
Figure 8-279 installation of Microphone
