GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 176 Section 8-7 - Mechanical Option Installation instruction
8-7-4 Drawer Option installation
1.) This section describes the installation procedure of the drawer option.
2.) Push the drawer from the front to the rear direction. Refer to the Figure 8-280
3.) Unscrew 2 existing screws from the middle cover.
4.) Using the bracket, fix the drawer by screwing 3 screws each of left and right side of the drawer.
Refer to the Figure 8-281.

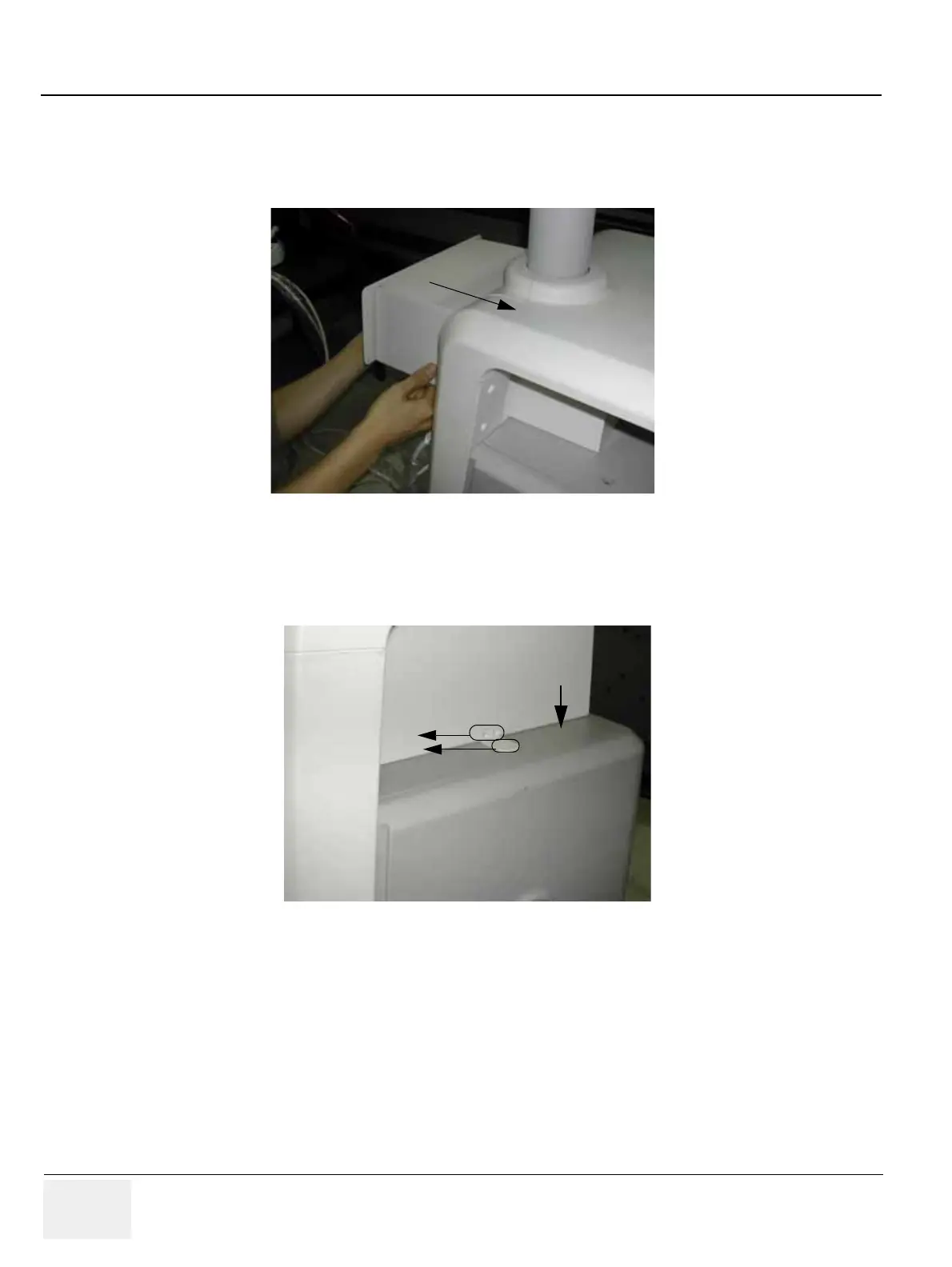

Figure 8-280 Drawer Option Installation
Figure 8-281 Installation of Drawer Option
Middle Cover
2337572
(Screw, FH M3x6 WHT)
5176744
(Screw, BH M4x20 WHT)

GE LOGIQ P6 Specifications

General

Type	Ultrasound System
Connectivity	DICOM, USB, Ethernet
Applications	Obstetrics, Gynecology, Vascular, Cardiology, Musculoskeletal
Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler
Portability	Mobile
Transducer Ports	3 active ports
