8 - 182 Section 8-7 - Mechanical Option Installation instruction

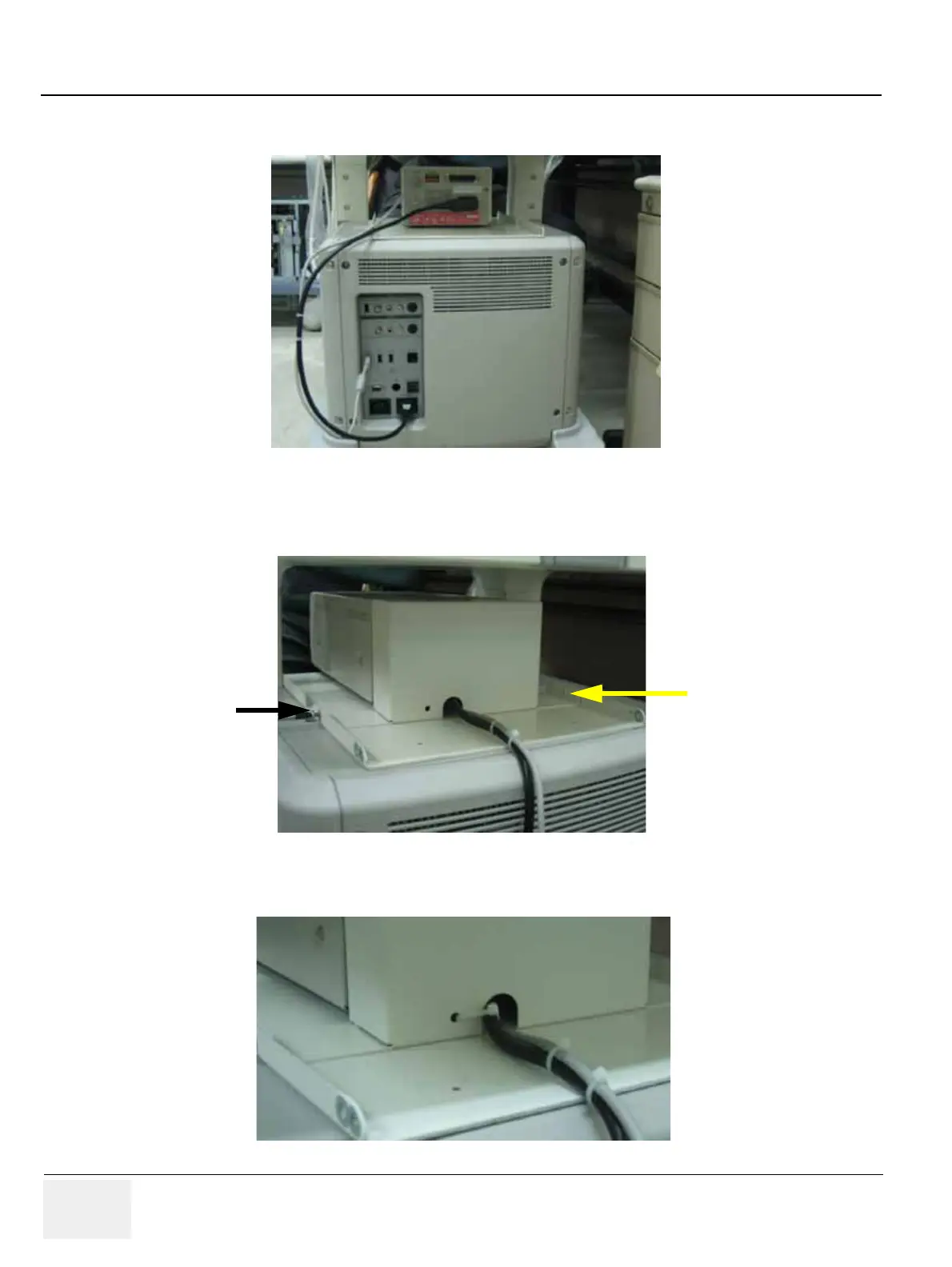

5.) Connect the USB cable and power cable from the printer to the system. Refer to the Figure 8-292.
6.) Install BW hide bracket to the rear side of the BW printer and screw 2 screws to fix it. Refer to the
Figure 8-293.
7.) Tie the cables using the tie wrap as illustrated in Figure 8-294.
Figure 8-292 BW Printer Fixture Middle installation
Figure 8-293 BW Printer Fixture Middle installation
Figure 8-294 BW Printer Fixture Middle installation
