GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 183
8-7-8 Color Printer Fixture Middle installation - UP23MD Printer
1.) This section describes the installation procedure of color printer fixture in the middle poisition.
2.) Install color printer on the top of the base bracket by screw 4 screws. Refer to the Figure 8-295.
3.) Unscrew 2 existing screws from the middle cover.
4.) Screw 2 screws on each side of the system to fix the Color printer with base bracket to the system.
Figure 8-296.

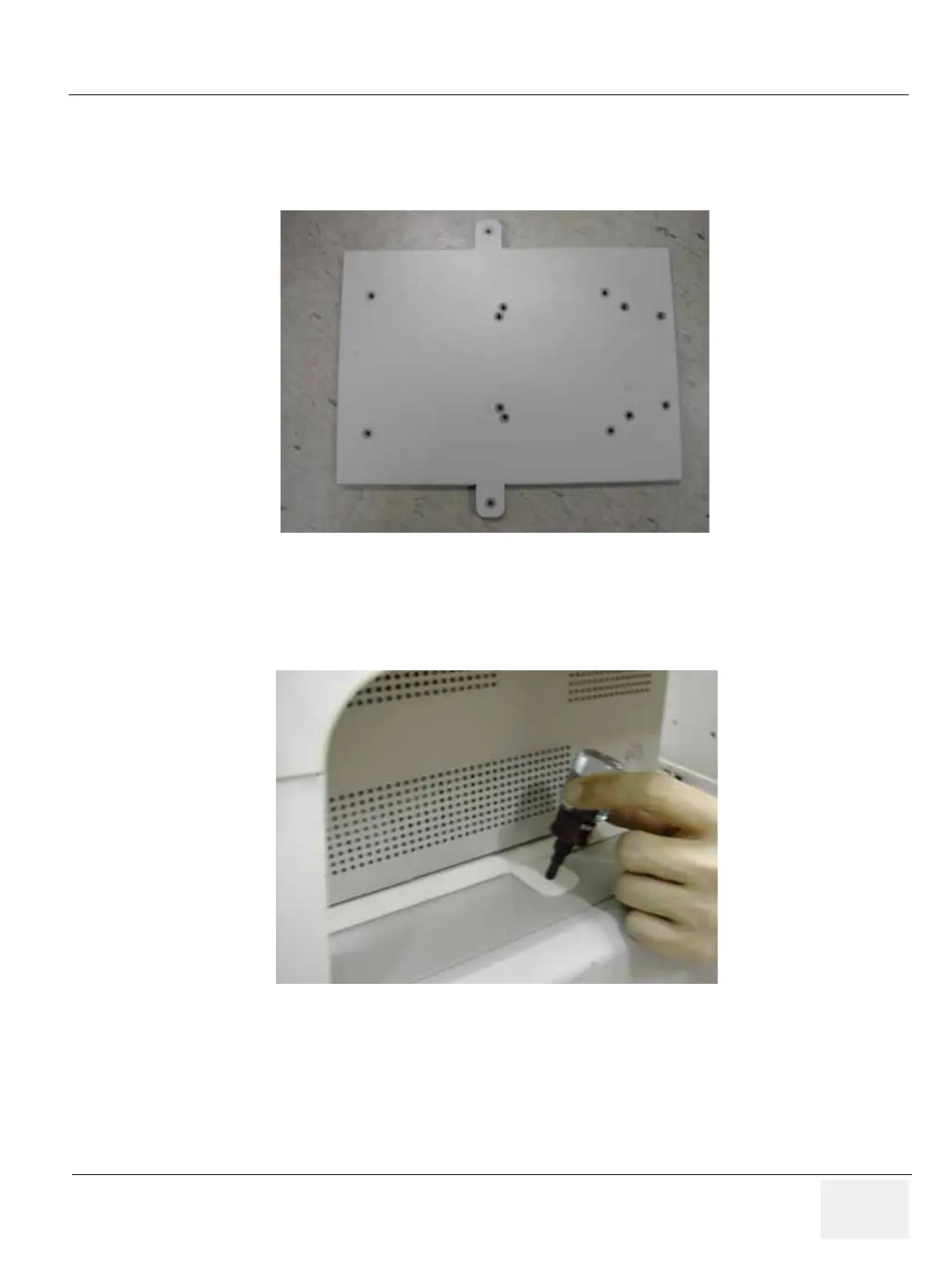

Figure 8-295 Printer VCR DVD Fixture installation top
Figure 8-296 Printer VCR DVD Fixture installation top
Base Bracket
