GE H
EALTHCARE
D
IRECTION
5245279, R
EVISION
3
LOGIQ™ P6/P6 P
RO
S
ERVICE
M
ANUAL
8 - 184
Section 8-7 - Me
chanical Op
tion Insta
llation in
struction
5.)
Connect the USB cable
and Power cable from the color
printer to the system as shown
in Figure 8-
297.
6.)
Install Color printe
r hide bracket and screw 4
screws to fix it. Refer to the
Figure 8-298.

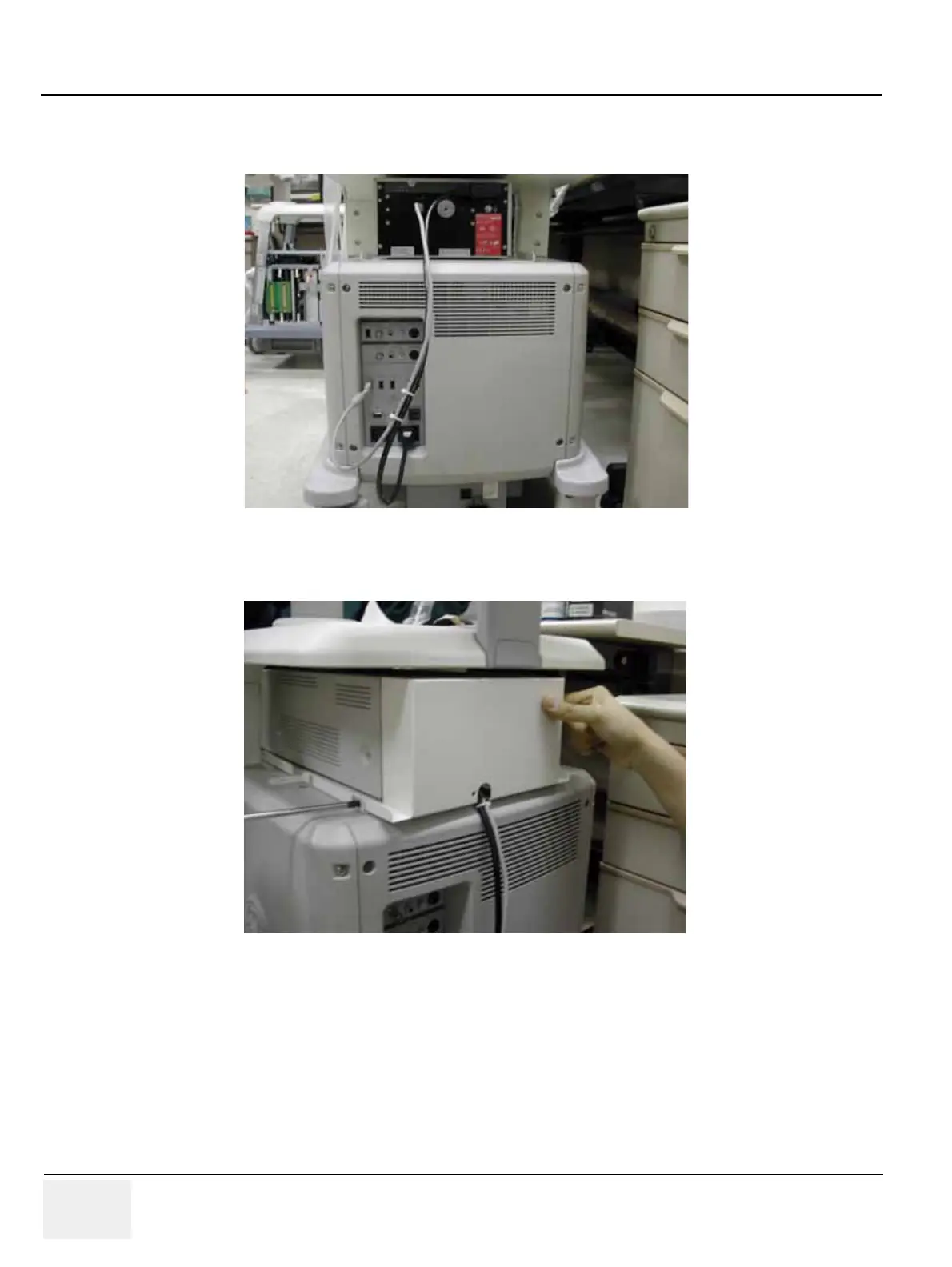

Figure 8-297 Pr
inter VCR DVD Fixture inst
allation top
Figure 8-298 Pr
inter VCR DVD Fixture inst
allation top
