DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 199
8-7-13 Rear Handle installation
1.) This desribes installation procedure of Rear Handle.
2.) Unscrew 2 screws (1-2) and remove Rear hook. Refer to the Figure 8-327.
3.) Unscrew 2 screws (1-2) and remove the rear handle bracket. Refer to the Figure 8-328.

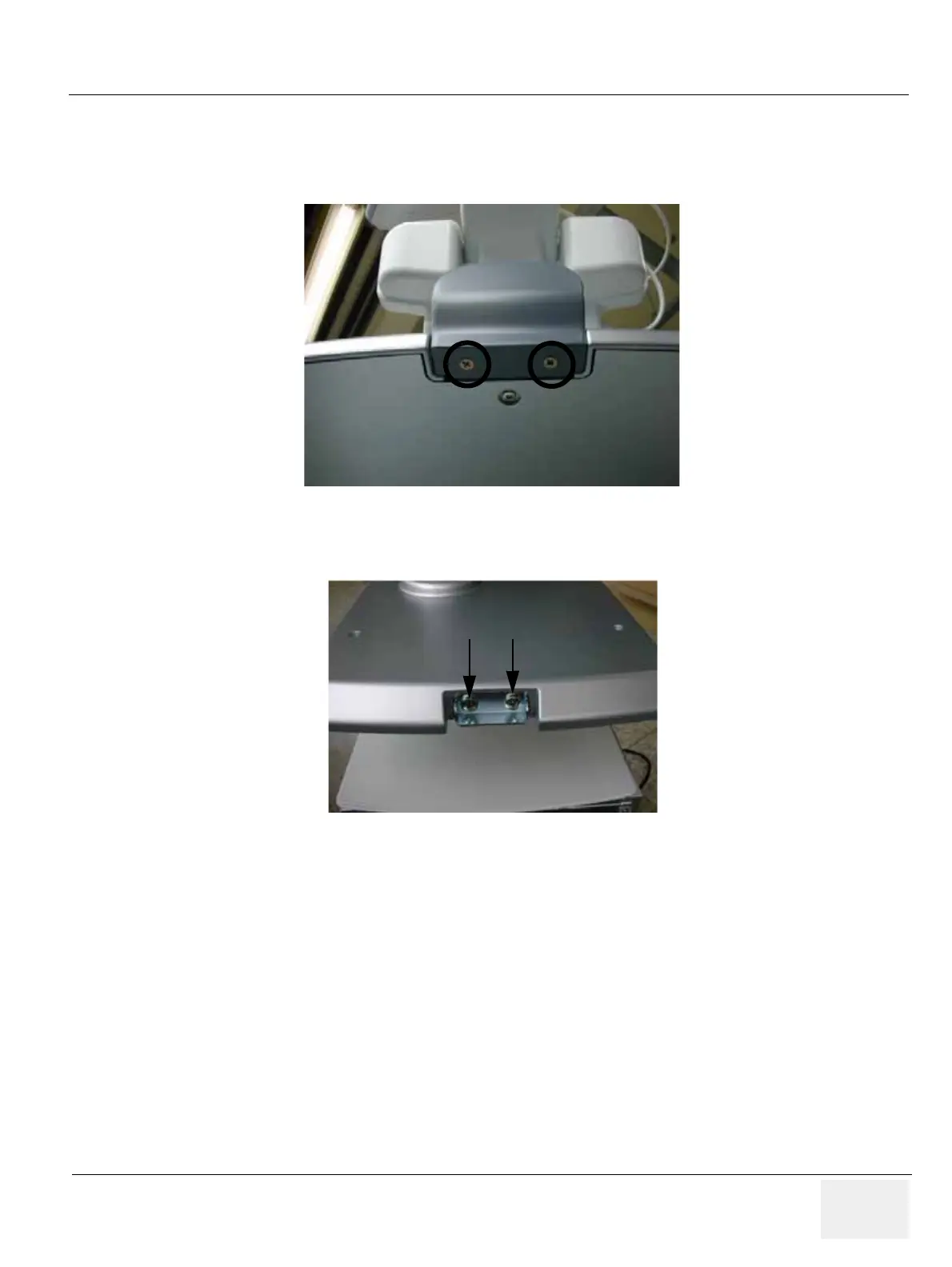

Figure 8-327 Rear Handle Installation
Figure 8-328 Rear Handle Installation
