GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 198 Section 8-7 - Mechanical Option Installation instruction
8-7-12 Printer VCR DVD Fixture Top Installation (MD-800) (cont’d)
4.) Install DVD recorder to the base bracket by screwing 2 screws on each side. Refer to the Figure 8-
325.
5.) Connect the USB cable and power cable from the DVD to the system.
6.) Connect the cables to the system on the rear panel.
7.) Install DVD hide bracket by screwing 2 screws. Refer to the Figure 8-326.

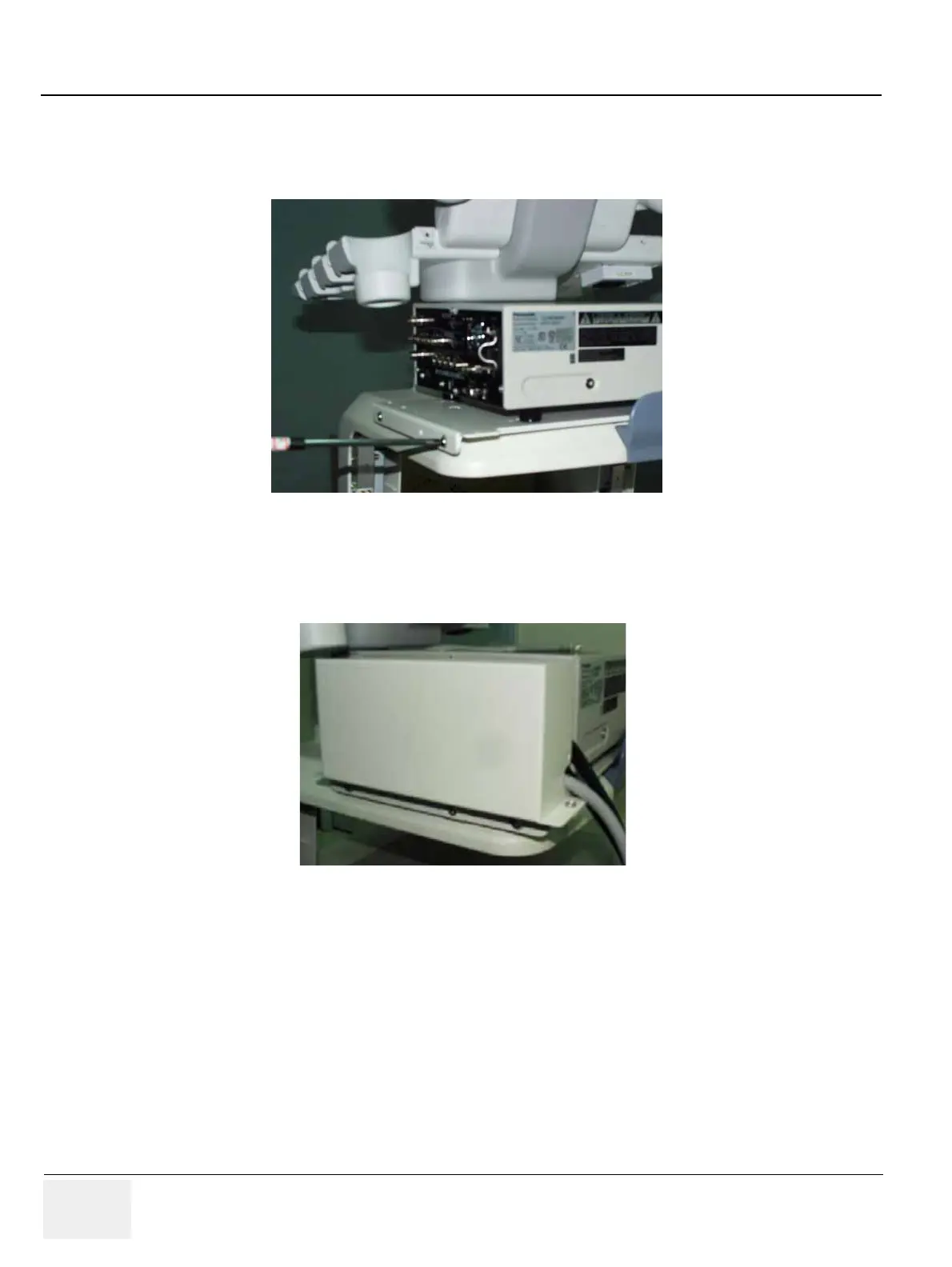

Figure 8-325 Printer VCR DVD Fixture Top installation (MD-800)
Figure 8-326 Printer VCR DVD Fixture Top installation (MD-800)
