GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 197
8-7-12 Printer VCR DVD Fixture Top Installation (MD-800)
1.) This section describes the installation procedure of DVD fixture.
2.) Unscrew 2 existing screws from the top cover. Refer to the Figure 8-323.
3.) Install Fixture Top bracket on the top cover by screwing 4 screws. Refer to the Figure 8-324.

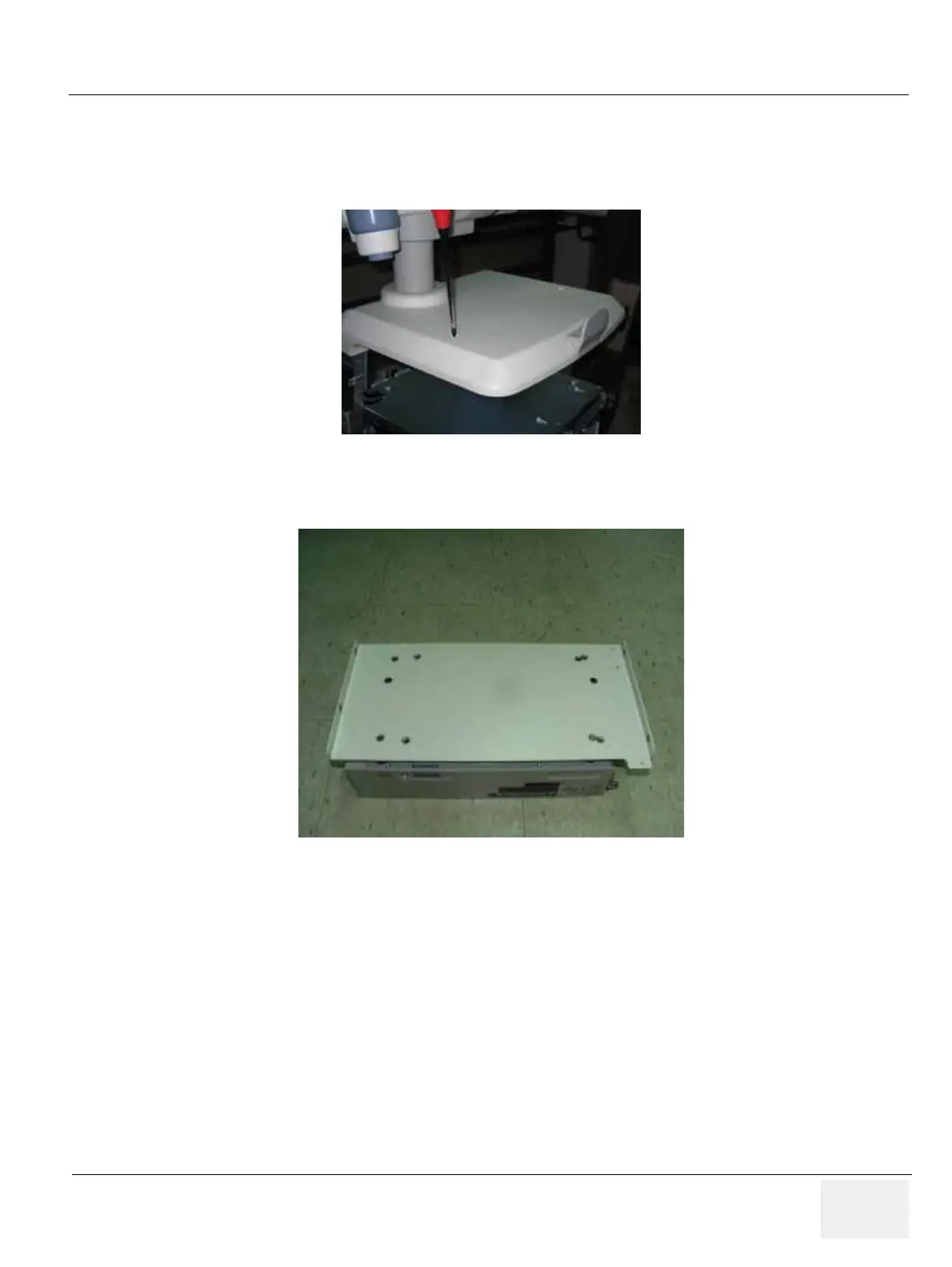

Figure 8-323 Printer VCR DVD Fixture Top installation (MD-800)
Figure 8-324 Printer VCR DVD Fixture Top installation (MD-800)
