8-7-11-2 Bracket Installation (cont’d)
7.) Connect the cables to the system on the rear panel. Refer to the Figure 8-321.
8.) Install VCR hide bracket by screwing 2 screws. Refer to the Figure 8-322.

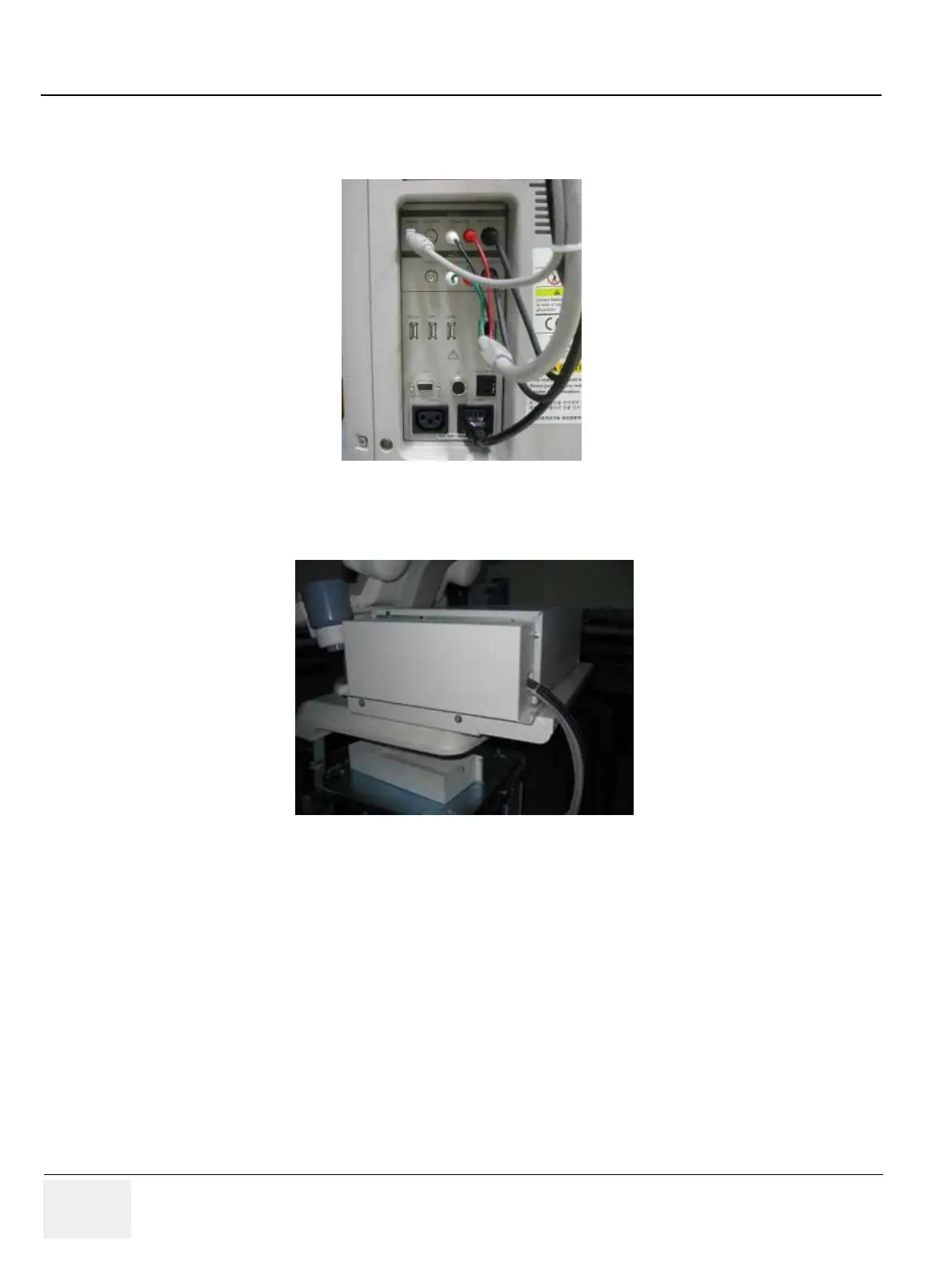

Figure 8-321 Printer VCR DVD Fixture Top installation
Figure 8-322 Printer VCR DVD Fixture Top installation
