GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8 - 195
8-7-11-2 Bracket Installation (cont’d)
4.) Install VCR recorder to the base bracket by screwing 4 screws. Refer to the Figure 8-318.
5.) Screw 2 screws on each side of the system to fix the VCR recorder with base bracket to the VCR
top bracket. Refer to the Figure 8-319.
6.) Connect the cables (Power Cable, USB cable, S-VHS Cable, and Sound cables) from the VCR to
the system. Refer to the Figure 8-320.

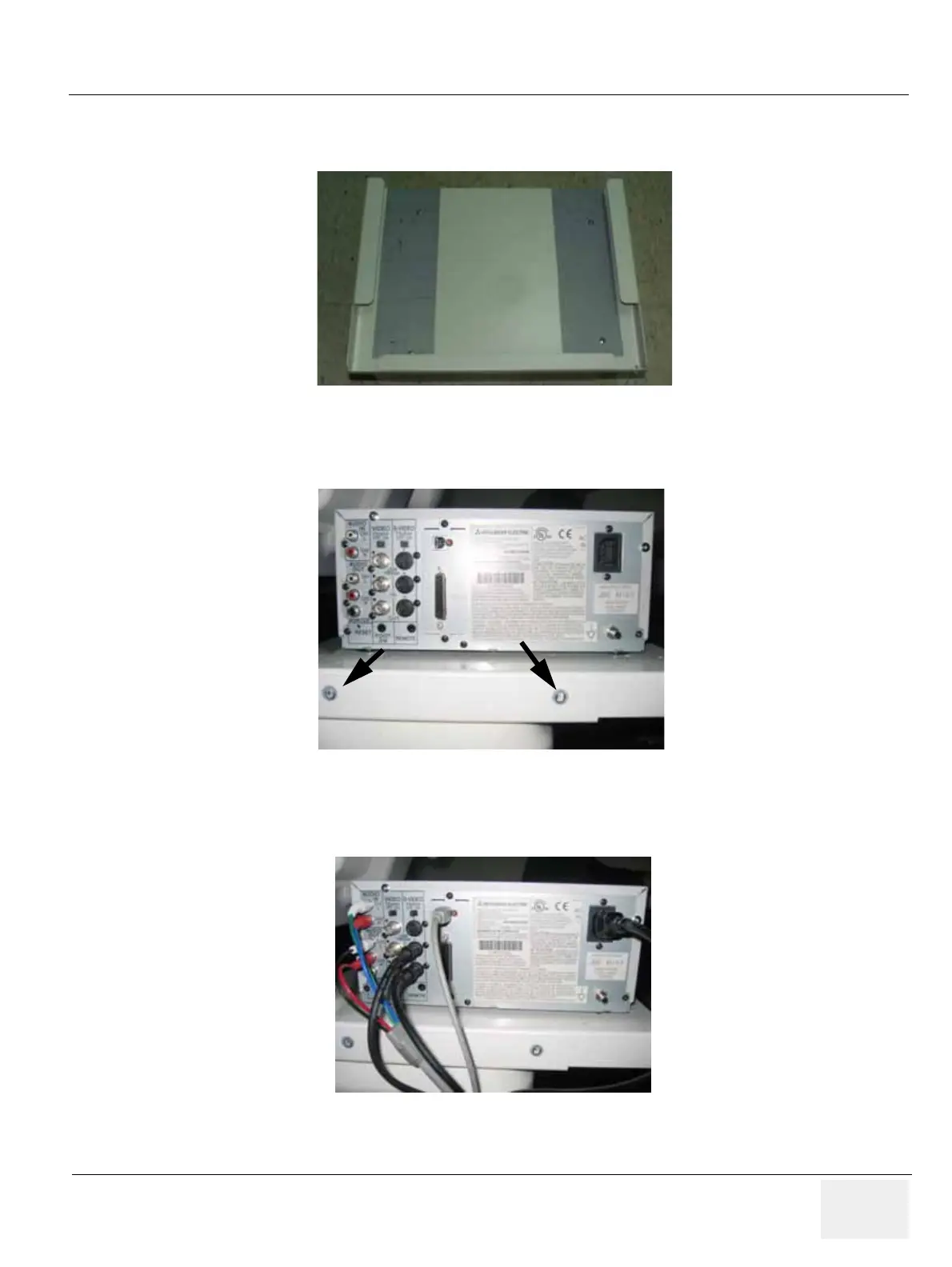

Figure 8-318 Printer VCR DVD Fixture Top installation
Figure 8-319 Printer VCR DVD Fixture Top installation
Figure 8-320 Printer VCR DVD Fixture Top installation
