GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 194 Section 8-7 - Mechanical Option Installation instruction
8-7-11-2 Bracket Installation
1.) This section describes the installation procedure of VCR recorder fixture for MD-3000 printer.
2.) Unscrew 2 existing screws from the top cover. Refer to the Figure 8-316.
3.) Install Fixture Top bracket on the top cover by screwing 2 screws. Refer to the Figure 8-317.

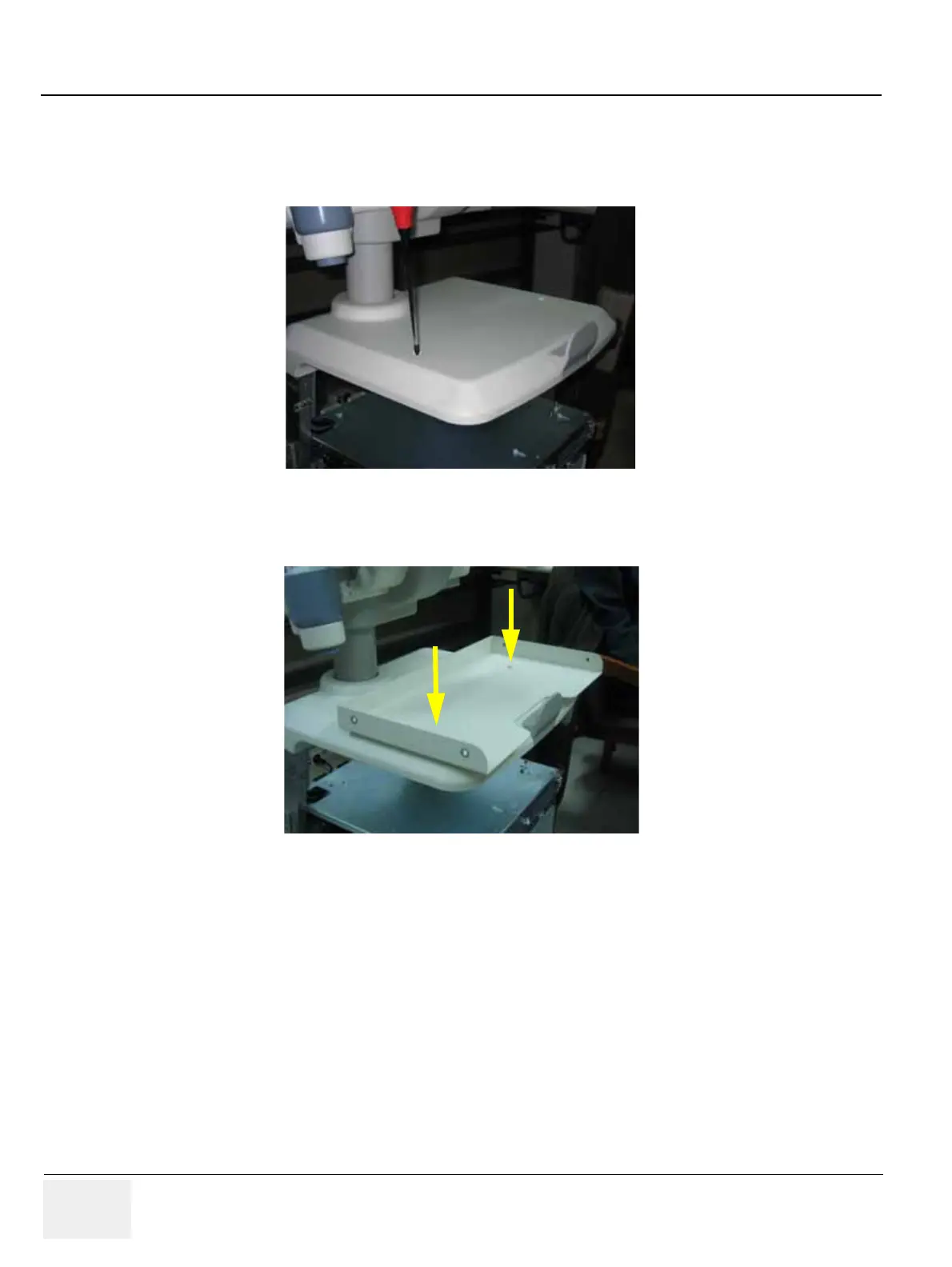

Figure 8-316 Printer VCR DVD Fixture Top installation
Figure 8-317 Printer VCR DVD Fixture Top installation
