8-7-11-1 VCR Remote Port Configuration (cont’d)
4.) Set the DIP switch on the VCR remote control panel. The SW 7 in DIP switch should be set to “ON”
position for the USB remote control . Refer to the Figure 8-314.
5.) Insert the remote control module into the VCR and connect the USB cable between the “Remote”
USB on the console rear panel and USB port of VCR.
6.) Plug the service dongle and turn on the VCR and System.
7.) Login to maintanance mode and open the device manager.
8.) Check if the VCR remote device is identified by OS. Refer to the Figure 8-315.

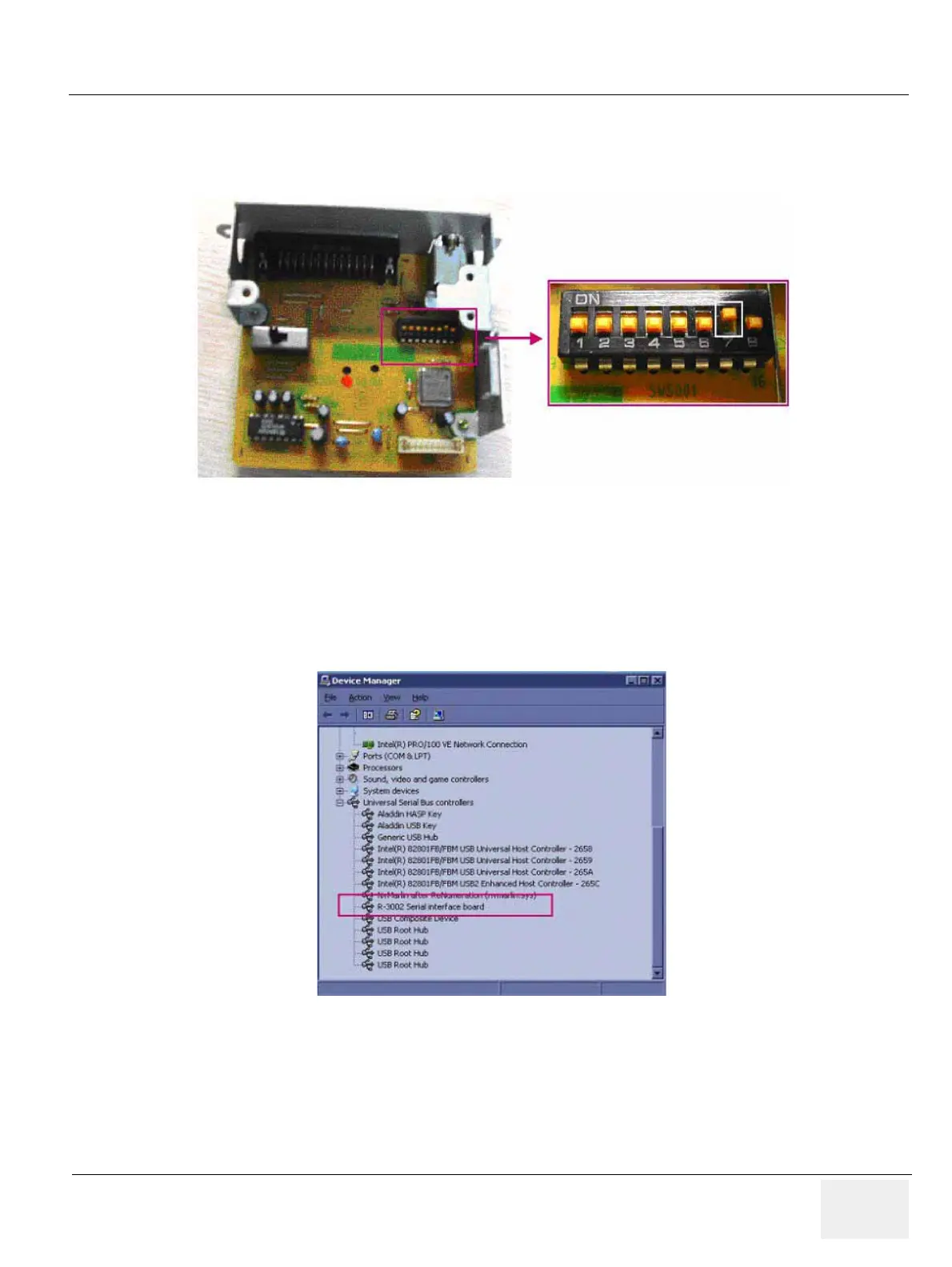

Figure 8-314 DIP Switch on the Panel
Figure 8-315 Remote device in the device manager
To Next Page
