Section 8-7 - Mechanical Option Installation instruction 8 - 201
8-7-14 Additional Task Lamp installation
1.) This is the installation instruction of additional task lamp. Refer to the Figure 8-331.
2.) Connect the USB connector to the location of light bulb mark. Refer to the Figure 8-332.
3.) Install plastic holder to the task lamp bracket. Refer to the Figure 8-333.

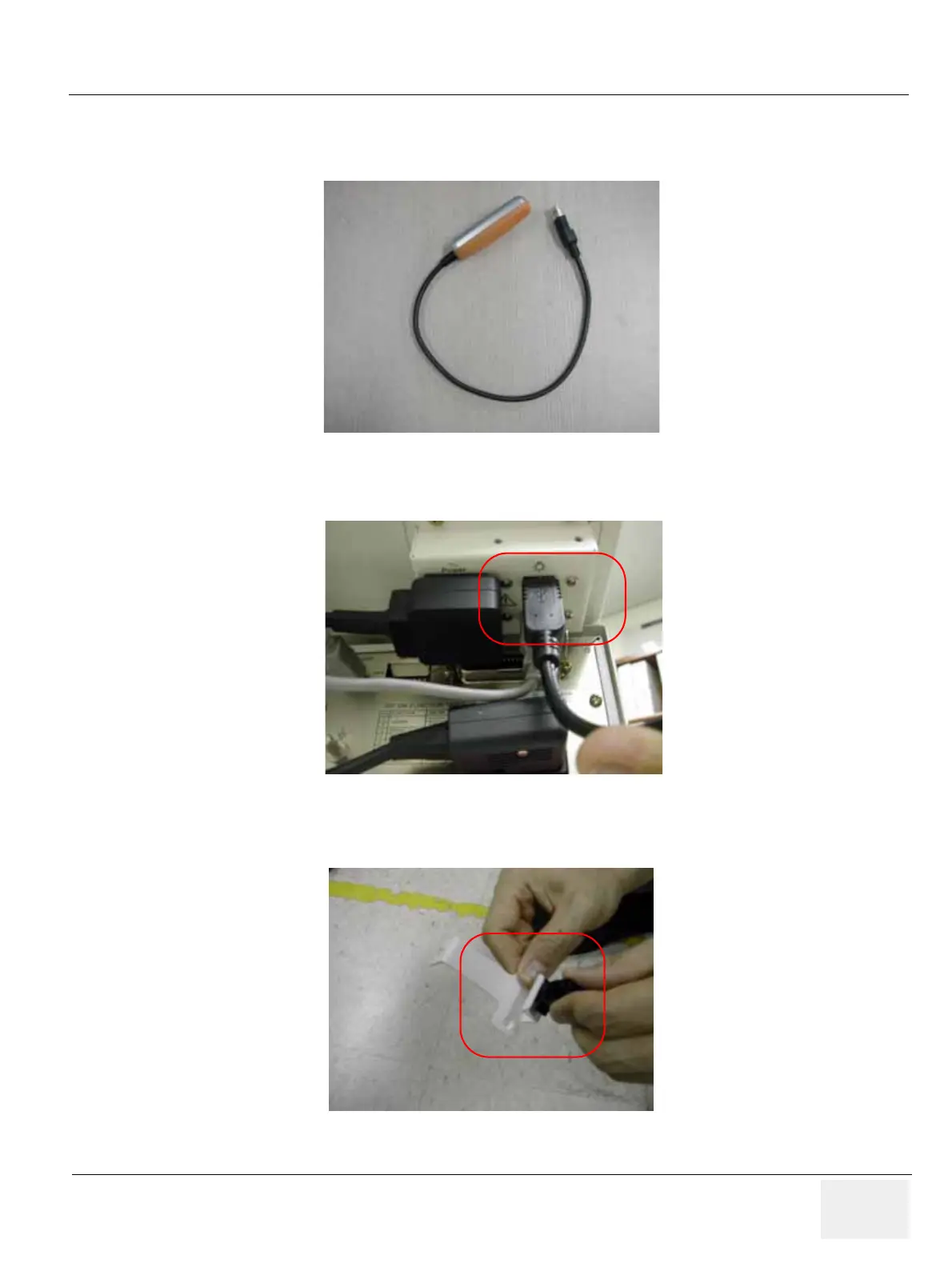

Figure 8-331 Additional Task Lamp Installation
Figure 8-332 Additional Task Lamp Installation
Figure 8-333 Additional Task Lamp Installation
