8-7-14 Additional Task Lamp installation (cont’d)
4.) Install task lamp bracket to the rear side of keyboard by screwing 2 screws. Refer to the Figure 8-
334.
5.) Fix the tasklamp light as shown on Figure 8-335.
6.) Install BW hide bracket if it is uninstalled during the installation process. Refer to the Figure 8-336.

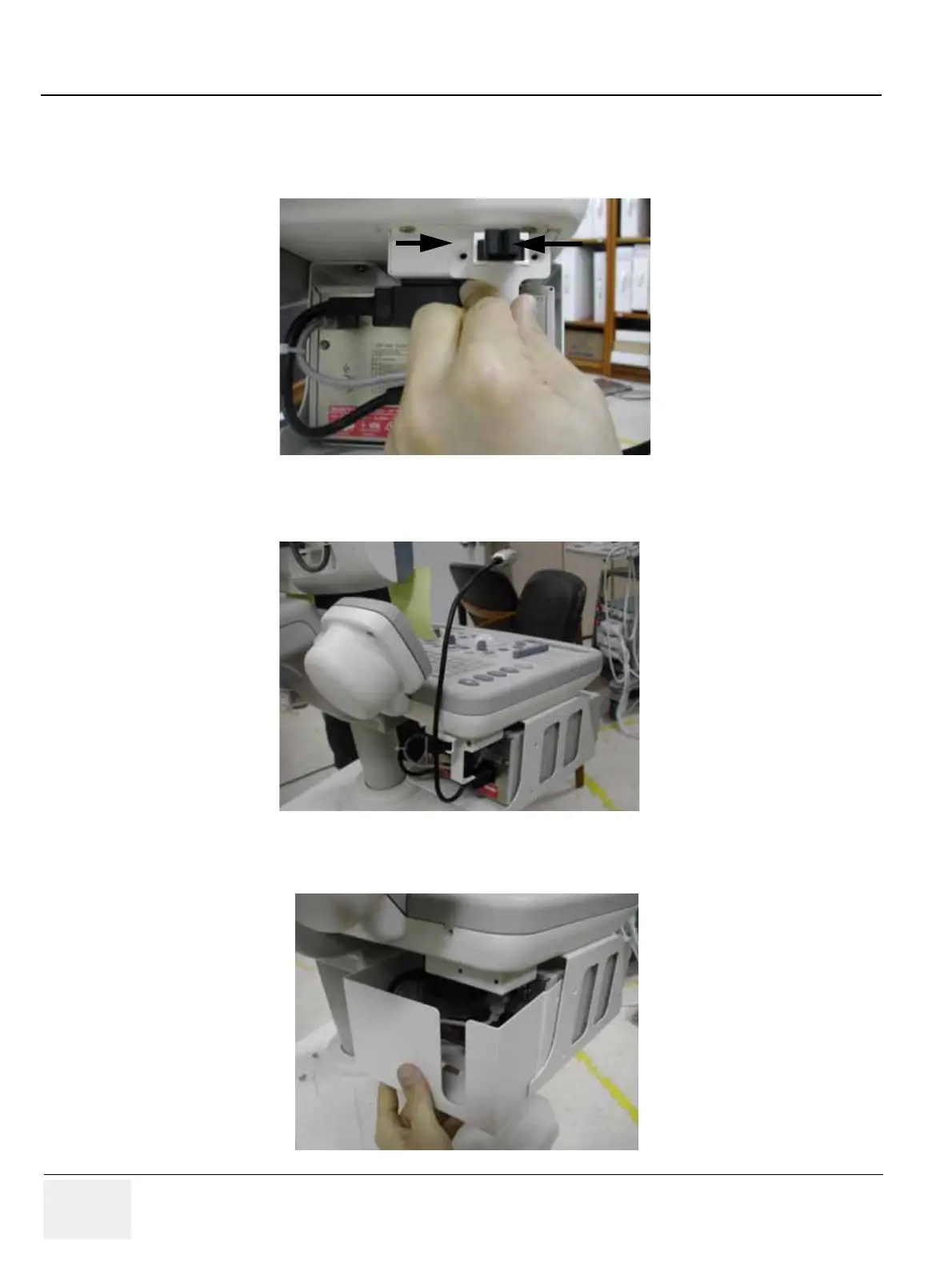

Figure 8-334 Additional Task Lamp Installation
Figure 8-335 Additional Task Lamp Installation
Figure 8-336 Additional Task Lamp Installation
