Scan Coach (Option)
LOGIQ V2/LOGI
Q V1
–
User Gui
de
2-27
Direction 5610736-
100
Rev. 9
Using Scan Coach (For 1.1.x) (continue
d)
3.
Select the protocol from the pull-down men
u, and then
select
Start
.
NOTE:
If
there is only one program in the current application, the
system will display the Scan Co
ac
h screen directly
. This
step is only available when there are two or more progr
ams.

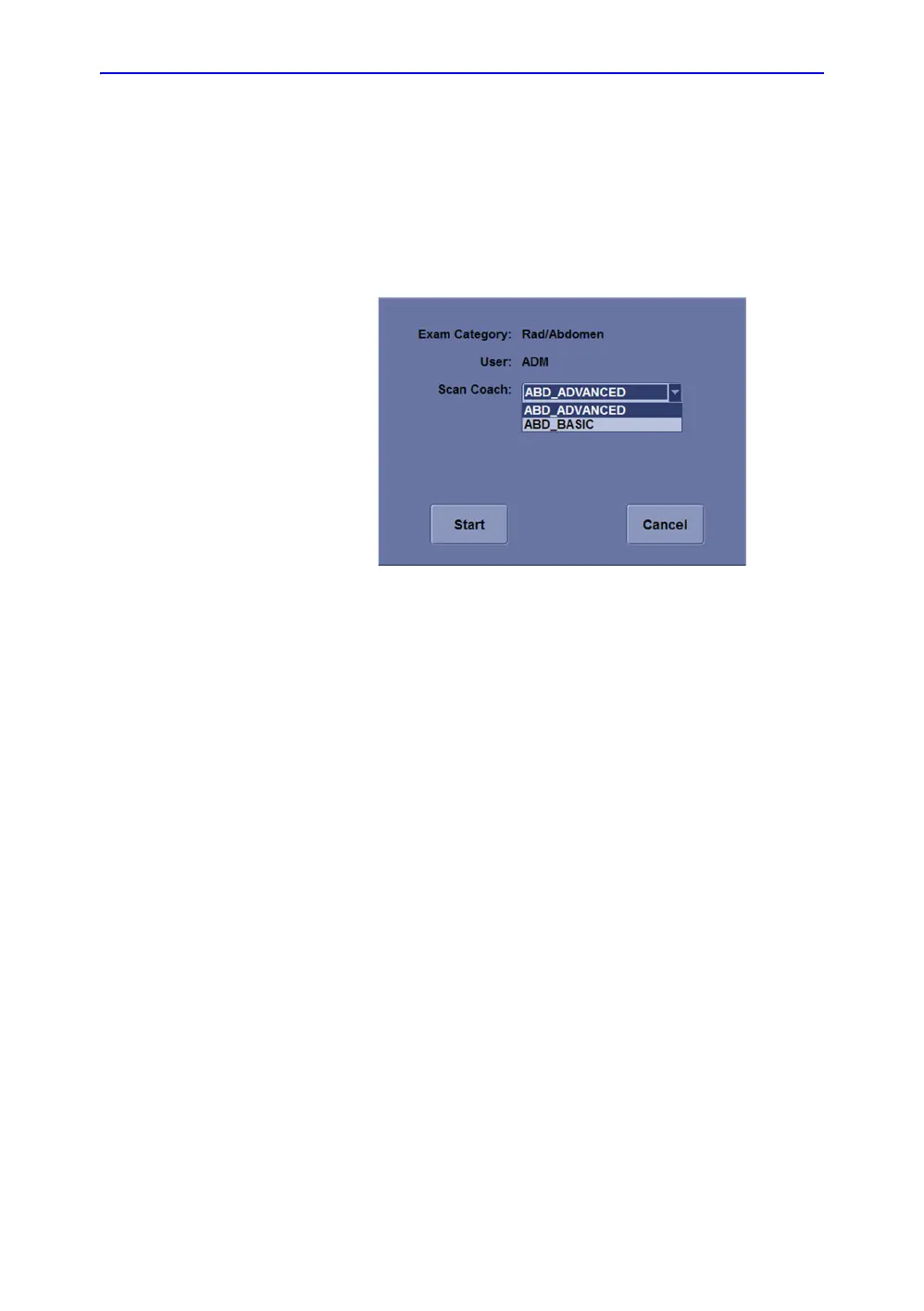

Figure
2-10.
Scan Coach S
tart
118
120
