Probe Overview
LOGIQ V2/LOGIQ V1 – User Guide 5-3
Direction 5610736-100 Rev. 9
Probe orientation
Each probe is provided with an orientation marking. This mark is
used to identify the side of the probe corresponding to the side
of the image having the orientation mark on the display.

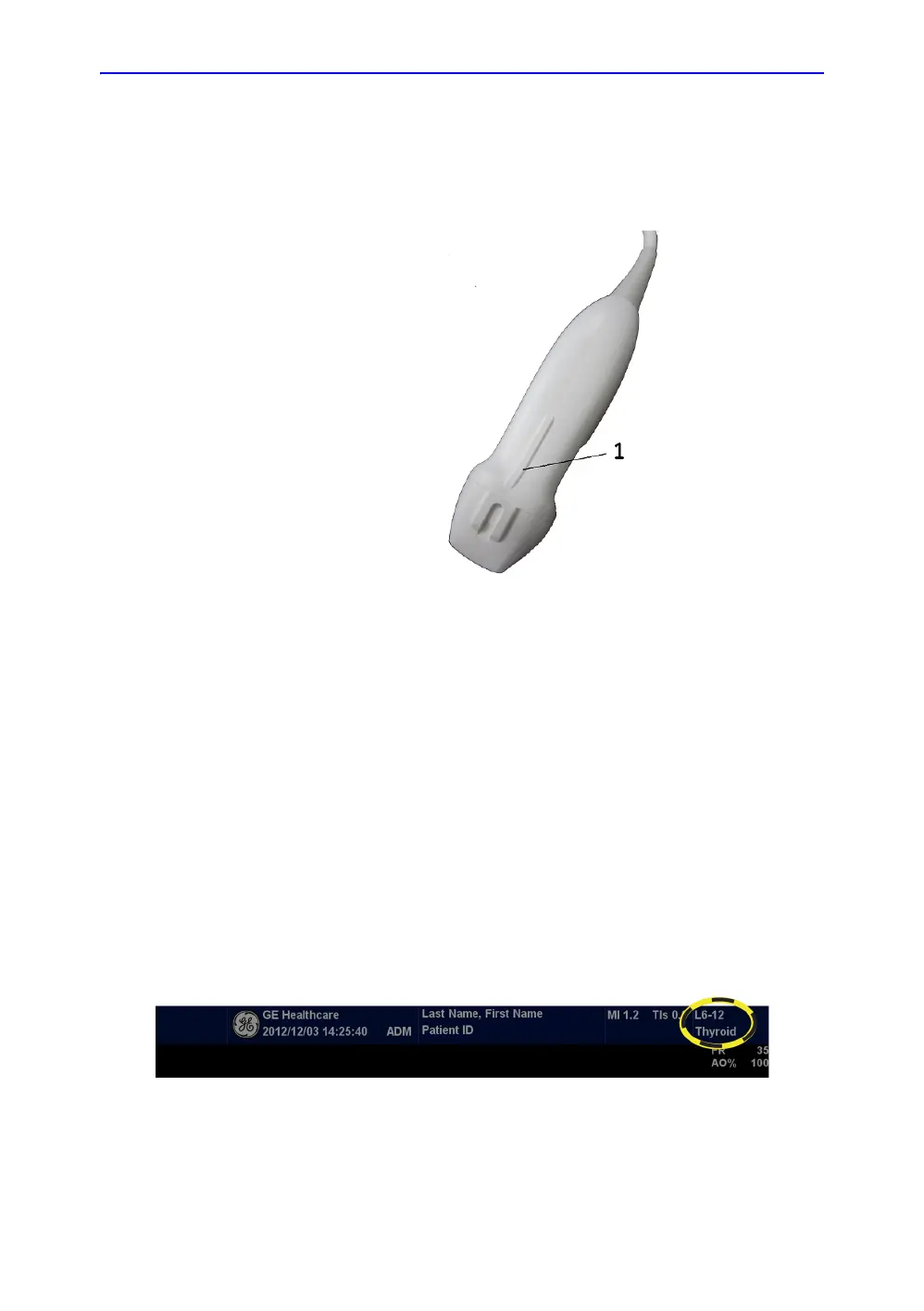

Figure 5-1. Orientation Marking on Probe (Example)
1. Orientation Mark
Labeling
Each probe is labeled with the following information:
• Seller's name and manufacturer
• GE part number
• Probe serial number
• Month and year of manufacture
• Probe designation-provided on the probe grip and the top of
the connector housing, so it is easily read when mounted on
the system and is also automatically displayed on the
screen when the probe is selected.
Figure 5-2. Displayed Probe Information
