Overview
LOGIQ V2/LOGIQ V1 – User Guide 1-23
Direction 5610736-100 Rev. 9
Peripheral/Accessory Connector Panel (continued)

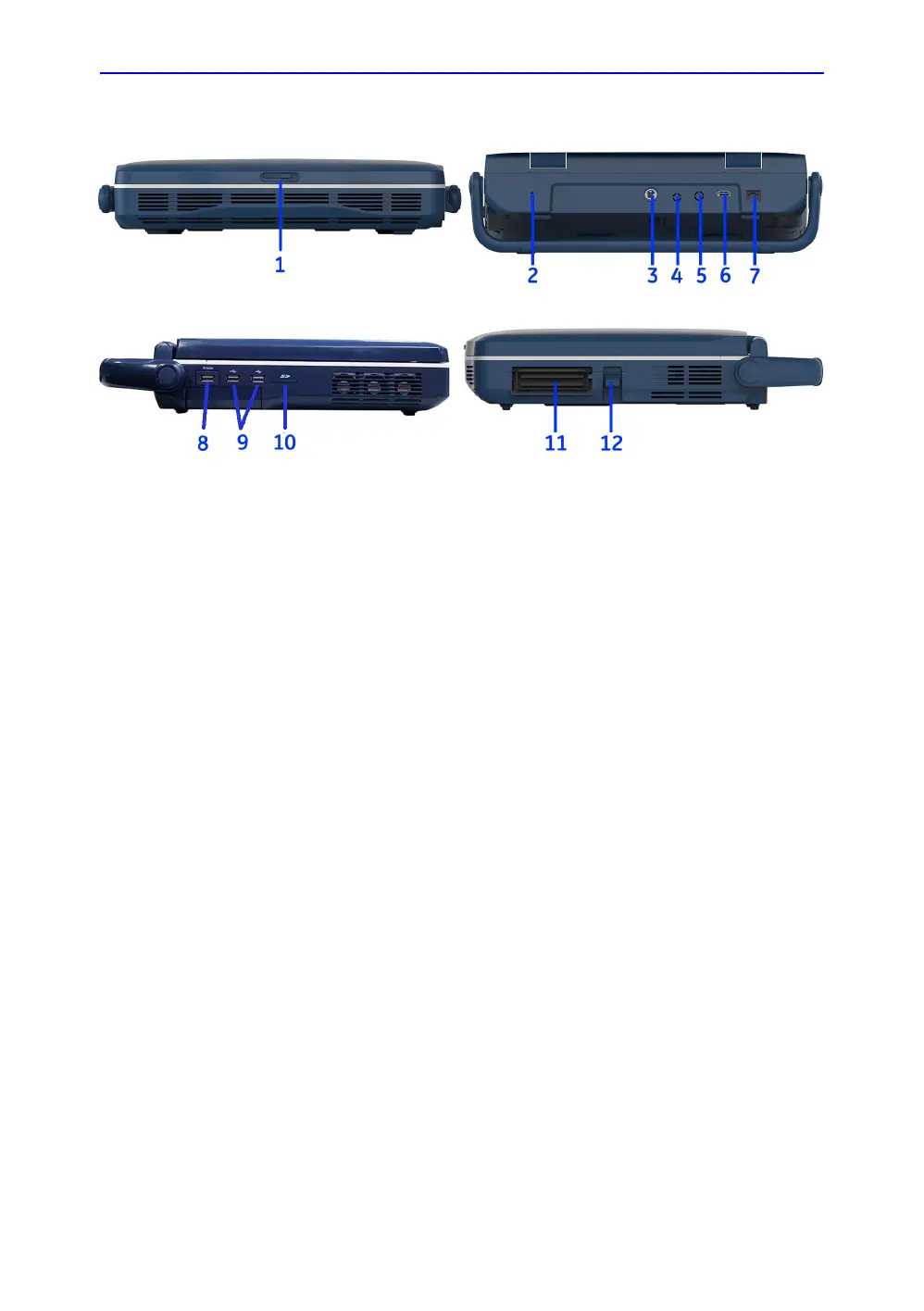

Figure 1-17. Peripheral/Accessory Connector Panel
1. LCD Monitor Locker
2. Security lock
3. Port for DC In (AC Adapter)
4. Composite out port
5. S-Video out port
6. HDMI Port
7. Network Port
8. 1 Isolated USB printer port
9. 2 general USB ports — USB Flash Drive, USB HDD,
DVD-RW, Footswitch, Wireless Lan Adapter
10. 1 SD Card port
11. 1 Probe Connector Port
12. Probe Connector Locking Lever
