LOGIQ V2/LOGIQ V1 – User Guide 6-21
Direction 5610736-100 Rev. 9

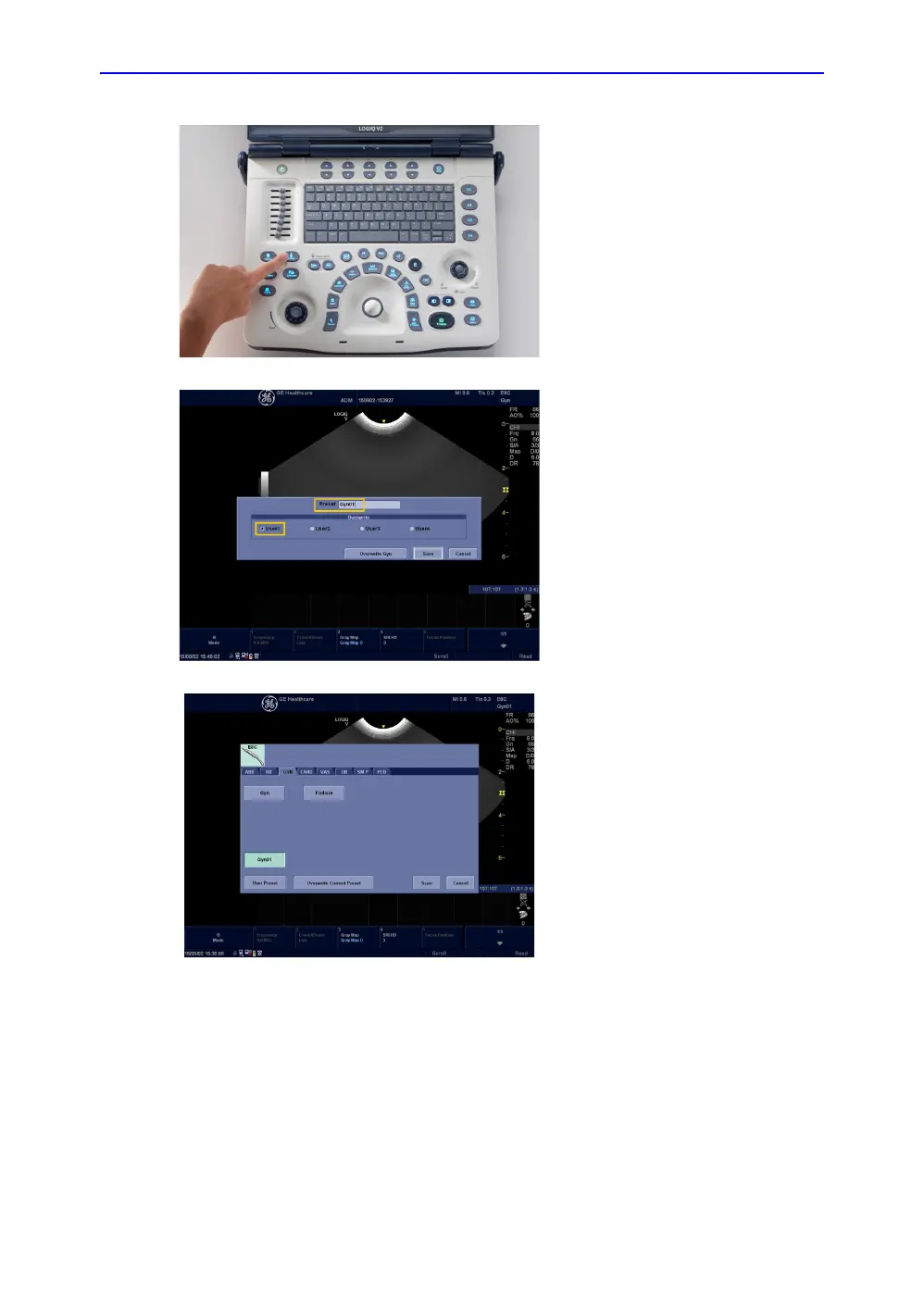

Figure 6-19. User preset set-up
4/6 To save this as a default preset, press
the Preset key on the control panel.
5/6 Click user preset menu. A pop-up
menu appears on the monitor. Enter
the name of the new preset, and click
to highlight the User1. Click on Save
when finished. The menu will
automatically close.
6/6 The next time the Preset key of the
control panel is pressed, the user
defined preset of Gyn01 will be
displayed confirming it was
successfully created and saved.
