GE LOGIQ V2 User Guide

Getting Started
1-58 LOGIQ V2/LOGIQ V1 – User Guide
Direction 5610736-100
Rev. 9

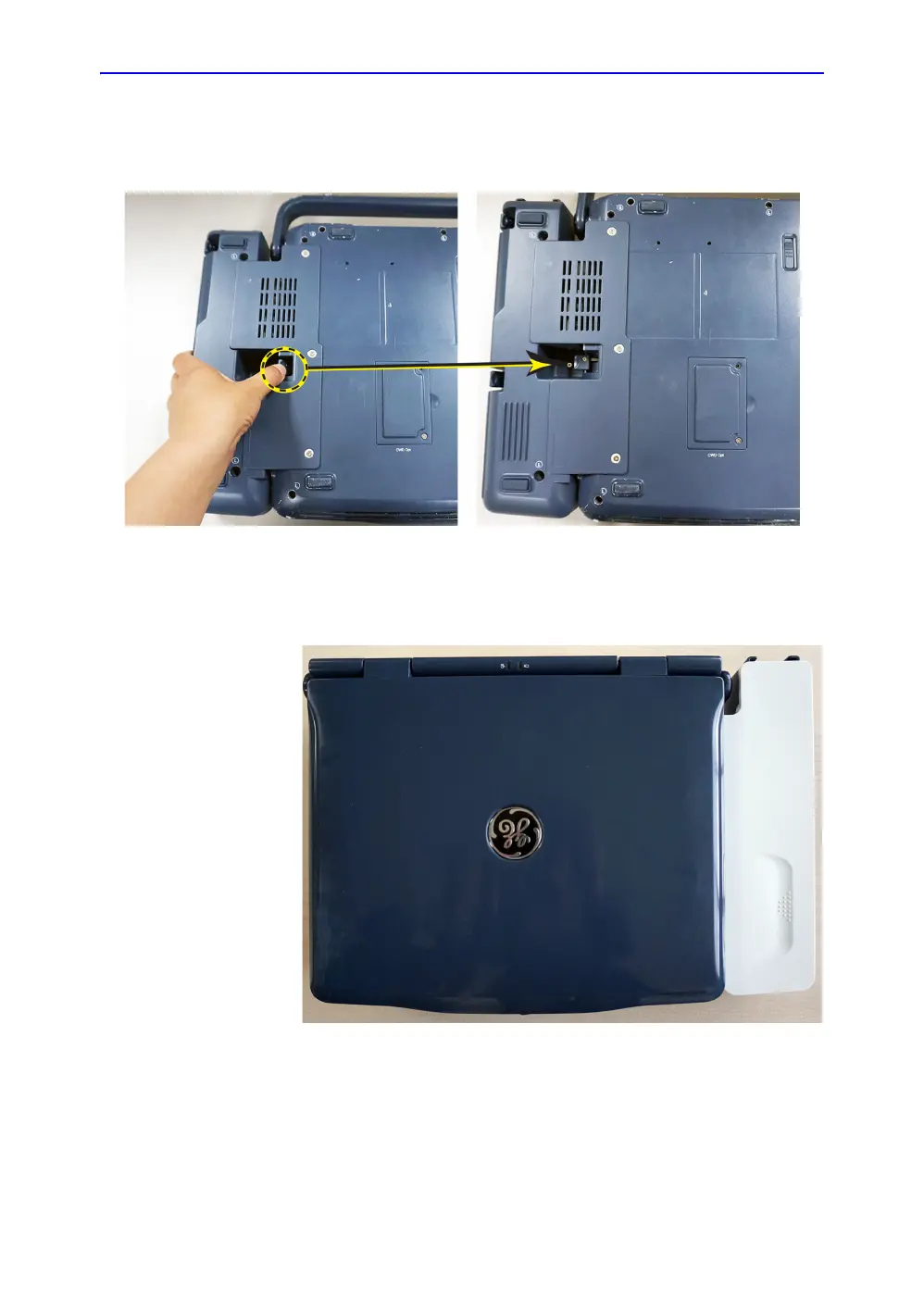

Mounting 2-Probe Port Adapter to LOGIQ V2/LOGIQ V1 (continued)
3. Flip the connector locking lever down.
Figure 1-39. 2-Probe Port Adapter connection, Step 3
4. Turn over the system with 2-Probe Port Adapter, now the
2-Probe Port Adapter is connected successfully.
Figure 1-40. 2-Probe Port Adapter connection, Step 4
