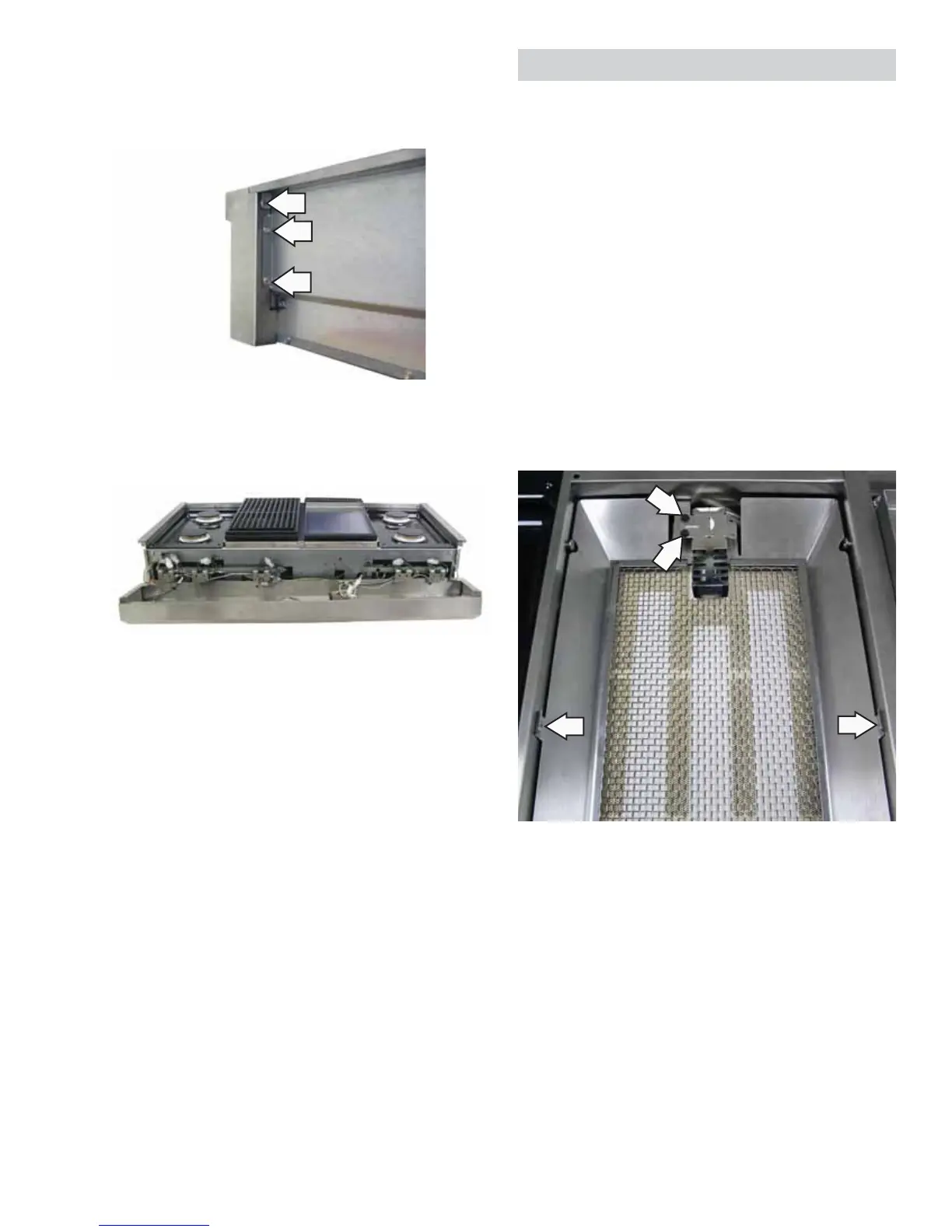

6. On rangetops, remove the two 1/4-in. hex-head
screws and the Phillips-head screw (on each
side), from the back of the control panel fl ange.
7. Pull the control panel straight out from the
chassis, then carefully lower the control panel
onto a protective, supportive surface.
Rangetop Control Panel in Service Position
Grill Assembly
Note: The following describes the procedure to
remove the grill assembly.
To remove the grill:
Lift off the grill grate and grill frame.1.
Lift the grill baffl e straight up and remove it from 2.
the 4 support posts located on the side walls.
(See Control Features - Rangetop.)
Remove the two 1/4-in. hex-head screws that 3.
attach the igniter to the igniter bracket, then
place the igniter aside.
Remove the 2 Phillips-head screws that hold the 4.
refl ector trim in place.
Lift up and remove the trim and screen. 5.
(Continued next page)
