GE Monogram ZDP486ND User Manual

– 68 –

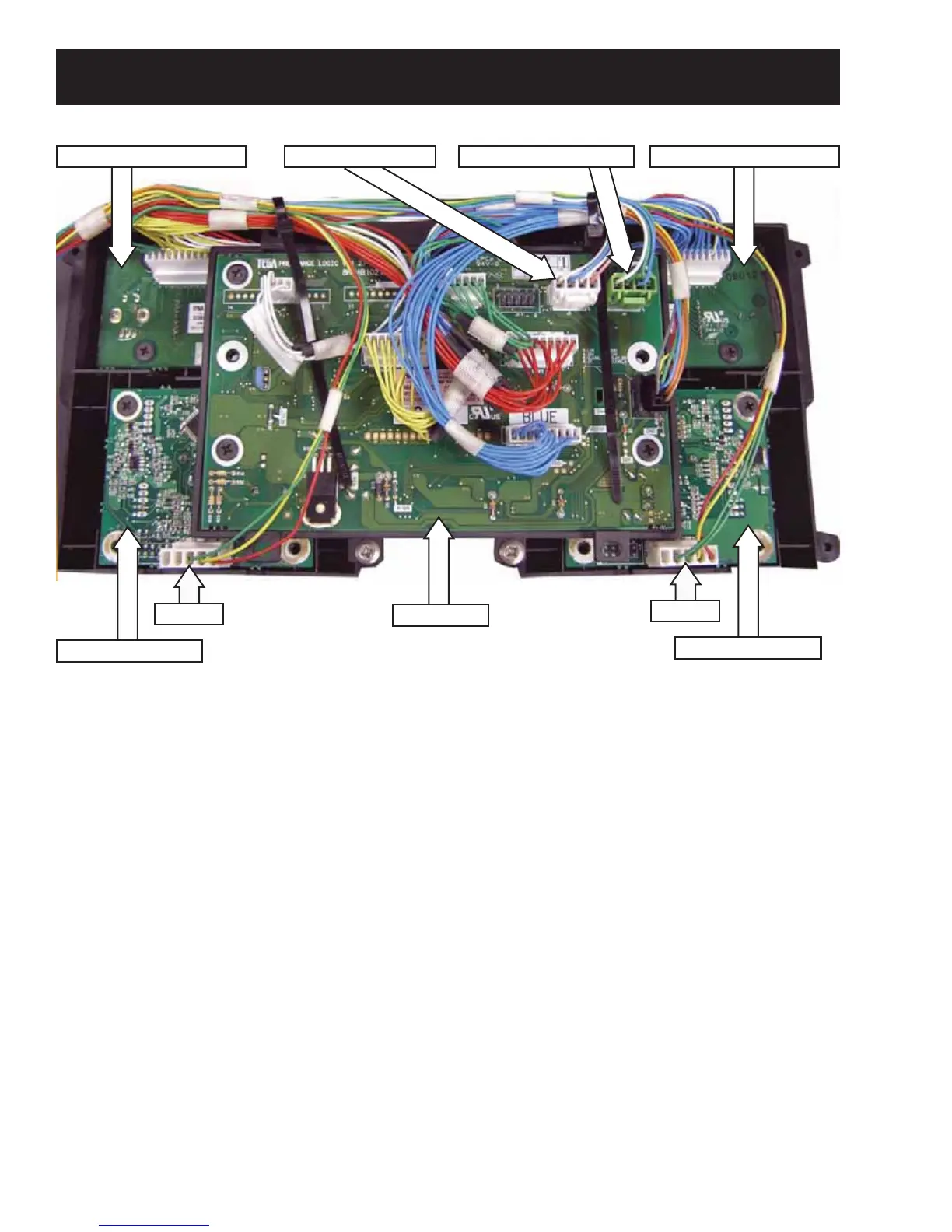

Control Board Connector Locator
(Continued Next Page)
*LINbus
*LINbus
Dual Encoder Board
Dual Encoder Board
Temperature Display Board Temperature Display Board
*LINbus: (Local Interconnect Network) : A communication network comprised of a LIN master and one or
more LIN slaves. In this double oven range, the logic board acts as the LIN master while the dual encoder
boards, (temperature encoders), and relay boards are the LIN slaves. The logic board sends messages to the
other components based on a predefi ned list of commands.
All the components receive a signal to perform a specifi c task, but only the appropriate component will
act on the message and respond accordingly. The component which acts on the specifi c task is based on
programming in the control. Since the LINbus signal is a digital control signal, special equipment, such as an
oscilloscope, is required to measure it.
Logic Board
Dual Encoder Board
Meat Probe ConnectionsSensor Connections
