– 63 –
12. Slide the hidden bake element out from the
range.

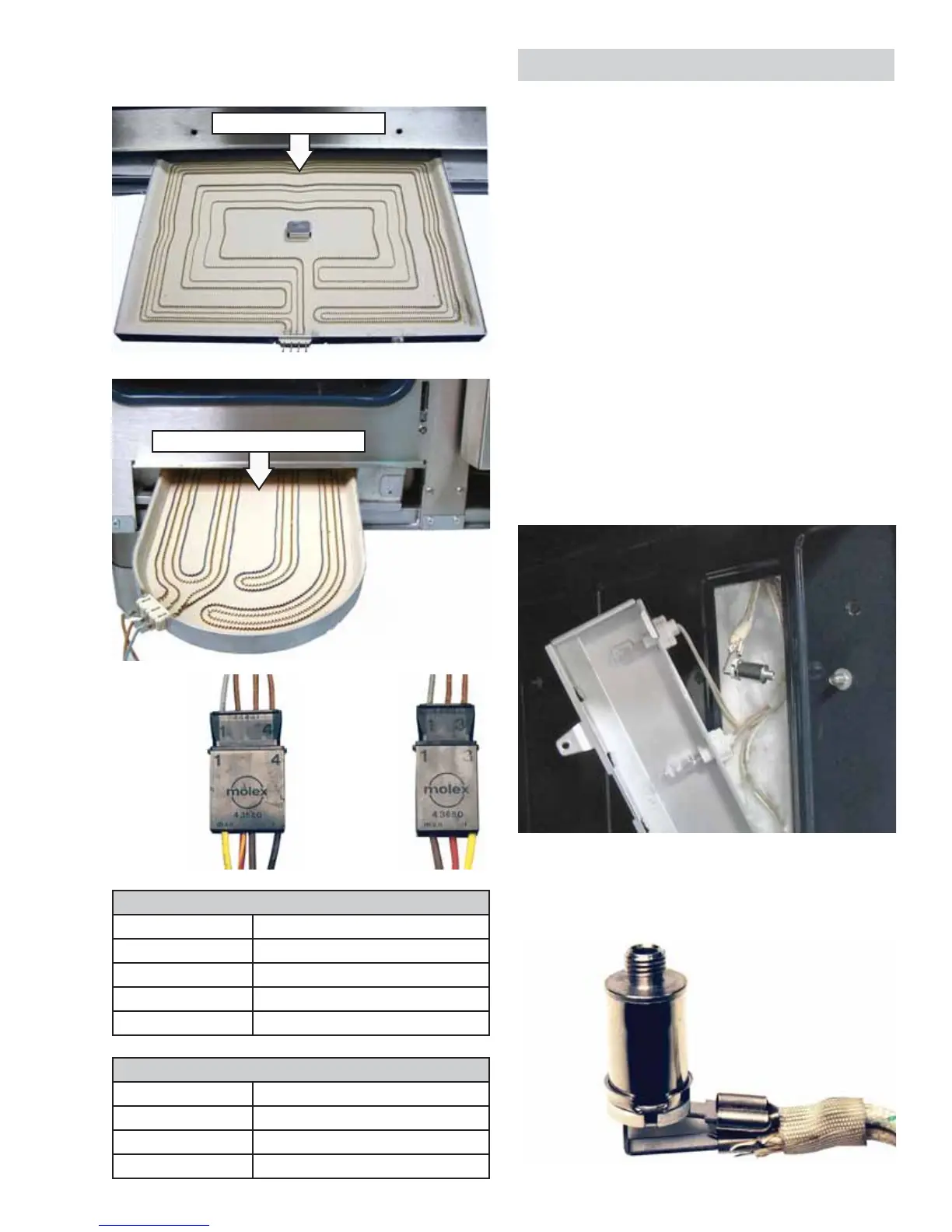

Main Oven Element Wire Identifi cation
Element Harness Connection to Range Wire
Pin #1 Yellow - Bake1 Element
Pin #2 Red/Yellow - Bake 2 Element
Pin #3 Brown - Bake 2 Element
Pin #4 Brown - Bake1 Element
Meat Probe Receptacle and Harness
Each oven is equipped with a meat probe receptacle
and harness. The probe outlet is located near the
top right front corner of the oven cavity on 30- and
36-in models, and on the right side of the main oven
and the left side of the companion oven on 48-in
models. The meat probe outlet is connected to the
logic board in the control compartment with the
harness. The meat probe has a resistance value of
30K-50K Ω at room temperature.
To remove the meat probe receptacle:
Separate the light housing from the oven liner 1.
on the probe side of the oven cavity. (See Oven
Light Assemblies.)
Remove the 3/8-in. hex-head nut that holds the 2.
meat probe outlet to the inside of the oven.
Pull the meat probe receptacle out of the oven 3.
liner.
(Continued next page)
Companion Oven Element Wire Identifi cation
Element Harness Connection to Range Wire
Pin #1 Brown - Bake 1 and 2 Element
Pin #2 Red - Bake 2 Element
Pin #3 Yellow - Bake 1 Element
Main Oven Bake Element
Companion Oven Bake Element
Main Bake
Wire Harness
Companion
Bake Wire
Harness
4. Note the location of each wire, then disconnect
the wires from the meat probe receptacle.
To Next Page
