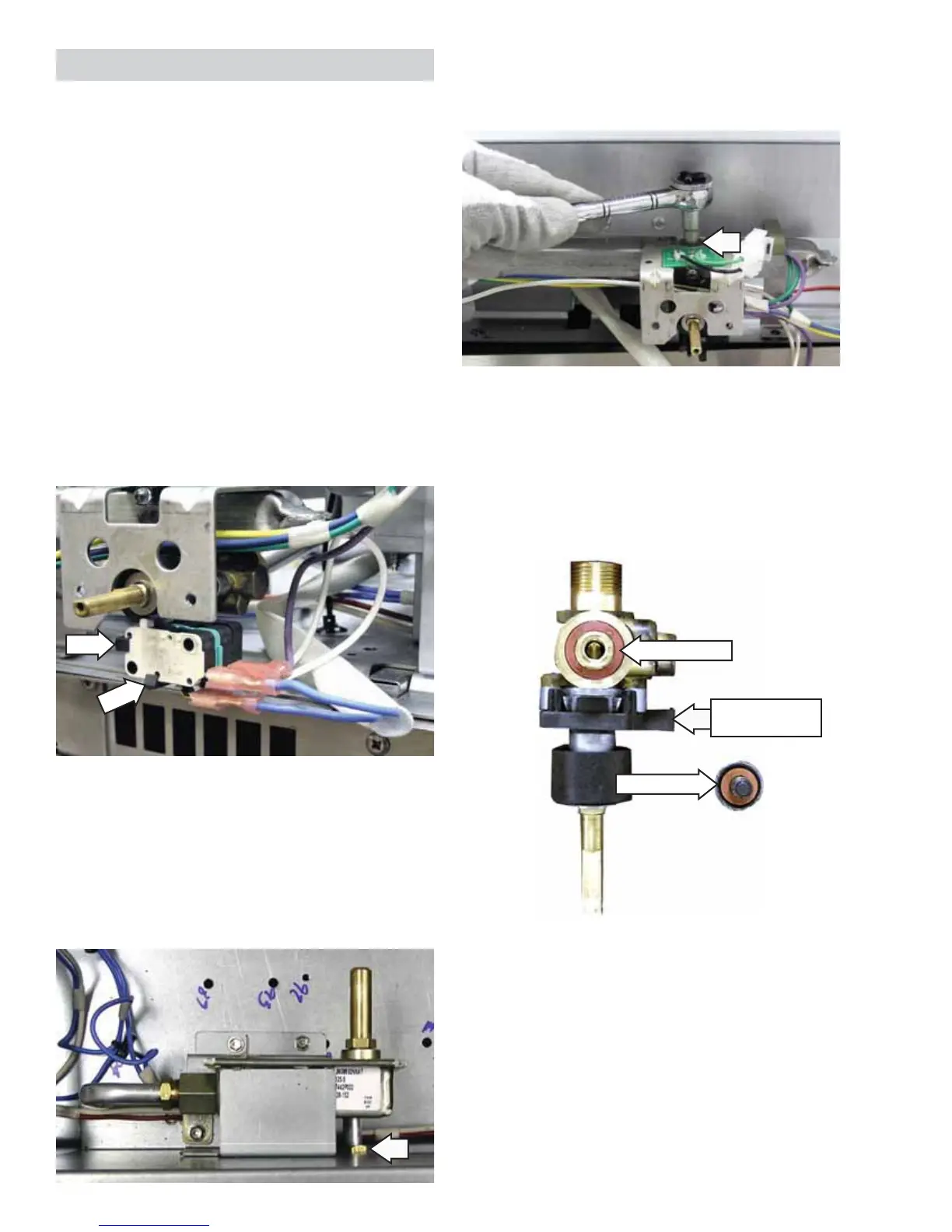

Grill Control
The grill control is attached to the manifold bracket.
A switch bracket is attached to the control and
secures 2 switches. The front switch controls
the igniter and the rear switch controls the LED
indicator. When the Grill knob is turned to the
ON position, both switches close contacts. Both
switches can be replaced separately.
To remove the grill control switches:
Place the control panel in the service position.1.
(See Control Panel.)
Carefully press the 2 locking tabs away from 2.
the switches and remove the switches from the
switch bracket.
Mark and disconnect the wires from the 2 3.
switches.
Tab
Tab
To remove the grill control:
Remove the grill control switches. 1.
Remove the grill assembly. (See 2. Grill Assembly.)
Remove the 5/8-in. nut from the grill control gas 3.
outlet tube.
4. Using a ratchet wrench, remove the 1/4-in.
hex-head screw that attaches the control to the
manifold.
5. Separate the control from the gas outlet tube
and manifold.
Caution: Ensure the control seal and the screw seal
are in place BEFORE installing the control.
Note: Switch mounting bracket is a part of the valve
assembly.
Screw Seal
Control Seal
Switch Mounting
Bracket
