– 51 –

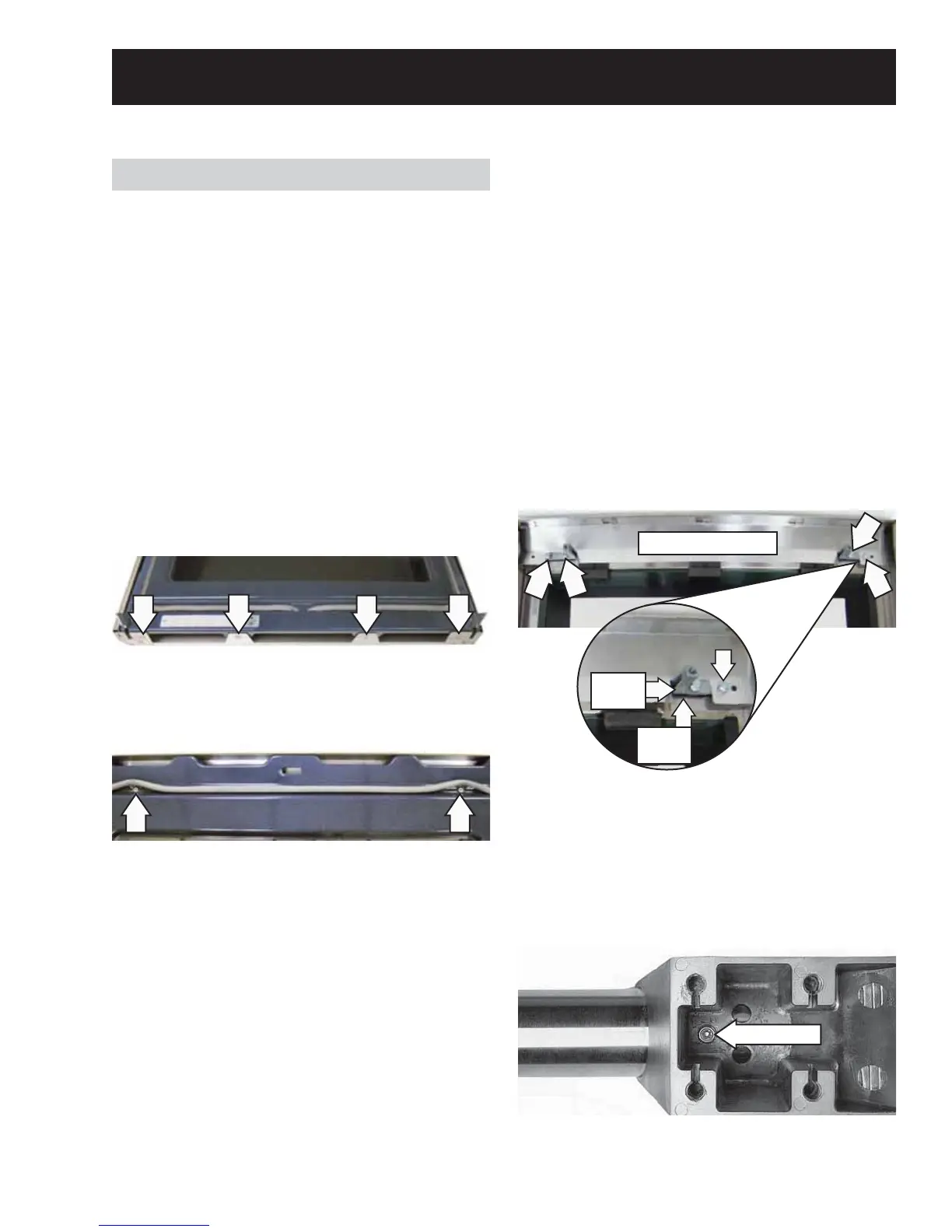

Door Assembly
The oven door can be separated into 2 assemblies.
The outer assembly consists of the outer panel and
a replaceable door handle. The inner assembly is
made up of the inner panel, door gasket, 3 glass
panels, insulation, heat barrier, and replaceable door
hinge assemblies.
To separate the door assemblies:
Remove the door.1.
Place the door assembly, gasket side up, on a 2.
protective surface.
Remove the 4 Phillips-head screws (3 on 3.
companion oven door) that attach the inner
door assembly to the outer door assembly.
Oven Components
(Continued next page)
4. Remove the 2 Phillips-head screws located
under the door gasket at the top of the door.
Note: The inner door assembly is heavier than the
outer door assembly.
5. Separate the inner door assembly from the
outer door assembly.
To replace the outer door assembly:
Separate the door assemblies. (See 1. To separate
the door assemblies, this section.)
Remove the 3/8-in. hex-head screw that 2.
attaches the right-side of the door panel
refl ector to the right-side liner support.
Remove the remaining 3/8-in. hex-head screw 3.
that attaches the right side liner support and
support spacer and remove the two 3/8-in.
hex-head screws that attach the left-side liner
support and spacer.
Lift and remove the refl ector and liner supports 4.
from the outer panel.
Door Panel Refl ector
Support
Spacer
Liner
Support
5. Remove the remaining four 3/8-in. hex-head
screws (2 on each side) that attach the door
handle assembly to the outer door panel.
Note: The tubular door handle is inserted and
secured to each handle support with a 1/8-in. Allen
screw located inside the support.
Allen Screw
Note: For further details, see Oven Doors (exploded
view), this section.
