– 44 –
Transformer
The transformer is located under the left-side
surface burner pan. The transformer windings have
an approximate resistance value between:
Brown to brown (120 VAC primary) - 33 Ω
Brown to red (240 VAC secondary) - 188 Ω
To remove the transformer:
Remove the left-side surface burner pan. (See 1.
Surface Burner Pan.)
Lift and peel back the front of the heat barrier to 2.
expose the transformer's front mounting screw.
Remove the two 1/4-in. hex-head screws that 3.
attach the transformer to the burner box.
Disconnect the surface burner igniter switch 4.
wire harness.
Remove the top screw from the harness bracket.5.

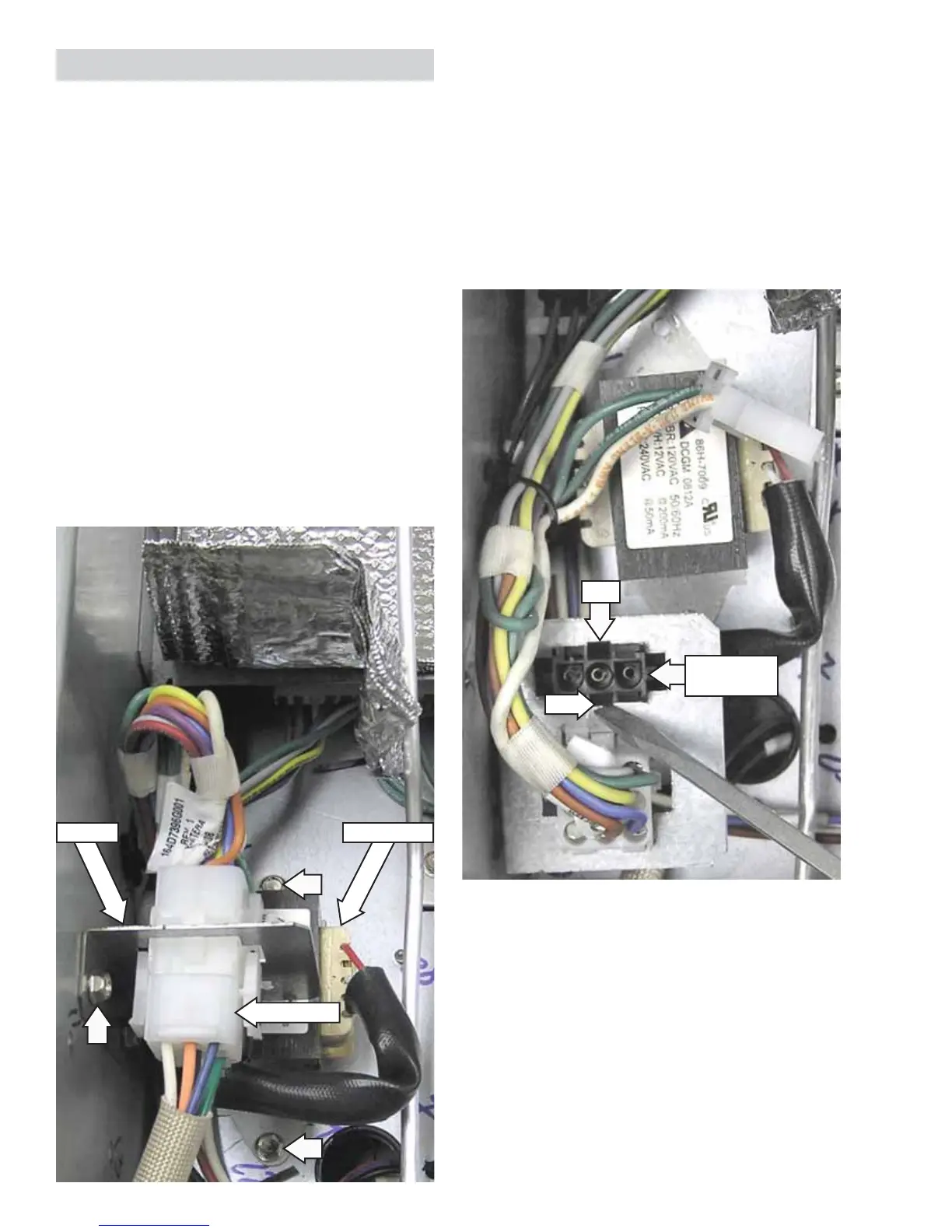

Transformer
Disconnect
Bracket
6. Maneuver the transformer to the right, then
rotate the bracket forward to the horizontal
position.
7. Disconnect the (secondary) wiring connector
from the transformer harness that is retained in
the harness bracket.
8. Using a fl at blade screwdriver, push on the 2
tabs and remove the transformer (secondary)
wire harness from the harness bracket.
Transformer
Wire Harness
Tab
Tab
9. Disconnect the (primary) wire harness.
To Next Page
