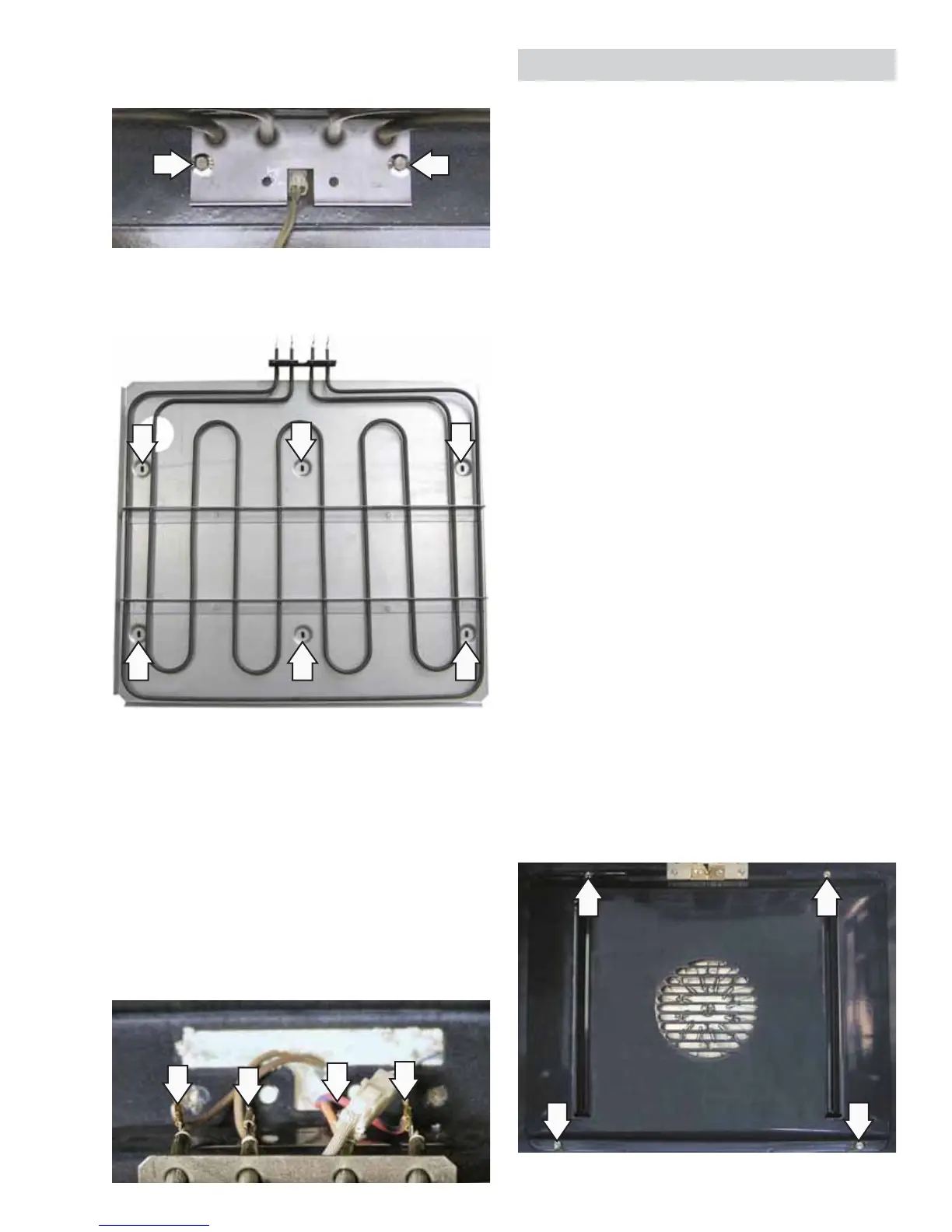

6. Carefully pull, then lower the broiler element
towards the front of the oven until the element
terminals are accessible.
IMPORTANT: The lower wattage outer element
utilizes
16
-in. terminal connections. The higher
wattage inner element utilizes 1/4-in. terminal
connections.
7. Disconnect the wires from the broiler element.
5. Remove the 1/4-in. hex-head screws that hold
the broiler element refl ector to the oven cavity.
Main Oven Refl ector Screw Locations
4. Remove the two 1/4-in. hex-head screws that
attach the element bracket to the oven liner.
Convection Bake Element
The convection bake element is composed of an •
inner and an outer element. It is replaced as one
unit.
• The main oven inside element is rated at 900
watts, has an approximate resistance value of
62 Ω, and draws approximately 3.4 amps.
• The main oven outside element is rated at 1600
watts, has an approximate resistance value of
35 Ω, and draws approximately 6.3 amps.
The companion oven inside element is rated at •
800 watts, has an approximate resistance value
of 69.25 Ω, and draws approximately 3.0 amps.
• The companion oven outside element is rated
at 1425 watts, has an approximate resistance
value of 39 Ω, and draws approximately 5.5
amps.
T• he convection element can be tested and
replaced from inside the oven cavity.
The convection bake element is located on the •
back wall of the oven and can be removed from
inside the oven cavity.
To remove the convection bake element:
Remove oven racks. (See 1. Oven Racks.)
Note: To remove the convection cover in the
companion oven, it is necessary to remove one of
the rack supports. (See Oven Light Assemblies.)
Remove the four 1/4-in. hex-head screws that 2.
hold the convection cover to the back wall of the
oven cavity.
