– 50 –
Unlock
Switch
Lock
Switch
Lock
Motor
Door
Switch
Lock
Hook
Spring and
Plunger
Mounting
Plate

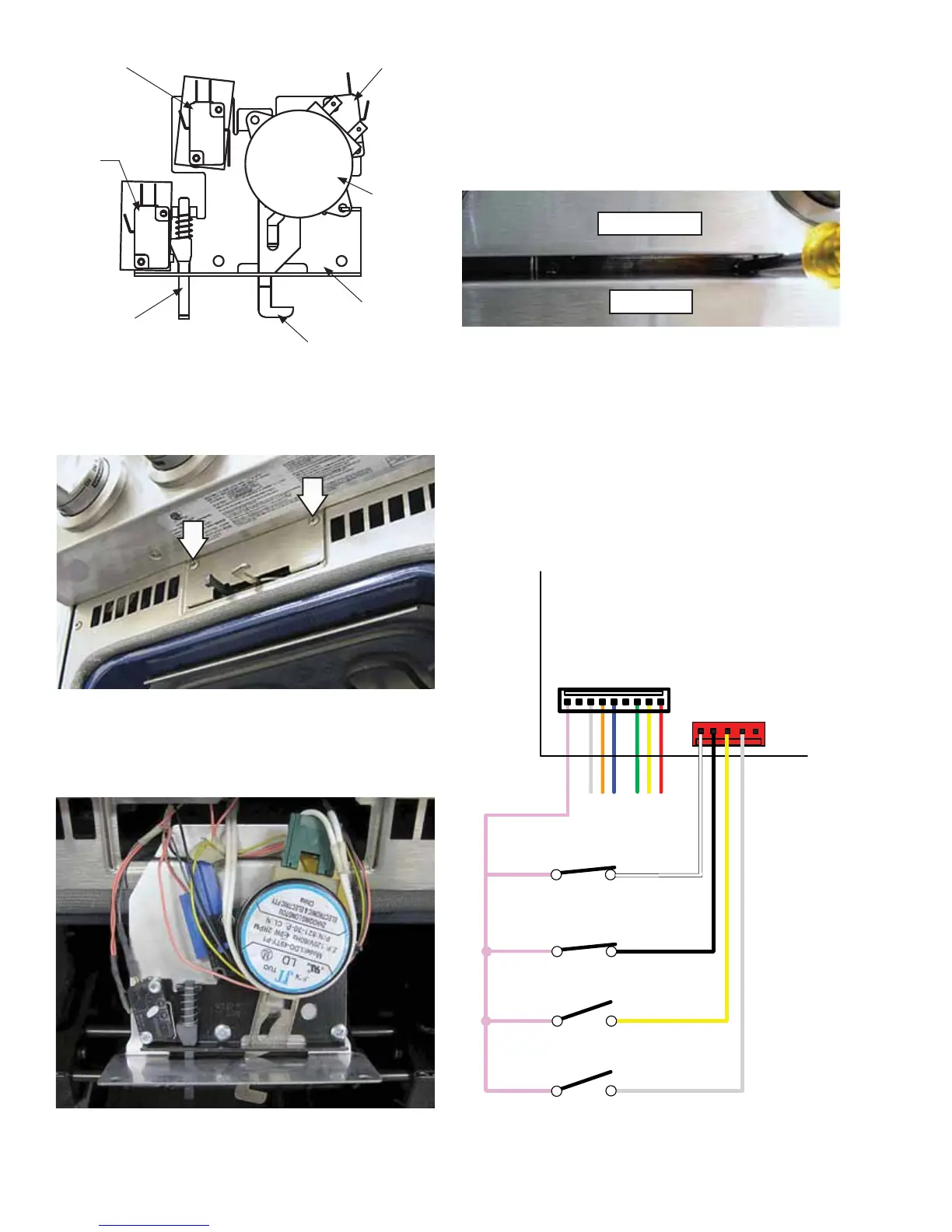

The lock assembly is attached to the oven frame by
two 1/4-in. hex-head screws.
There is suffi cient wiring to pull the door lock
assembly out completely for service.
The lock motor has approximate resistance value of
1.9K Ω.
Caution: It is possible to reconnect the switch wiring
incorrectly to the lock assembly. When reconnecting
the wiring, make sure it is properly connected to the
lock assembly before turning the power back on.
If the lock motor fails during a self-clean cycle,
there is suffi cient space between the oven door and
control panel to remove the 2 Phillips-head screws
holding the lock motor assembly. Carefully opening
the door will pull the lock motor assembly out far
enough to service.
Oven Door
Control Panel
Lock Motor Circuit
J16
J17
1
W
B
Y
S
PSO
N
G
YR
9
1
5
RELAY BOARD
P
B
Y
S
DOOR STATUS
DOOR LOCK
DOOR UNLOCK
SAIL SWITCH
