Note: In the following step, ensure that the spring
clip is captured and retained inside the griddle
burner box.
6. Squeeze the ends of the spring clip and retract
the clip from the harness access opening on the
right side of the griddle burner box.
7. Lift the burner and pull the igniter wiring and
harness connector through the opening.
8. Disconnect the igniter wire harness connector
and remove the two 1/4-in. hex-head igniter
screws.
9. Remove the grease trough.
10. Remove the 4 Phillips-head screws that attach
the rear trim.
11. Place the control panel in the service position.
(See Control Panel.)
12. Remove the 2 Phillips-head screws and the
center trim, if applicable.

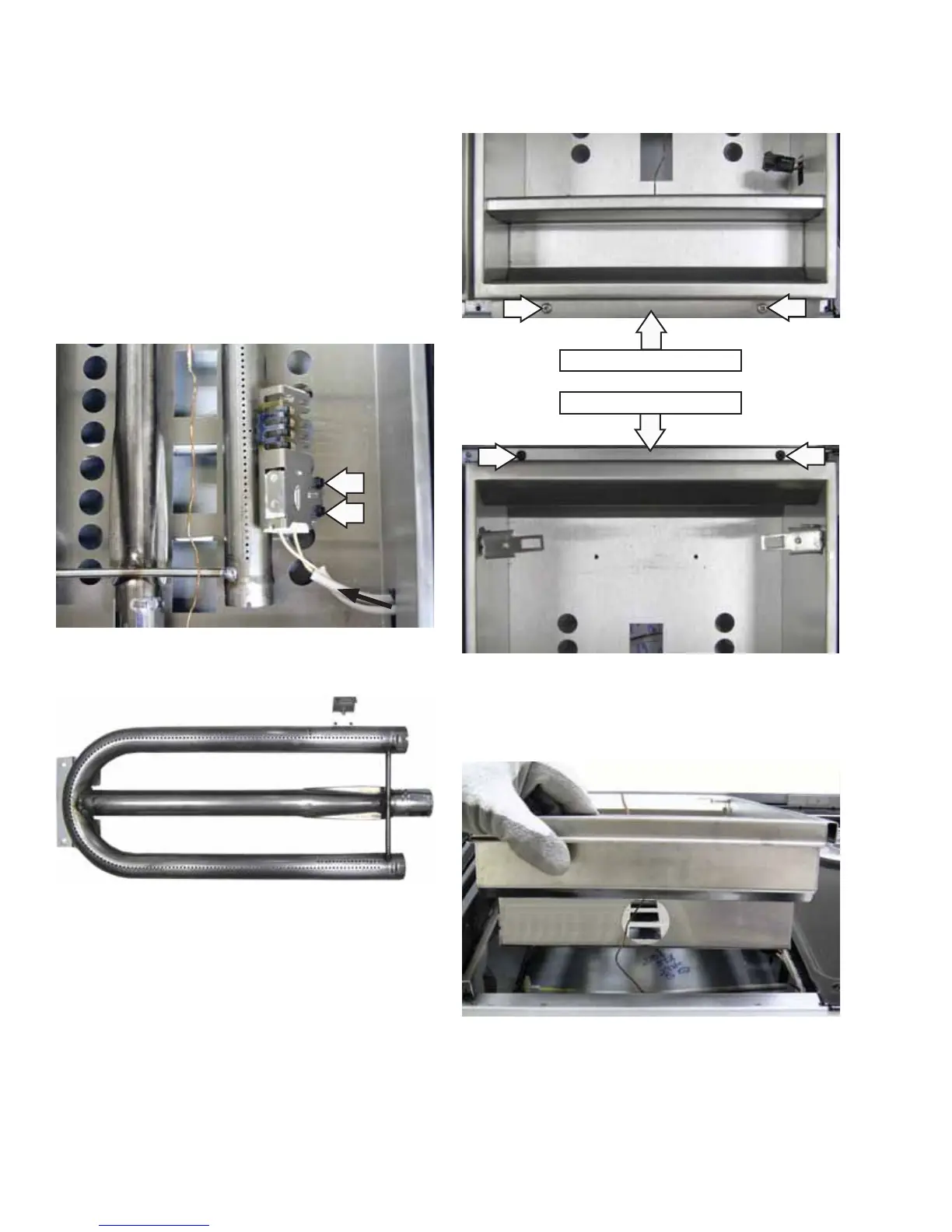

Griddle Burner Removed
13. Remove the 2 Phillips-head screws from the
front and the 2 Phillips-head screws from the
rear of the griddle burner box.
Front of Griddle Burner Box
Rear of Griddle Burner Box
15. Lift the burner box while carefully guiding the
igniter wire harness connector and control
capillary through their openings.
