GE P444

P
44x/EN ST/Hb6
Setting
(ST) 4
-74 MiCOM P40 Agile
P442, P444

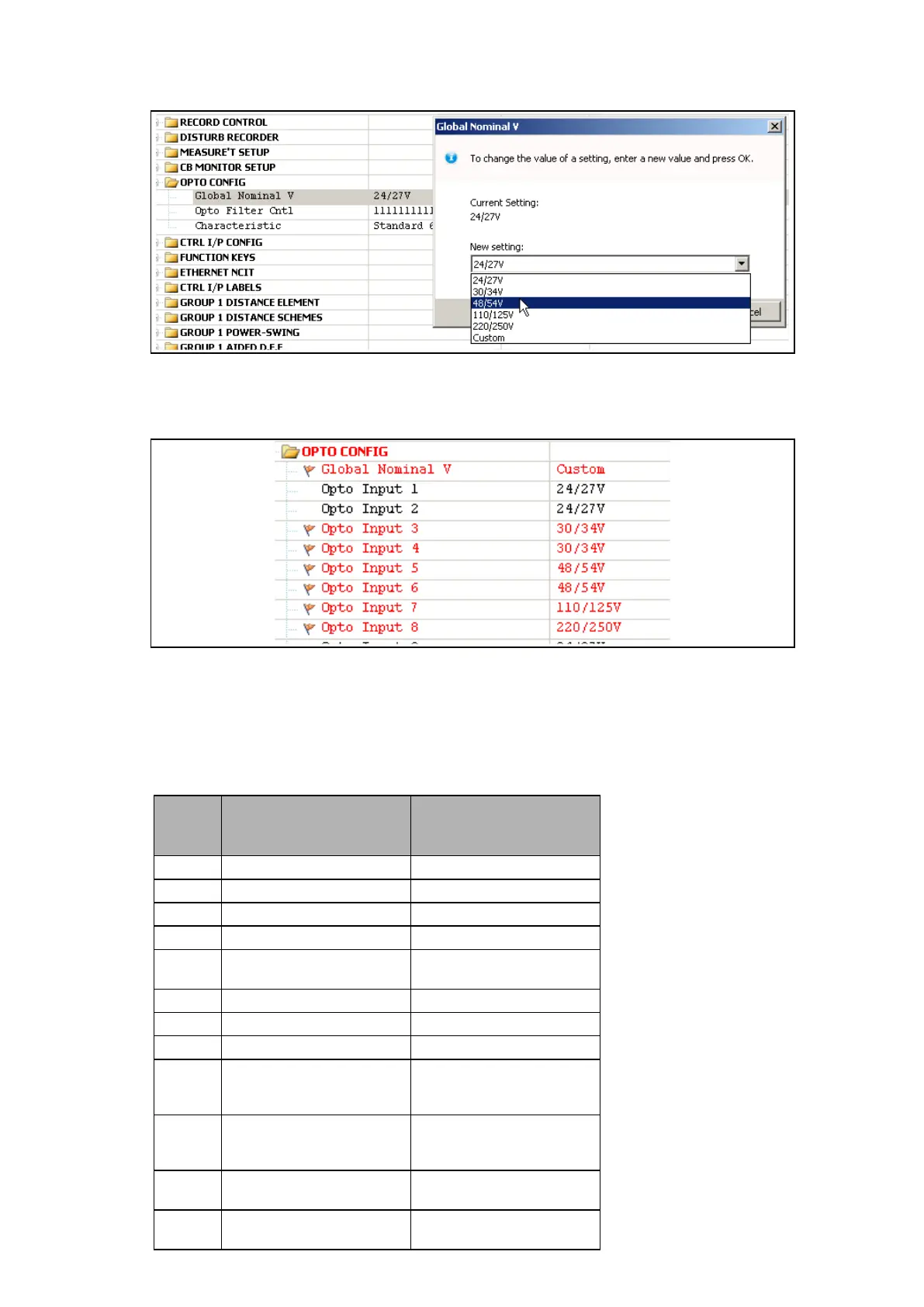

Or “Custom” can be selected in the menu to set a different voltage pick-up for any opto
inputs:
The default mappings for each of the inputs are shown in section P44x/EN PL.
4.3 Relay output contact mapping
The default mappings and conditioning for each of the relay output contacts are shown in the
following table (PSL are equivalent for 442/444):
Relay
Contact
N°
P442 Relay P444 Relay
1 TripA+B+C & Z1 [straight] TripA+B+C & Z1 [straight]
2 Any Trip Phase A [straight] Any Trip Phase A [straight]
3 Any Trip Phase B [straight] Any Trip Phase B [straight]
4 Any Trip Phase C [straight] Any Trip Phase C [straight]
5
Signal send (Dist. or DEF)
[straight]
Signal send (Dist. or DEF)
[straight]
6 Any Protection Start [straight] Any Protection Start [straight]
7 Any Trip [straight] Any Trip [straight]
8 General Alarm [straight] General Alarm [straight]
9
DEF A+B+C Trip + IN>1Trip
+ IN>2Trip
[straight]
DEF A+B+C Trip + IN>1Trip
+ IN>2Trip
[straight]
10
Dist. Trip &Any
Zone&DistUnb CR
[straight]
Dist. Trip &Any
Zone&DistUnb CR
[straight]
11
Autoreclose lockout
[straight]
Autoreclose lockout
[straight]
12
Autoreclose 1P+3P cycle in
progress [straight]
Autoreclose 1P+3P cycle in
progress [straight]
